BS EN 50214 H05VVH6-F 24 Core PVC Flat Elevator Cable

 China BS EN 50214 H05VVH6-F 24 Core PVC Flat Elevator Cable supplier

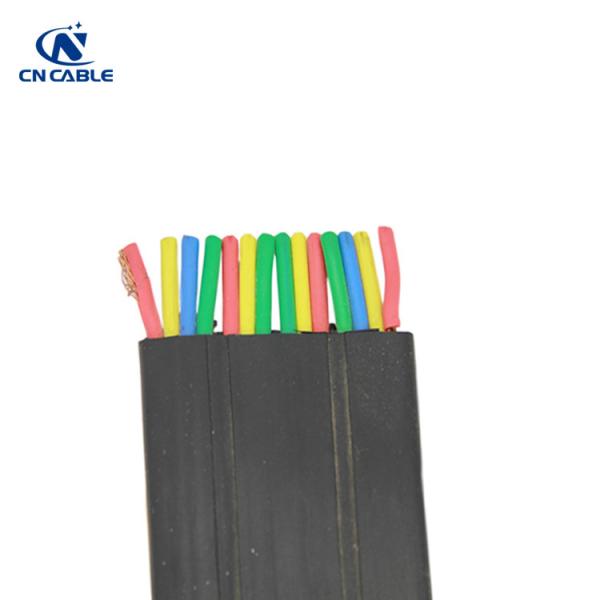

BS EN 50214 H05VVH6-F 24 Core PVC Flat Elevator Cable image

Get a Quote Email to us

Model Number :Flat Cable
Place of Origin :Henan, China (Mainland)
MOQ :500 Meter/Me
Payment Terms :L/C, T/T
Packaging Details :Iron-wooden drum
Certification :CE, ISO9001
Supply Ability :200km/month
Delivery Time :1-4 weeks
Standard :BS EN 50214 VDE-0281 Part 404 UL62
Conductor :Flexible bare or tinned copper wire , class 5
Insulation :PVC Compound T12
Outer sheath :PVC Compound, TM2
Core color code :according to VDE 0293
Jacket color :Black or others as per requirements

H05VVH6-F, H07VVH6-F 3 4 5 6 8 9 14 16 18 20 24 Core PVC Flat Cable Elevator Cable

Flat Rubber Pump Cable

Product Description
Product Description        Contact us

Application:

These cables are used for applications with medium mechanical stresses and sharp bending in one place,such as festoons systems on handling equipment as overhead cranes.

They are suitable for use in dry, damp and wet rooms as power and control cable.



Standard:

BS EN 50214 VDE-0281 Part 404 UL62



Cable Construction:

Conductor: Flexible bare or tinned copper wire , class 5



Technical Characteristics:

Rated voltage: 300/500V (H05VVH6-F) ; 450/700V (H07VVH6-F)





Product date sheet





H05VVH6-F



Core No. Conductor size Conductor Insulation Cable dimension Approx. Cable weight
Single wire dia. Approx. Diameter Nominal thickness Width Height
pcs mm2 mm mm mm mm mm kg/km
3 0.75 0.2 1.2 0.6 10.2 4.2 70
3 1 0.2 1.34 0.7 11.22 4.54 90
4 0.75 0.2 1.2 0.6 13.2 4.8 105
4 1 0.2 1.34 0.7 14.56 5.14 130
5 0.75 0.2 1.2 0.6 17 4.2 120
5 1 0.2 1.34 0.7 18.7 4.54 150
6 0.75 0.2 1.2 0.6 18.4 4.2 140
6 1 0.2 1.34 0.7 20.44 4.54 170
8 0.75 0.2 1.2 0.6 23.2 4.2 180
8 1 0.2 1.34 0.7 25.92 4.54 220
9 0.75 0.2 1.2 0.6 26.6 4.2 210
9 1 0.2 1.34 0.7 29.66 4.54 260
14 0.75 0.2 1.2 0.6 30 4.2 250
14 1 0.2 1.34 0.7 33.4 4.54 320
16 0.75 0.2 1.2 0.6 34.8 4.2 290
16 1 0.2 1.34 0.7 38.88 4.54 370
18 0.75 0.2 1.2 0.6 39.6 4.2 330
18 1 0.2 1.34 0.7 44.36 4.54 420
20 0.75 0.2 1.2 0.6 55 4.2 450
20 1 0.2 1.34 0.7 61.8 4.54 560
24 0.75 0.2 1.2 0.6 56 4.2 470
24 1 0.2 1.34 0.7 73.76 4.54 670



H07VVH6-F



Core No. Conductor size Conductor Insulation Cable dimension Approx. Cable weight
Single wire dia. Approx. Diameter Nominal thickness Width Height
3 1.5 0.25 1.6 0.8 12.6 5.2 120
3 2.5 0.25 2.1 0.8 14.7 5.7 160
4 1.5 0.25 1.6 0.8 16.4 5.6 170
4 2.5 0.25 2.1 0.8 18.4 6.1 220
5 1.5 0.25 1.6 0.7 20 5 190
5 2.5 0.25 2.1 0.8 25.1 5.7 285
6 1.5 0.25 1.6 0.8 23.2 5.2 230
6 2.5 0.25 2.1 0.8 27.3 5.7 320
8 1.5 0.25 1.6 0.8 29.6 5.2 305
8 2.5 0.25 2.1 0.8 34.7 5.7 420
9 1.5 0.25 1.6 0.8 33.8 5.2 350
9 2.5 0.25 2.1 0.8 39.9 5.7 490
14 1.5 0.25 1.6 0.8 38 5.2 430
14 2.5 0.25 2.1 0.8 45.1 5.7 610
16 1.5 0.25 1.6 0.8 44.4 5.2 505
16 2.5 0.25 2.1 0.8 52.5 5.7 710
18 1.5 0.25 1.6 0.8 50.8 5.2 570
18 2.5 0.25 2.1 0.8 59.9 5.7 800
20 1.5 0.25 1.6 0.8 71 5.2 760
20 2.5 0.25 2.1 0.8 83.6 5.7 1050
24 1.5 0.25 1.6 0.8 84.8 5.2 907
24 2.5 0.25 2.1 0.8 99.9 5.7 1250
