BS Standard 400mm2 ACSR Zebra Conductor No Insulation High Voltage Simple Structure

BS Standard 400mm2 ACSR Zebra Conductor No Insulation High Voltage Simple Structure image

Get a Quote Email to us

Brand Name :
Tano Cable

Model Number :
ACSR

Certification :
CE, ISO, CE

Place of Origin :
China

MOQ :
10000 meter

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union, D/A, MoneyGram

Supply Ability :
2000 Km per month

Delivery Time :
5-20 days

Packaging Details :
reels drums

Application :
Overhead,overhead transmission line,power transmission lines

Type :
High Voltage,AAC AAAC ACSR ACAR

Insulation material :
No insulation

Sample :
Free

Service :
OEM & ODM service is provided,professional

Sheath Material :
None

BS Standard 400mm2 ACSR Zebra Conductor No insulation High Voltage

BS Standard 400mm2 ACSR Zebra Conductor High Quality Cable

Applications:
Conductor(AAC,AAAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

STANDARD:

GB/T 1179-2008, IEC61089:1991

ACSR Technical Characteristics Based on Standard BS 215-2

Code name	Nominal aluminium area	Stranding and wire diameter		Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	Nominal aluminium area	Al	Steel	Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	mm2	No./mm		mm2	mm2	mm	kg/km	Ω/km	kN
RABBIT	50	6/3.35	1/3.35	52.88	61.7	10.05	214	0.5426	18.35
DOG	100	6/4.72	7/1.57	105	118.5	14.15	394	0.2733	32.7
WOLF	150	30/2.59	7/2.59	158.1	194.9	18.13	726	0.1828	69.2
DINGO	150	18/3.35	1/3.35	158.7	167.5	16.75	506	0.1815	35.7
LYNX	175	30/2.79	7/2.79	183.4	226.2	19.53	842	0.1576	79.8
ZEBRA	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	0.0674	131.9

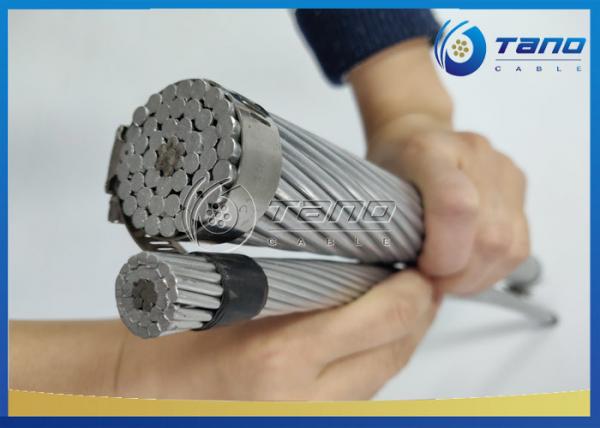

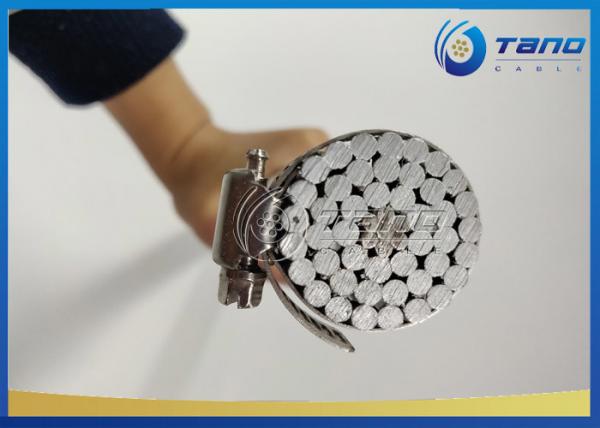

Product structures

Packing

Steel wooden drum
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:

Tianjin, Qingdao, or other ports as per your requireents.

We are China BS Standard 400mm2 ACSR Zebra Conductor No Insulation High Voltage Simple Structure manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
