BS6004 624-Y copper wire PVC insulated PVC sheathed Flat Twin and Earth BVVB electrical cable

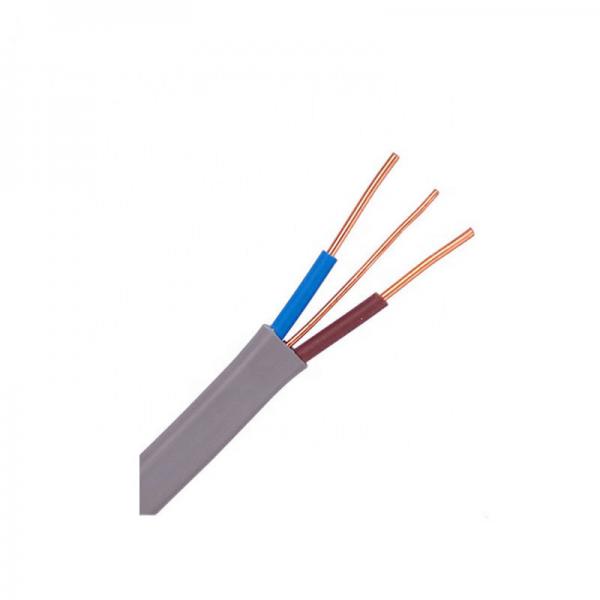

BS6004 624-Y copper wire PVC insulated PVC sheathed Flat Twin and Earth BVVB electrical cable image
Brand Name :
JHY CABLE
Model Number :
BVVB cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 kilometer/ day
Delivery Time :
7~15 working days
Packaging Details :
100 meters per roll or according to the customer’s request.
Conductor :
Solid or stranded high purity copper
No of Core :
2C+E, 3C+E
Insulation :
70℃PVC
Color :
brown , blue
Sheath :
70℃PVC
Sheath Color :
grey
Rated Voltage :
300/500V
Operating Temperature :
-15℃-70℃
Standard :
BS 6004
Application :
Indoor, Construction, Building
BS6004 624-Y copper wire PVC insulated PVC sheathed Flat Twin and Earth BVVB electrical cable
Production Description:
1. Product Structure
| Constructions | Conductor |
Copper conductor according to BS EN 60228 (previously BS 6360)
1mm² to 2.5mm²: Class 1 solid conductor
4mm² to 16mm²: Class 2 stranded conductor
|
|
Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper conductor
4mm² to 16mm²: Class 2 stranded copper conductor
|
||
| Insulation |
PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363
|
|
| Sheath |
PVC (Polyvinyl Chloride) Type 6 according to BS 7655
|
|
| Sheath Color | Grey | |
| Standard | BS 6004:2000 | |
| Application |
Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue.Suitable for laying in conduit or trunking where mechanical
protection is required.
|
|
2. Product Characteristics
- Voltage Rating (Uo/U) : 300/500V
- Temperature Rating : Max: +70ºC
- Short Circuit : +160°C
- Minimum Bending Radius : 6 x overall diameter
- Core Identification : Twin : Brown Blue & bare earth .
3. Product Specifications
|
Nominal Crosssection (mm2) |
Structure (No./mm) |
Earth structure (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
| 2×1.0+E | 1×1.13 | 1×0.85 | 0.60 | 0.90 |
| 2×1.5+E | 1×1.38 | 1×1.13 | 0.70 | 0.90 |
| 2×2.5+E | 1×1.78 | 1×1.38 | 0.80 | 1.00 |
| 2×4.0+E | 1×2.25 | 1×1.78 | 0.80 | 1.00 |
| 2×6.0+E | 1×2.76 | 1×1.78 | 0.80 | 1.10 |
4. Application
These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications
5. Product Image
Product Advantage
Product Package
6. Product standard
GB/T 5023, IEC 60227,TIS 11 part 3-2553
7. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
8. Company information
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. Email: [email protected] Website: Http://www.sz-hy.cn |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China BS6004 624-Y copper wire PVC insulated PVC sheathed Flat Twin and Earth BVVB electrical cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
