Building Armoured XLPE Insulated Power Cable NH-YJV22 16mm 35mm Electric Copper Conductor

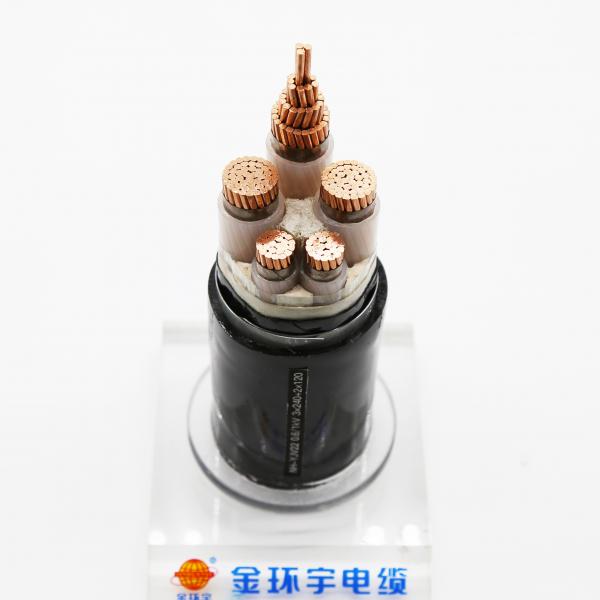

Building Armoured XLPE Insulated Power Cable NH-YJV22 16mm 35mm Electric Copper Conductor image
Brand Name :
JHY CABLE
Model Number :
YJV power cable
Certification :
CE/CB/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or according to the customer’s request.
Conductor :
Pure annealed copper
Conductor shape :
Round or sector
Insulation :
XLPE
Amoured :
non-armour or STA armoured
Sheath :
PVC sheath
Color :
black or customized
Voltage :
0.6/1KV or below
Package :
Wooden reel
Feature :
NH ZR Fire-Resistant
Application :
Antiflaming,Fire resistance,LSZH power cable
building NH-YJV22 16mm 35mm power electric cable copper conductor XLPE insulation armoured cable
Production Description:
1. Specification
- U0/U: 0.6/1kV
- Standard applied: IEC 60502, BS6746
- Max working temperature: 70 or 90°C
- Conductor: Class 2 stranded plain copper conductors
- Insulation: PVC, XLPE
- Cross section area: 1.5mm2-630mm2
- Bedding: PVC bedding
- Armour: Stainless steel wire / Steel Tape
- Sheath: PVC Sheath
- Color: Black,or as per request
- Packed in drum or as per request
2. Product Technical Parameter
| Type |
Nominal cross section (mm2) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Current rating in air 30℃ (A) |
Current rating buried 20℃ (A) |
Reference weight (kg/km) |
| YJV | 5×4 | 0.7 | 1.8 | 38 | 48 | 345 |
| YJV | 5×6 | 0.7 | 1.8 | 48 | 60 | 451 |
| YJV | 5×10 | 0.7 | 1.8 | 66 | 82 | 688 |
| YJV | 5×16 | 0.7 | 1.8 | 89 | 107 | 1011 |
| YJV | 5×25 | 0.9 | 1.8 | 118 | 138 | 1553 |
| YJV | 5×35 | 0.9 | 1.8 | 147 | 167 | 2071 |
| YJV22 | 5×4 | 0.7 | 1.8 | 38 | 46 | 520 |
| YJV22 | 5×6 | 0.7 | 1.8 | 48 | 58 | 645 |
| YJV22 | 5×10 | 0.7 | 1.8 | 66 | 79 | 920 |
| YJV22 | 5×16 | 0.7 | 1.8 | 90 | 103 | 1276 |
| YJV22 | 5×25 | 0.9 | 1.8 | 119 | 134 | 1871 |
| YJV22 | 5×35 | 0.9 | 1.9 | 147 | 162 | 2742 |
3. Characteristics
XLPE insulated steel wire armoured power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature.
4. Application
Used for power transmission and distribution line with voltage rated at 35kV and bellow. Compared with PVC insulated power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.
5. Product Image
Product Package
6. Product standard
IEC 60502, GB/T 12706, BS 7870
7. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
