BVR Multi Core PVC Insulated Cable For Power Distribution Cabinet

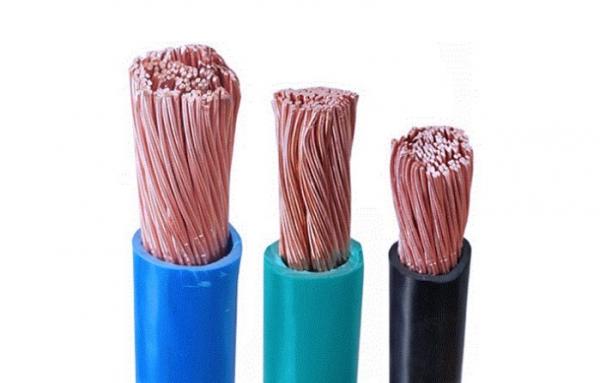

BVR Multi Core PVC Insulated Cable For Power Distribution Cabinet image
Brand Name :
Nuoxing
Model Number :
BVR
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000
Price :
1-100
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Product Name :
PVC Insulated Cable For Power Distribution Cabinet
Core :
Copper
Insulation material :
PVC
Voltage :
450/750V
Jacket :
PVC
Application :
Power Distribution Cabinet
Multicore Copper Core PVC Insulated Cable For Power Distribution Cabinet
Parameter:
Product structure: conductor + insulation. The main conductor material is mostly oxygen-free copper, which is composed of multiple strands of copper wire, and the insulation is PVC;
Executive standard: JB8734-2012/GB5023-2008;
Quality standard: 3C certification;
Rated voltage: The wire is immersed in water for 1 hour, and withstands AC 50Hz2500V (450/750V), 2000V (300/500V) voltage test for 5 minutes without breakdown.
Working temperature: The maximum temperature of normal working should not exceed 70℃, the maximum working temperature of BVR-105 is 105℃, and the laying temperature of wires should not be lower than 0℃;
Allowable bending radius: not less than 4D if the outer diameter of the wire (D) is less than 25mm; not less than 6 (D) if the outer diameter (D) of the wire is 25mm and above.
Color: red, yellow, blue, green, black, brown, yellow-green, white, etc., can be customized according to requirements;
Purpose: It is suitable for lines of power, household electrical appliances, instruments and telecommunications equipment with AC rated voltages of 450/750V and below, and is mostly used in various mechanical equipment, with strong flexibility.
Specificaiton:
| Product name | PVC Insulated Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 450/750V |
| Conductor material | Copper/Aluminum |
| Insulation Material | PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
|
Nominal cross section(mm2)
|
Core structure/wire diameter(mm)
|
Reference weight(kg/km)
|
Average outer diameter upper limit(mm)
|
Conductor resistance at 20℃≤ (Ω/km)
|
|
1.0
|
~
|
~
|
~
|
~
|
|
1.5
|
~
|
~
|
~
|
~
|
|
2.5
|
19/0.41
|
34.7
|
4.2
|
7.41
|
|
4
|
19/0.52
|
51.4
|
4.8
|
4.61
|
|
6
|
19/0.64
|
73.6
|
5.6
|
3.08
|
|
10
|
49/0.52
|
129
|
7.6
|
1.83
|
|
16
|
49/0.64
|
186
|
8.8
|
1.20
|
|
25
|
98/0.58
|
306
|
11.0
|
1.15
|
|
35
|
133/0.58
|
403
|
12.5
|
0.868
|
|
50
|
133/0.68
|
553
|
14.5
|
0.641
|
|
70
|
189/0.68
|
764
|
16.5
|
0.443
|
PVC Insulated Cable
We are China BVR Multi Core PVC Insulated Cable For Power Distribution Cabinet manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: BVR PVC Insulated Cable, Multi Core Pvc Insulated Cable, Multicore PVC Insulated Cable, PVC Insulated CableSimilar Or Related
