CAAI 0,6/1KV 2x16mm2+NA1x25mm2 XLPE Insulated Cable

 China CAAI 0,6/1KV 2x16mm2+NA1x25mm2 XLPE Insulated Cable supplier

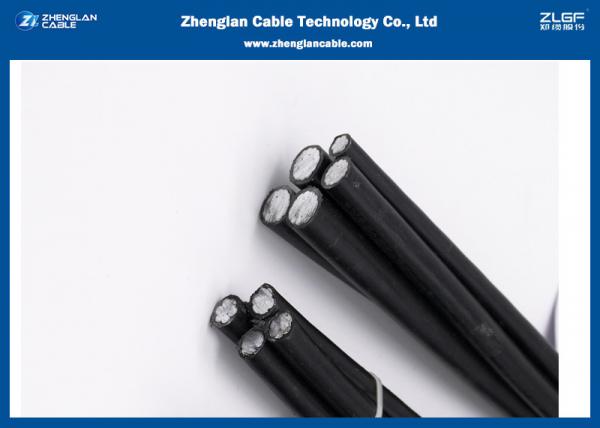

CAAI 0,6/1KV 2x16mm2+NA1x25mm2 XLPE Insulated Cable image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
Service Drop Cable

Certification :
3C,ISO 9001:2015,ISO 14001:2005

Place of Origin :
Henan, China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
T/T

Supply Ability :
100Km/Month

Delivery Time :
15-18 days

Packaging Details :
Wooden case, wooden-steel case, coil or plastic drumor customized

Conductor Material :
Aluminum

Insulation Material :
black XLPE

Application :
Overhead

Quality :
100% test

Standard :
IEC60502-1

structure :
AL/XLPE

Name :
CAAI 0,6/1 kV 2x16mm2+NA 1x25mm2 self-supporting XLPE insulated cable AAAC Covered Neutral

Voltage :
0.6-1kv

CAAI 0,6/1 kV 2x16mm2+NA 1x25mm2 self-supporting XLPE insulated cable AAAC Covered Neutral

Aerial Bundle Cables are cables for overhead line power are used in rural power distributing some countries, they are more commonly used in temporary power installations such as on construction sites. These cables usually comes with combining multiple single core cables together. Aerial Bundle Cables usually used in temporary power distribution to street lighting and secondary pole-to-pole service cables, they are lightweight stranded aluminium conductors, both single core and multi-cores.

CAAI 0,6/1 kV 2x16mm2+NA 1x25mm2 self-supporting XLPE insulated cable AAAC Covered Neutral construction
1. Conductor: Compact aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC – All Alloy Aluminium 6201 – XLPE.

0.6 / 1 kv AL / XLPE 2x25mm2 aerial bunded cable overhead insulated cable Application:
For urban and rural overhead secundary distribution networks.

Marking: INDECO S.A. CAAI 0,6/1 kV – (Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) – Year – Sequential length

Reference standard

IEC 60228: Conductors of insulated cables.
NTCRE 010-03: Technical Specification – XLPE insulated pre-assembled aluminum cable..
IEC 60811-201: Measurement of insulation thickness.

Electrical characteristics

Operating voltage 1.1 kV;

Dielectric strength 3.5 kV

Time of application Dielectric strength core to screen DC 5 min.

CAAI 0,6/1 kV 2x16mm2+NA 1x25mm2 self-supporting XLPE insulated cable AAAC Covered Neutral ​ parameters

CAAI 0,6/1 kV AAAC Covered Neutral without Public Lighting
Nb. of cor es Phase Cond. Cross Section [mm²]
aluminium wires
Phase conductor diameter(mm) Min Insulation thickness(mm) Neutral conductor MIn.Insulat.Thick of Neutral messenger(mm) Nom. outer diam(mm) Approx. weight [kg/km]
sectional area(mm2) conductor diameter(mm)
1 16 7 5 1.15 25 6.4 1.15 16.2 168
1 25 7 5.8 1.15 25 6.4 1.15 17 196
2 16 7 5 1.15 25 6.4 1.15 17.3 236
2 25 7 5.8 1.15 25 6.4 1.15 18.2 291
2 35 7 6.9 1.15 25 6.4 1.15 19.7 354
2 35 7 6.9 1.15 50 9.1 1.53 22.8 453
2 50 19 8.1 1.53 35 7.6 1.15 23.7 489
2 50 19 8.1 1.53 50 9.1 1.53 25.3 554
2 70 19 9.8 1.53 50 9.1 1.53 27.7 692
3 16 7 5 1.15 25 6.4 1.15 18.7 304
3 25 7 5.8 1.15 25 6.4 1.15 20.2 386
3 25 7 5.8 1.15 35 7.6 1.15 20.8 420
3 35 7 6.9 1.15 25 6.4 1.15 22.2 480
3 50 19 8.1 1.53 35 7.6 1.15 26.7 666
3 70 19 9.8 1.53 50 9.1 1.53 31.2 939
3 70 19 9.8 1.53 70 10.7 1.53 32.0 1006
3 95 19 11.5 1.53 50 9.1 1.53 34.4 1186
3 95 19 11.5 1.53 70 10.7 1.53 35.3 1253
3 120 19 12.8 2.04 70 10.7 1.53 39.7 1539
3 185 37 16 2.04 50 9.1 1.53 45.0 2074
3 240 37 18.4 2.04 50 9.1 1.53 49.4 2591

CAAI 0,6/1 kV 2x16mm2+NA 1x25mm2 self-supporting XLPE insulated cable AAAC Covered Neutral ​ images

CCAAI 0,6/1 kV 2x16mm2+NA 1x25mm2 self-supporting XLPE insulated cable AAAC Covered Neutral ​​ packages

About Zhenglan Cable Technology CO., Ltd.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.

CAAI 0,6/1 kV 2x16mm2+NA 1x25mm2 self-supporting XLPE insulated cable AAAC Covered Neutral ​ FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
For ABC cable MOQ is 1000m.

We are China CAAI 0,6/1KV 2x16mm2+NA1x25mm2 XLPE Insulated Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
