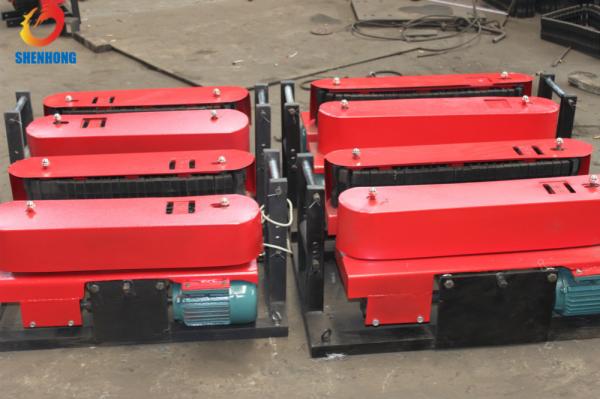

Cable Installation Tools Cable Pulling Machine Conveyor DSJ-180 Electric Engine Machine
Cable Installation Tools Cable Pulling Machine Conveyor DSJ-180 Electric Engine Machine image
Brand Name :
Shenhong
Model Number :
DSJ180
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
US $1180~1500
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10 work days after deposit
Packaging Details :
Export case
Type :
Cable Conveyor
Power :
1.5KW*2
Dimension(L*W*H) :
1000*530*400(mm)
Weight（mm） :
200
Application cable diameter(mm) :
25~180
Pulling Force(KN) :
9
Speed(m/min) :
6
Cable Conveyor DSJ-180 Electric Cable Pulling Winch Machine For Cable Installation
Quick Detail
1. Pulling Force 900kg
2. Pulling Speed:6m/min
3. Electric engine 1.5KWx2
4. Weight:200kg
Application
220V 380V Eletric Cable Laying Machine/cable winch we manufactured, is the ideal machine of cable transmission used in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Advantages
1. Saving a lot of labor
2. Improving working conditions
3. Reducing labor intensity
4. Improving work efficiency
5. Ensuring safety
Component
1. Conveyor
Conveyor is the main part of the equipment, which consists of the left and the right transmission parts, electric gearbox, adjusting mechanism, sprocket, bracket cover , etc.
2. Pulley
Pulley is mainly used to support cable, in order to reduce the friction when transmitting cable, pulley mechanism can be easily fixed in cable bridge frame or on the ground, as it does not need to be fixed.
3. Guide pulley
For guiding cable at turning, and ensuring that the bending radius in the allowed range.
4.Control panel
The control panel is the main equipment of electrical control and it can control the ten conveyors forward, backward, stop action at the same time.
5. Cable bracket
Cable bracket is jack type structure, landing on the rise and fall of a jack to lift or cable, which can bear 7-20 tons.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 – 180 mm | Φ30 – 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
We are China Cable Installation Tools Cable Pulling Machine Conveyor DSJ-180 Electric Engine Machine manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
