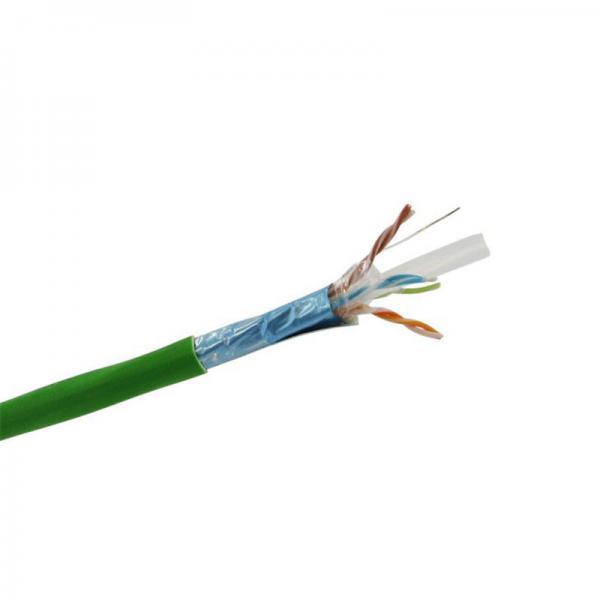

Cat 6 shielding communication cable 8 core pure copper conductor network cable of CE RoHS standard
Cat 6 shielding communication cable 8 core pure copper conductor network cable of CE RoHS standard image
Brand Name :
JHY CABLE
Model Number :
network cable
Certification :
CE ROHS ISO9001
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxes
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
305 meters per box or according to the customer’s request.
Conductor :
Bare copper
Pairs :
4 Pairs
AWG (Gauge) :
23AWG/24AWG/26AWG
Insulation Material :
HD-PE
Shield :
Al Foil+braiding
Jacket Material :
PE LSZH PVC
Jacket Color :
Black, White, Blue, Grey, Orange available
Length :
305m carton box
Application :
Telecommunication, CCTV, CCAV
Cat 6 shielding communication cable 8 core pure copper conductor network cable of CE RoHS standard
Production Description:
1. Production Parameters:
| Conductor material | Pure copper, CCA |
| Conductor diameter | Solid one: 0.5mm, 0.56mm, 0.57mm |
| Stranded one: 23AWG, 24 AWG,28AWG | |
| Num of Conductor | 4P |
| Insulation material | PE , HDPE |
| Insulation diameter | 0.9±0.02mm |
| Jacket material | PVC, ROHS PVC, LSZH |
|
Item (n) |
structure (mm) |
Insulation Thickness (mm) |
Approx overall dia. (mm) |
| FTP Cat 6 | 4×0.50 | 0.98 | 7.3 |
| FTP Cat 6 | 4×0.55 | 1.03 | 7.4 |
| FTP Cat 6 | 4×0.57 | 1.05 | 7.4 |
2. Core Identification
3. Production Features
- The transmission frequencies of the six types of cables are 1 MHz to 250MHz.
- The PS-ACR of the six types of cabling systems at 200 MHz should have a large margin, which provides two times the bandwidth of the five types. The transmission performance of the six types of cables is much higher than that of the five types of standards, which is suitable for applications with transmission rates higher than 1 Gbps.
- Six types of wire are made of 23AWG pure oxygen-free copper as conductor, which has the characteristics of oxidation resistance and long service life.
4. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
5. Tabular data
Construction
| 1. Conductor material: |
Solid bare copper 0.55mm |
|
| 2. Insulation material: | HDPE | |
| 3. sheath material: | PVC sheath | |
| 4. Shield material | AL/TC/AM | |
| 5. Cross Separator | Environment protection PE | |
| 6. Drain wire | TC | |
| 7. Rip cord: | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 16.3 kg | 305 m per box | 42 x 42 x 24 |
Carton box |
6. Product Image
Product Package
Fluke Test Report
Product compare
Jinhuanyu product other products
7. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
8. Company information
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. Email: [email protected] Website: Http://www.sz-hy.cn |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China Cat 6 shielding communication cable 8 core pure copper conductor network cable of CE RoHS standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
