CFCC Carbon Fiber Aluminum Conductor Composite Core Working Temp 120℃ – 160℃

High Voltage Aluminium CFCC Carbon Fiber Composite Core Conductor

Quick Details

Packaging & Delivery

• Packaging Details: New wooden drum, Reel, Circle or according to customer's request
• Delivery Time: According to customer's request, usually 2-4 weeks.

Description

Aluminium Conductor Composite Core or ACCC is a type of "high-temperature low-sag" (HTLS) overhead power line conductor manufactured by more than 20 international conductor manufacturers. CTC Global (formerly Composite Technology Corporation) developed the patented technology. The ACCC conductor's composite core is manufactured according to ASTM B987 / B987M – 17 “Standard Specification for Carbon Fiber Thermoset Polymer Matrix Composite Core (CFC) for use in Overhead Electrical Conductors.”

It is able to carry approximately twice as much current as a conventional aluminium-conductor steel-reinforced cable (ACSR) cable of the same size and weight, making it popular for retrofitting an existing electric power transmission line without needing to change the existing towers and insulators.

In addition to the labor and materials savings, such an upgrade can be performed as a "maintenance and repair" operation, without the lengthy permitting process required for new construction.

ACCC is designed to operate continuously at elevated temperatures and has excellent sag characteristics through out the operating range. ACCC is the right choice if reconductoring of the existing lines are required to enhance the transmission capacity. This conductor offers Very loaw line losses and excellent self-damping properties.Because of it's high strength to weight ratio, ACCC can be used with long spans which brings down the cost of structures in new lines.

Specification

Carbon fiber composite core reinforced conductor mainly includes heat-resistant aluminum alloy conductor carbon fiber composite core reinforced and anneal shaped aluminum wire carbon fiber composite core reinforced, which have the advantages of excellent heat resistance performance, high tensile strength, low sag, small weight, corrosion resistance, low cost, etc. Therefore, the products can be widely used in the capacity expansion and reconstruction of old lines, construction of new lines and as bus of power stations. Besides, they are also suitable for lines with special climatic and geographical conditions such as large span, high falls, serious pollution, heavy icing areas, etc.

Structure

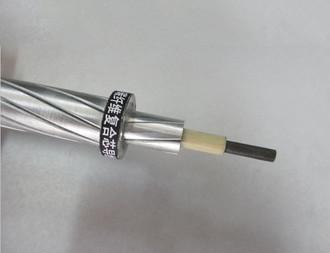

ACCC Conductor consists of a hybrid carbon and glass fiber core which is wrapped with trapezoidal shaped aluminum strands.

Characteristics

Compared with normal conductors, the ACCC conductor has the following advantages:

Increase line capacity:
ACCC conductor can carry up to twice the current of conventional steel-reinforced conductors due to its high temperature capability.
Mitigate thermal sag:
ACCC conductor’s carbon composite core has a much lower coefficient of thermal expansion compared to steel, aluminium, or other core materials.
Reduce line losses:
Under equivalent load conditions, ACCC conductor reduces line losses by 30 to 40% compared to steel-reinforced conductors of the same diameter and weight.
Improve system efficiency:
ACCC conductor’s additional annealed aluminium content improves conductivity and reduces line losses, which can improve overall system efficiency.

Decrease project costs:
ACCC conductor can reduce the cost of upgrading existing lines or new corridors due to its greater strength, reduced sag, and increased capacity.
Reduce generation requirements, conserve fuel & reduce emissions:
ACCC conductor’s ability to reduce line losses can provide significant reductions in fuel consumption and their associated emissions for fossil fuel sources or improve the overall efficiency and economic performance of renewable resources. Increased power delivery can also reduce the demand for new sources of energy.
Reduce electro magnetic field level:
ACCC conductor’s smaller thermal elongation coefficient may result in a reduction of the magnetic field under the line due to its maintaining greater clearance distance at the same current level.

Features

• Highly energy efficient and Cool
• Excellent strength to weight ratio
• High current carrying capacity
• Excellent sag characteristics
• Low wind and ice loading parameters
