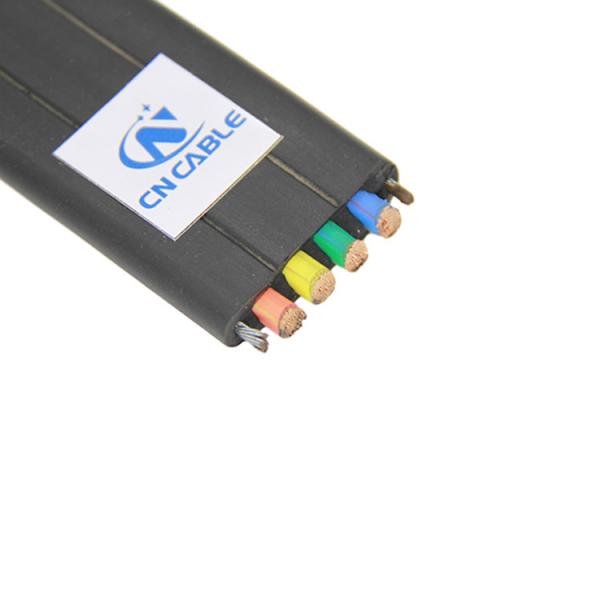

Class 5 Flexible Copper Flat Wire PVC Insulation Cable

 China Class 5 Flexible Copper Flat Wire PVC Insulation Cable supplier

Class 5 Flexible Copper Flat Wire PVC Insulation Cable image

Get a Quote Email to us

Model Number :Flat Cable
Certification :CE, ISO9001
Place of Origin :Henan, China (Mainland)
MOQ :500 Meter/Me
Payment Terms :L/C, T/T
Supply Ability :200km/month
Delivery Time :1-4 weeks
Packaging Details :Iron-wooden drum
Standard :BS EN 50214
Conductor :Flexible bare copper wire , class 5
Insulation :PVC Compound T12
Outer sheath :PVC Compound, TM2
Core color code :according to VDE 0293
Jacket color :Black or others as per requirements

H05VVD3H6-F flexible copper wire PVC Insulation flat wire cable

Flat Rubber Pump Cable

Product Description
Product Description        Contact us


These cables are Flat, flexible travelling cable for use in passenger and goods lifts (elevators). They are applicable for all control, measure and telecommunication systems and are suitable for dry and humid rooms.




BS EN 50214


Cable Construction:

Conductor: Flexible bare copper wire , class 5


Technical Characteristics:

Rated voltage: 300/500V



Product date sheet


Core No. Conductor size Conductor Insulation Cable dimension Approx. Cable weight
Single wire dia. Approx. Diameter Nominal thickness Width Height
pcs mm2 mm mm mm mm mm kg/km
20 0.75 0.2 1.2 0.6 61 4.2 450
24 0.75 0.2 1.2 0.6 72 4.2 470
14 1 0.2 1.34 0.7 41 4.54 320
18 1 0.2 1.34 0.7 47 4.54 420
24 1 0.2 1.34 0.7 74 4.54 670



Click for More Information



Packaging & Shipping
Packaging & Shipping        Contact us


Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping:  Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port

Company Information
Company Information        Contact us

1.10+ years experience of export business

2. Flexible business model ,rich customer groups

3 .Wide range of cable products , rich resources  in local market

4.Some Export Area: Australia, Bangladesh, Canada, Chile, CoteD`lvoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Iraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal, Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda,Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay,  Yemen, Zimbabwe, Zambia.



Certifications        Contact us



Our Services
Our Services        Contact us

1. Product consultation,analysis, design , production

2. Provide industry information, Product Training , Assist Product Marketing

3. Provide project supportsuch as tender assistant, cooperate visit customers , FAT support

4.Complete Quality systemand docs available, faster lead time, good quality, strong technical support, free samples

5. OEM service

6. Other services customized by clients

FAQ        Contact us

Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.


Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !


Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.


Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.

Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!


Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .


Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.


Other questions ? Welcome to contact us immediately !

Looking forward to cooperating with you


We are China Class 5 Flexible Copper Flat Wire PVC Insulation Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
