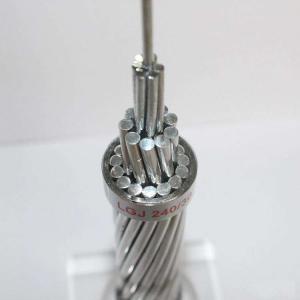

Concentric-Lay-Stranded ACAR Conductor ASTM Specifications B230, B398 And B524.
Made of round aluminum 1350-H19 (extra hard) and round aluminum 6201-T81 wires, ACAR is a concentric-laystranded conductor. There are single and multi-layer constructions for ACAR conductors. These options offer the current carrying capacity and requisite strength for the specified applications. ACAR conductors are stronger and have a greater ampacity than ACSR conductors for the same weight.
Product Name | Concentric-Lay-Stranded ACAR Conductor ASTM Specifications B230, B398 And B524. |
Conductor | Aluminum/Copper |
Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
Colors | Assorted upon request |
Voltage | 600-1000V, 1KV-35KV |
Application | Used as bare overhead conductor for power distribution lines |
Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
1.Standard
ASTM B524 ,B 230, B 398, IEC61089, etc Application
2.Construction
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer
3.Features
1. ACAR offers excellent balance mechanical and electrical properties.
2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.
3.It is a compromise choice between AAC,ACSR,and AAAC.
4.It has 1350 designates grade of pure aluminium.
5. It has 6201 designates aluminium alloy grade.
4.Part of ACAR(6201) conductors of ASTM sizes.
Size Kcmil | Stranding No.& Dia.(In.) | Cross Sectional Area(Square In.) | Nominal Conductor Dia. (In.) |
Nominal weight (Lbs/1000FT) |
Rated Strength ( Lbs) |
|||
1350 | 6201 | 1350 | 6201 | Total | ||||
503.6 | 15*0.1628 | 4*0.1628 | 0.3122 | 0.0833 | 0.3955 | 0.814 | 473 | 10500 |
587.2 | 15*0.1758 | 4*0.1758 | 0.3644 | 0.0971 | 0.4612 | 0.879 | 551 | 12200 |
649.5 | 18*0.1325 | 19*0.1325 | 0.2482 | 0.2620 | 0.5102 | 0.927 | 608 | 16600 |
653.1 | 12*0.1854 | 7*0.1854 | 0.3240 | 0.1890 | 0.5130 | 0.927 | 612 | 15400 |
739.8 | 18*0.1414 | 19*0.1414 | 0.2827 | 0.2983 | 0.5810 | 0.990 | 693 | 18800 |
853.7 | 30*0.1519 | 7*0.1519 | 0.5437 | 0.1268 | 0.6705 | 1.063 | 801 | 17500 |
853.7 | 24*0.1519 | 13*0.1519 | 0.4349 | 0.2356 | 0.6705 | 1.063 | 800 | 19300 |
927.2 | 24*0.1583 | 13*0.1583 | 0.4723 | 0.2559 | 0.7282 | 1.108 | 869 | 20900 |
5.Packaging and Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
We are China Concentric Lay Stranded ACAR Conductor ASTM Specifications B230 B398 And B524 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: ACAR Conductor, ASTM B230 acar conductor, ASTM B524 aluminium conductor alloy reinforced, Concentric Lay Stranded acar conductor
