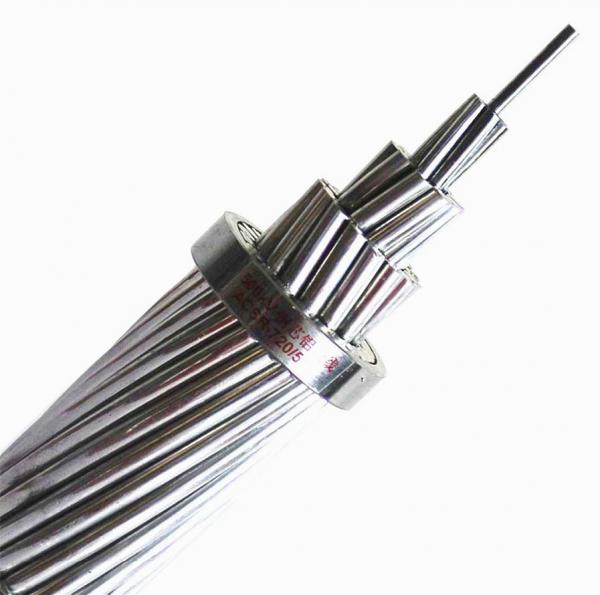

Concentric Stranded ACSR 1/0AWG RAVEN Aluminium Conductor Steel Reinforced

 China Concentric Stranded ACSR 1/0AWG RAVEN Aluminium Conductor Steel Reinforced supplier

Concentric Stranded ACSR 1/0AWG RAVEN Aluminium Conductor Steel Reinforced image

Get a Quote Email to us

Brand Name :
Sanwu

Model Number :
ACSR-001

Certification :
ISO CCC

Place of Origin :
Henan

MOQ :
1000M

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union, MoneyGram

Supply Ability :
200 tons per day

Delivery Time :
1-15days

Packaging Details :
New Wooden drum, reel, circle, or according to customers request.

Material :
aluminum 1350 Galvanized steel

Wires :
7stranded

Standard :
ASTM

Color :
Natural

Insulation :
Bare conductor

Original :
Luoyang, China

ACSR Rabbit conductor 50mm2 used in industrial electrical cable wire

Material Standard:

ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors

BS215-2 aluminum conductors steel-reinforced —For overhead power transmission

DIN48204 Steel reinforced aluminum stranded conductors

IEC209 Aluminum stranded conductor steel reinforced

We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC standards, etc.

ACSR Conductor

Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Poppy 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375

ACSR Conductor

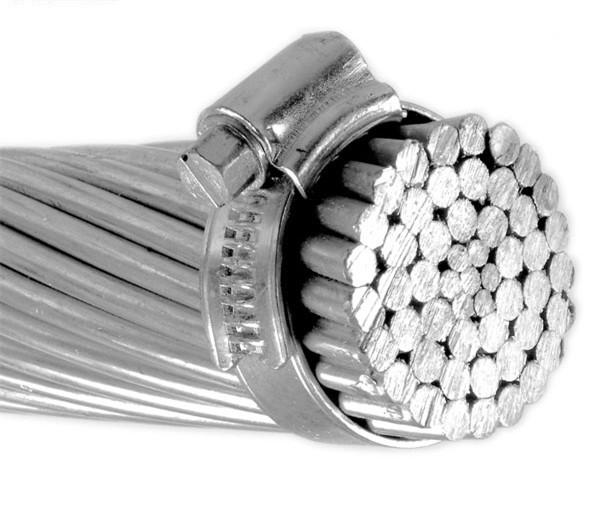

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products,please leave a message,and we will immediately answer your questions.

Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

We are China Concentric Stranded ACSR 1/0AWG RAVEN Aluminium Conductor Steel Reinforced manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
