Conductor Wire Rope Pulley Stringing Sitting and Hanging Type Dual-Use Stringing Block
Conductor Wire Rope Pulley Stringing Sitting and Hanging Type Dual-Use Stringing Block image
Brand Name :
Suntech
Model Number :
SHG
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
10 pcs
Price :
Get the lastest price
Payment Terms :
L/C, T/T,, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
9-15 days after payment
Packaging Details :
Exported Box and carton
Sheave :
Aluminum Alloy And Nylon
Type :
Skyward And Hook
Max :
2T
Model Name :
Stringing Blocks
Apply :
Overhead Line
Skyward and Hooked Conductor Wire Rope Pulley Stringing Sitting and Hanging Type Dual-Use Stringing Block
They have are used to support conductors,OPGW,ADSS, communicatio lines. The sheave of the pulley blocks are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel. All kinds of pulley blocks can be manufactured according to the customers's requirements. Product can be used in hanging type stringing block or skyward stringing block.
TECHNICAL DATA
| Item number | Model | Rated load (kN) | Outside diameter×width (mm) | Weight (kg) | Remark |
| 10261 | SHG-0.5 | 5 | φ80×50 | 2.1 | Aluminium sheave |
| 10263 | SHG-1 | 10 | φ160×40 | 3.2 | |
| 10264 | SHG-2 | 20 | φ120×58 | 3.6 | |
| 10271 | SHGN-0.5 | 5 | φ80×50 | 1.9 | Nylon sheave |
| 10272 | SHGN/0.5 | 5 | φ120×30 | 1.8 | |
| 10273 | SHGN-1 | 10 | φ160×40 | 2.6 | |
| 10274 | SHGN-2 | 20 | φ120×58 | 3.4 |
We are China Conductor Wire Rope Pulley Stringing Sitting and Hanging Type Dual-Use Stringing Block manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 2t Overhead Line Stringing Blocks, 2t Stringing Blocks, Skyward Hooked Stringing Blocks, Transmission Line Stringing ToolsSimilar Or Related
-

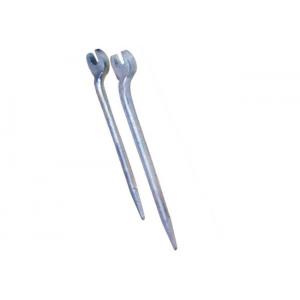

Construction Scaffold Open-End Wrench For Tightening Hexagonal Or Square Head Sharp Wrench
-
Optical Cable Grip OPGW Installation Tools 16KN For OPGW Overhead Line Construction
-

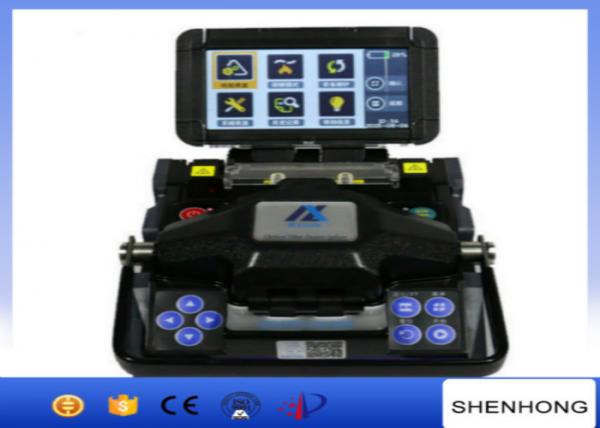

Fusion Splicer Machine Optical Fiber Fusion Splicer ALK-88 With Optic Fiber Cleaver
-
