Copper Conductor Class 2 1KV XLPE Insulated Power Cable

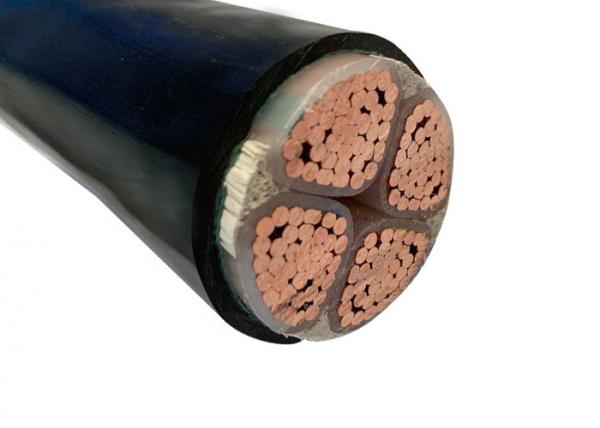

Copper Conductor Class 2 1KV XLPE Insulated Power Cable image
Brand Name :
SHANCABLE
Model Number :
YJV 0.6-1V
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Wooden Drum
Delivery Time :
10 Days
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Conductor :
Stranded Copper Conductor class2
Insulation :
XLPE Insulation
Sheath :
PVC or Flame-retardant PVC
Insulation Color :
Red,Yellow,Blue,Yellow/Green
Outer sheath Color :
Black
Test Voltage :
3.5KV/5mins
China Best Power Cable Manufacturer CU/XLPE/PVC-0.6/1KV 4C x 95 SQMM
Construction
Conductor : Stranded Copper Conductor class2
Insulation : XLPE Insulation
Sheath : PVC or Flame-retardant PVC
Insulation Color :Red,Yellow,Blue,Yellow/Green
Outer sheath Color:Black
Test Voltage :3.5KV/5mins
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502-1, ASTM,BS,JS,VDE
Cable Type:CU/XLPE/PVC-0.6/1KV 4C x 95 SQMM
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, KEMA and more others at request
Commercial Items: MOQ:500m
Price Term: FOB Shanghai or CIF as request.
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum or we can offer whole steel drum if requested by client.
Specifications
We are China Copper Conductor Class 2 1KV XLPE Insulated Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 1KV XLPE Insulated Power Cable, Class 2 XLPE Insulated Cable, Copper Conductor XLPE Insulated Cable, XLPE Insulated Power CableSimilar Or Related
