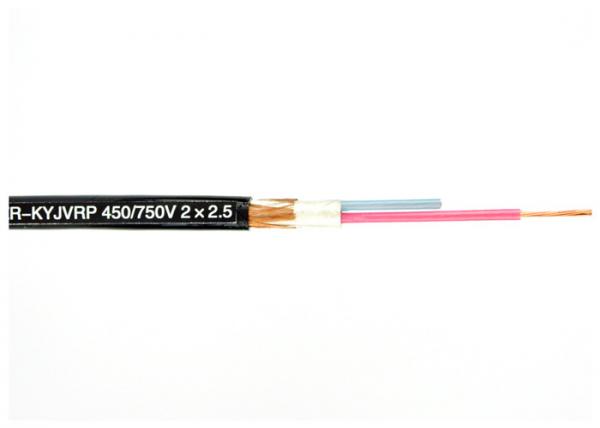

Copper Wire Screened Control Cables , XLPE Insulation Cable Eco Friendly
Copper Wire Screened Control Cables , XLPE Insulation Cable Eco Friendly image
Brand Name :
SHAN CABLE
Model Number :
KYJVRP
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
SHANGHAI CHINA
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
Wooden Steel Drums
Screen :
Copper Wire
Cores :
2 to 61
insulation :
XLPE
Conductor type :
CLass 5
Screen Type :
Brain
Bending radius :
12.O.D
Copper Wire Screened Control Cables , XLPE Insulation Cable Eco Friendly
Descriptions:
Conductor: Flexible Copper Conductor
Insualtion: XLPE
Screen: Copper Wire Brain Screen
Sheath: PVC
Operating characteristics
Rated voltage: U0 / U is 450 / 750V.
Conductor wire core long-term working temperature is 90 ℃.
Recommended cable bending radius as follows:
Non-armored cable should be not less than 6 times the cable diameter;
Armor or copper tape shielded cable, shall not be less than 12 times the cable diameter;
Shielded flexible cable, not less than 6 times the cable diameter
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for industrial and mining enterprises, energy and transportation sectors, for rated voltage 450/750 volts control, protection PVC insulated lines and other occasions, and PVC sheathed control cable.
Why Choose SHAN CABLE
Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:
High quality cable product with competitive price;
OEM cable product
Custom design per specific cable requirements and budgets;
Fast and on-time delivery of cable;
Flexible business deal;
Chief cable engineer with over 40 years' experience;
Harmonious colleague and customer relationship;
All cable products 100% Inspection;
Comprehensive after-sale service.
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Diameter of Copper Wire mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4×0.75 | 0.6 | 0.15 | 1.2 | 8.1 | 9.7 | 0.012 | 24.5 | 144 |
| 4×1 | 0.6 | 0.15 | 1.2 | 8.4 | 10.2 | 0.011 | 18.1 | 153 |
| 4×1.5 | 0.7 | 0.15 | 1.2 | 9.5 | 11.4 | 0.011 | 12.1 | 190 |
| 4×2.5 | 0.8 | 0.15 | 1.5 | 10.9 | 13.1 | 0.01 | 7.41 | 276 |
| 4×4 | 0.8 | 0.15 | 1.5 | 12.5 | 15.1 | 0.0085 | 4.61 | 367 |
| 4×6 | 0.8 | 0.15 | 1.5 | 13.6 | 16.5 | 0.007 | 3.08 | 467 |
| 4×10 | 1 | 0.2 | 1.7 | 17.1 | 20.7 | 0.0065 | 1.83 | 728 |
| 7×0.75 | 0.6 | 0.15 | 1.2 | 9.3 | 11.2 | 0.012 | 24.5 | 178 |
| 7×1.0 | 0.6 | 0.15 | 1.2 | 9.7 | 11.7 | 0.011 | 18.1 | 209 |
| 7×1.5 | 0.7 | 0.15 | 1.5 | 11 | 13.3 | 0.011 | 12.1 | 239 |
| 7×2.5 | 0.8 | 0.15 | 1.5 | 13.3 | 16.1 | 0.01 | 7.41 | 398 |
| 7×4 | 0.8 | 0.15 | 1.5 | 14.6 | 17.6 | 0.0085 | 4.61 | 528 |
| 7×6 | 0.8 | 0.2 | 1.5 | 16 | 19.4 | 0.007 | 3.08 | 717 |
| 7×10 | 1 | 0.2 | 1.7 | 20.7 | 25.1 | 0.0065 | 1.83 | 1145 |
| 10×0.75 | 0.6 | 0.15 | 1.5 | 11.3 | 13.7 | 0.012 | 24.5 | 214 |
| 10×1 | 0.6 | 0.15 | 1.5 | 12.5 | 15.1 | 0.011 | 18.1 | 300 |
| 10×1.5 | 0.7 | 0.15 | 1.5 | 14.2 | 17.2 | 0.011 | 12.1 | 367 |
| 10×2.5 | 0.8 | 0.15 | 1.7 | 16.5 | 20 | 0.01 | 7.41 | 572 |
| 10×4 | 0.8 | 0.15 | 1.7 | 18.6 | 22.5 | 0.0085 | 4.61 | 787 |
| 10×6 | 0.8 | 0.2 | 1.7 | 20.5 | 24.8 | 0.007 | 3.08 | 992 |
