Copper XLPE Sheath Split Concentric Cable 8/2AWG Power Distribution Network

 China Copper XLPE Sheath Split Concentric Cable 8/2AWG Power Distribution Network supplier

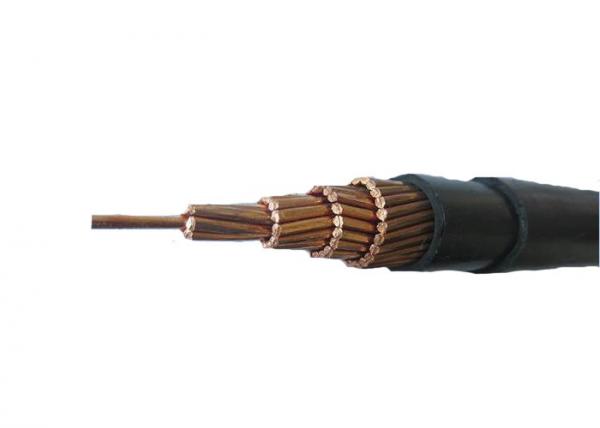

Copper XLPE Sheath Split Concentric Cable 8/2AWG Power Distribution Network image

Get a Quote Email to us

Brand Name :
CN Cable Group

Model Number :
Split Concentric Cable

Place of Origin :
Henan, China (Mainland)

MOQ :
200 Meter/Me

Price :
US $1-50 / Meters | 200 Meter/Meters (Min. Order)

Product name :
XLPE Sheath Split Concentric Cable

Conductor :
Copper

Insulation :
XLPE

Outer Sheath :
XLPE

Rated voltage :
0.6/1KV

Certificate :
ISO9001/ISO14001

Standard :
ASTM, IEC, BS,etc.

Copper XLPE Sheath Split Concentric Cable 8/2AWG Power Distribution Network

Application:

This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 70°C(PVC or PE Insulation) or 90 ºC(XLPE Insulation) and its voltage of service for all the applications is 600 V.

Applicable Standard:

We can produce according to standard ASTM, IEC, BS,etc

Characters:

1.Rated voltage: 0.6/1KV

2.Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.

Construction:

Concentric electrical cable Conductor

Plain copper or aluminum conductors, IEC 60228, solid or stranded versions, conductor types

10-16 mm² round, solid conductors .

10-25 mm², stranded conductor.

35-240 mm², sector shaped conductor, stranded

Electric Concentric Cable

Conductor Construction
Conductor Size Min Stranding No. Nominal Diameter Max. D.C. Resistance at 20℃
AWG/ kcmil mm2 mm mm Ω/KM
3 26.7 6 6.05 0.68509
2 33.6 6 6.81 0.54357
1 42.4 7 7.59 0.43099
1/0 53.5 7 8.53 0.34094
2/0 67.4 12 9.55 0.27082
3/0 85 15 10.7 0.21453
4/0 107 17 12.1 0.16854
250 127 18 13.2 0.14409
300 152 18 14.5 0.12029
350 177 24 15.6 0.10292
400 203 24 16.7 0.08909
450 228 30 17.8 0.07912
500 253 30 18.7 0.0714
550 279 34 19.7 0.06561
600 304 34 20.7 0.06015
700 355 34 22.3 0.05114
750 380 53 23.1 0.0476
800 405 53 23.8 0.04471
900 456 53 25.4 0.03956
1000 507 53 26.9 0.0357

Insulation, Metallic shield Dimension
Rated Circuit Voltage, Phase-to-Phase Conductor Size XLPE/TRXLPE Insulation Nominal Thickness Metal Screen
100 Percent Level 133 Percent Level 173 Percent Level Copper Tape
V AWG/kcmil mm mm mm mm
2001-5000 8-1000 2.3 2.3 3.6 0.06
1001-3000 3.6 3.6 3.6 0.06
5001-8000 6-1000 2.9 3.6 4.4 0.06
1001-3000 4.4 4.4 5.6 0.06
8001-15000 2-1000 4.4 5.6 6.6 0.06
1001-3000 5.6 5.6 6.6 0.06
15001-25000 1-3000 6.6 8.1 10.7 0.06
25001-28000 1-3000 7.1 8.8 11.3 0.06
28001-35000 1/0-3000 8.8 10.7 14.7 0.06
35001-46000 4/0-3000 11.3 14.7 19.1 0.06

Concentric Neutral Wire Size
AWG Size Nominal Diameter Nominal Area
mils mm (kcmil)
16 50.8 1.29 2.58
14 64.1 1.63 4.11
12 80.8 2.05 6.53
10 101.9 2.59 10.38
9 114.4 2.91 13.09
8 128.5 3.26 16.51

Full Neutral Concentric Copper Conductor
Conductor Size AWG/kcmil Concentric Conductor Minimum Number of Wires
Copper Aluminum 16AWG 14AWG 12AWG 10AWG 9AWG
4 10* 6
4 2 16* 10
3 1 20* 13
2 1/0 26* 16 10*
1 2/0 20* 13
1/0 3/0 25* 16 10*
2/0 4/0 32* 20* 13 10*
3/0 250 25* 16 13*
4/0 350 32* 20* 16

One-third Neutral Concentric Copper Conductor
Conductor Size Concentric Conductor Minimum Number of Wires
AWG/kcmil
Copper Aluminum 16AWG 14AWG 12AWG 10AWG 9AWG 8AWG
2 1/0 9 6
1 2/0 11 7
1/0 3/0 14 9 6*
4/0 17 11 7*
2/0 18 11 7*
250 20 13 8*
3/0 22 14 9* 6*
4/0 350 28* 18 11* 7* 6*
250 21 13* 9* 7*
500 25* 16 10* 8* 7*
350 29* 18 12* 9* 8*
600 30* 19 12* 10* 8*
750 24 15* 12* 10*
500 26* 17 13* 10*
600 1000 31* 20 16* 13*
650 34* 21 17* 14*
750 1250 25* 20 16*
1500 30* 24 19*
1000 32* 26* 21

Thickness of bedding and size of armor wire
Calculated Dia. of cable under bedding Min. thickness of bedding Nominal size of armor wire
mm mm mm
0-19.05 1.14 2.11
19.08-25.40 1.65 2.77
25.43-43.18 2.03 3.4
43.21-63.50 2.03 4.19
63.53 & larger 2.41 5.16

Packing&Shipping


Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum.
Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port.

FAQ


Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !

Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.

Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.

Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!

Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .

Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .

Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.

Looking forward to cooperating with you.
