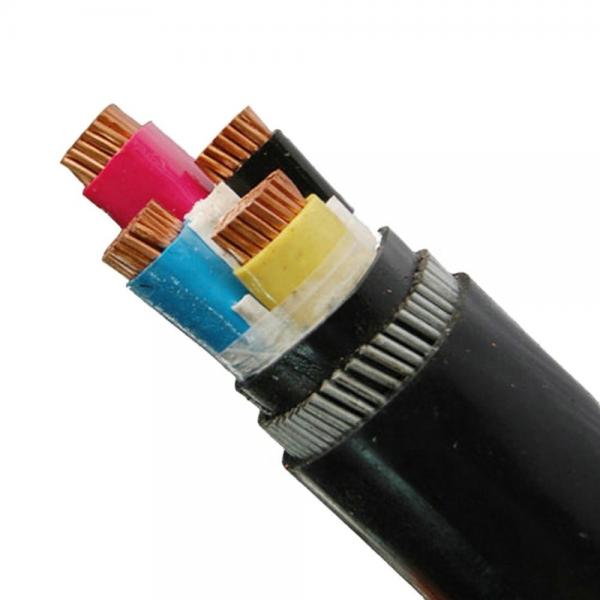

CU/PVC/SWA/PVC Copper Conductor SWA NYRY Low Voltage Electrical Cable For Tunnel

 China CU/PVC/SWA/PVC Copper Conductor SWA NYRY Low Voltage Electrical Cable For Tunnel supplier

CU/PVC/SWA/PVC Copper Conductor SWA NYRY Low Voltage Electrical Cable For Tunnel image

Get a Quote Email to us

Brand Name :
Nuoxing

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-100

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Model Number :
NYRY

Product Name :
Low Voltage Electrical Cable

Conductor :
Copper

Insulation material :
PVC

Application :
Stationary industrial power applications, underground tunnels, etc.

Type :
Low Voltage

Jacket :
PVC

Referece Standard :
IEC60502

Package :
Wooden Reel, Iron-wooden Reel, Steel Reel

CU/PVC/SWA/PVC Copper Conductor SWA NYRY Low Voltage Electrical Cable For Tunnel

Characteristic:

1. Rated voltage: 0.6/1KV
2. Cable core number: single core/multi core
3. The largest. The long-term working temperature of the conductor is 70°C for PVC insulation and 90°C for XLPE insulation.
When short-circuited, the maximum temperature. PVC insulation is 160°C, and XLPE insulation is 250°C.

Construction:

VV32/VLV32-0.6/1-kV-single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC

VV32/VLV32-0.6/1-kV-multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Low carbon steel wire
7. Binder tape: Non-hygroscopic material
8. Outer sheath: Polyvinyl chloride PVC

Specificaiton:

Product name Low Voltage Electrical Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 – 400MM2

Quality commitment:

1. Strictly implement the quality management system, the products conform to the relevant national standards and customer requirements.

2. The products are packed and transported in strict accordance with customer requirements and regulations to ensure the safety and reliability of the products during loading and unloading and transportation.

3. Product per circle of meters, less 1 meter our company add 10 meters.

4. Product implementation of three packages (quality, quantity, price), free technical advice and related technical information for customers.

5. Strict quality control on the procurement of raw materials, product production process quality control points, semi-finished products, finished products, packaging, etc., to ensure excellent product quality and timely delivery.

Low Voltage Electrical Cable

We are China CU/PVC/SWA/PVC Copper Conductor SWA NYRY Low Voltage Electrical Cable For Tunnel manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
