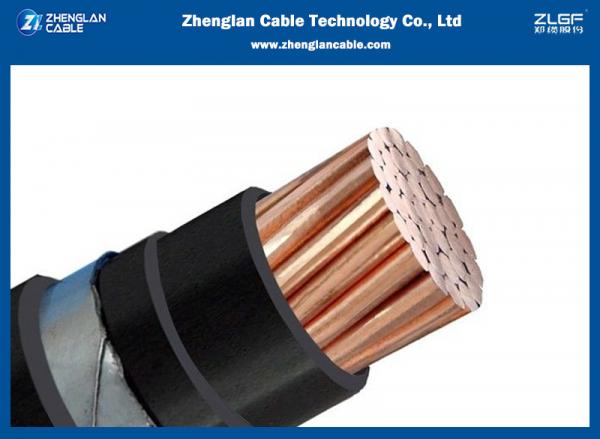

CU/XLPE/PVC/STA/PVC Low Voltage Single Core Armored Copper Cable Under BS IEC Stadard

 China CU/XLPE/PVC/STA/PVC Low Voltage Single Core Armored Copper Cable Under BS IEC Stadard supplier

CU/XLPE/PVC/STA/PVC Low Voltage Single Core Armored Copper Cable Under BS IEC Stadard image

Get a Quote Email to us

Brand Name :
Zhenglan cable

Model Number :
CU/XLPE/PVC/STA/PVC copper cable

Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
Negotiable

Payment Terms :
L/C, T/T,

Supply Ability :
10000m/day

Delivery Time :
15days

Packaging Details :
Wooden drum, wood and steel drum,as customer’s request

Price :
Negotiable

Material :
99.99% oxyzen free copper

Application :
power station

Insulation :
XLPE

Out Sheath Color :
Black or Customized

Core :
copper

Cable Mark :
Ink printing or Embossing Content Customized, lazer printing

Cable Drum Length :
500m, 1000m, or customized

characted :
Armoured

Jacket :
PVC

Armoured :
STA

CU/XLPE/PVC/STA/PVC low voltage single core armored copper cable under BS IEC stadard

Description:
IEC60502, IEC60228, GB/T 12706.1-2008
CE, ISO

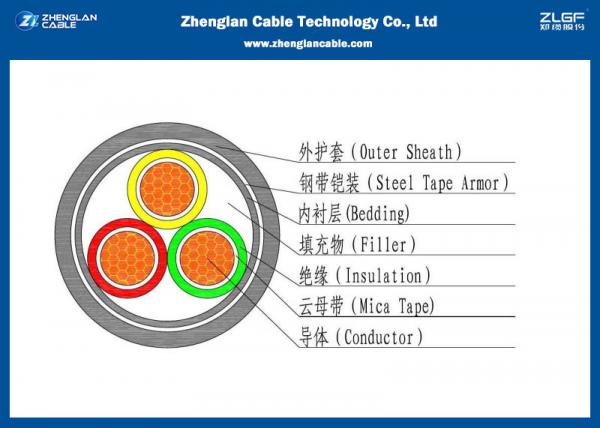

Construction:
Conductors: Copper conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Application:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706-2008
Other standards such as BS7870, DIN and ICEA upon request

Insulation:
XLPE material and thickness shall be as per IEC 60502
Colour Code Colour Code (1):
1 Core: Red or Black; 2 Cores: Red, Black; 3 Cores: Red, Yellow, Blue; 4 Cores: Red, Yellow, Blue, Black; 5 Cores: Red, Yellow, Blue, Black, Green; Above 5 Cores: Black Cores with White numerals

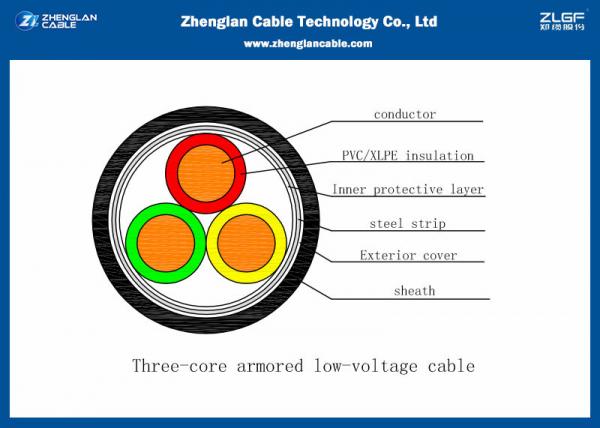

Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.

Armour:
Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths:
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:

Single core power cable steel tape armored

nominal cross section (mm²) OD(mm) insulation nominal thickness (mm) size of armor(mm) YJV22 (XLPE/steel tape armor/PVC)
steel tape (layer*thickness)mm OD (mm) weight (kg/km)
1.5 1.38 0.7 2 x 0.2 14.9 334
2.5 1.78 0.7 2 x 0.2 14.9 341
4 2.25 0.7 2 x 0.2 14.9 354
6 2.76 0.7 2 x 0.2 14.9 365
10 3.57 0.7 2 x 0.2 14.9 395
16 4.5 0.7 2 x 0.2 15 444
25 6.3 0.9 2 x 0.2 15.4 523
35 7.3 0.9 2 x 0.2 16.4 641
50 8.3 1 2 x 0.2 17.6 813
70 10 1.1 2 x 0.2 19.5 1050
95 11.6 1.1 2 x 0.2 21.1 1323
120 13 1.2 2 x 0.2 22.7 1598
150 14.6 1.4 2 x 0.2 24.7 1937
185 16.2 1.6 2 x 0.2 26.8 2325
240 18.6 1.7 2 x 0.2 29.6 2914
300 20 1.8 2 x 0.2 32 3549
400 24.3 2 2 x 0.2 36.3 4629
500 28.8 2.2 2 x 0.5 42.2 5848
630 33 2.4 2 x 0.5 47.3 7476
800 37.29 2.6 2 x 0.5 52.3 9331
1000 41.8 2.8 2 x 0.5 57.7 11533

CU/XLPE/PVC/STA/PVC low voltage single core armored copper cable under BS IEC stadard Packages

About us

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Zhenglan Cable:

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China CU/XLPE/PVC/STA/PVC Low Voltage Single Core Armored Copper Cable Under BS IEC Stadard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
