Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter

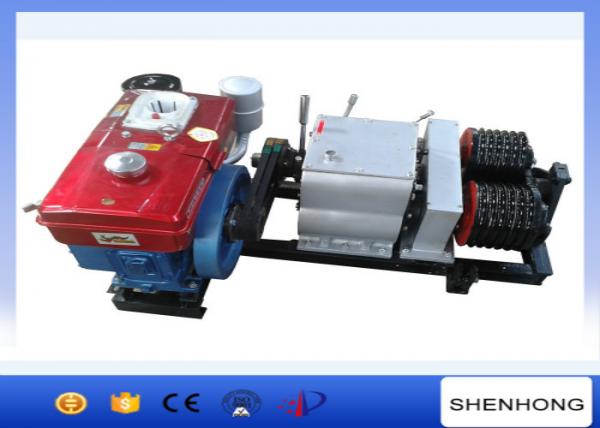

Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter image
Brand Name :
SHENHONG
Model Number :
SJM5Q
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
2 sets
Price :
negotiation
Supply Ability :
500 set/sets per month
Delivery Time :
7 days after payment
Packaging Details :
standard export wooden case
Motor :
Water Cooled Diesel Engine
Capacity :
50KN
Type :
Diesel Cable Winch
Usage :
cable pulling
Engine Power :
6.3KW
Weight :
280kg
Size :
1200×600×500
Capstan :
double
Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter
INTENDED USE
Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Characteristics
5 Ton double capstan winch is a traction hoisting operation carried out in the filed of construction site,mainly used in electric power,telecommunications line tower,stood in the receiving ,put on the line,the laying of cable ,hauling or lifting.
Technical Data
| Model number | SJM-5SQ | ||||||
| Engine | HONDA GX390/186F Diesel Engine | ||||||
| Power | 13HP,3600rpm/6.3KW,3600rpm | ||||||
| Capstan | 6 nos of groove,230mm bottom diameter | ||||||
| Weight(kg) | 280 | ||||||
| Dimension(mm) | 1300*670*600 | ||||||
| Gear | Forward | Reverse | |||||
| Slow I | Slow II | Quick I | Quick II | Slow | Quick | ||
| Rated Pulling(KN) | 50 | 30 | 13 | 10 | – | – | |
| Pulling Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 | |
| It is 4 stages. | |||||||
| Reduction Ratio:60:1 | |||||||
Winch Drawing
Spare Parts
| 1 | NO.5 shaft | 2 | double cap | 3 | bearing |
| 4 | brake ratchet | 5 | brake pawl | 6 | ratchet spring |
| 7 | wheel gear | 8 | 09 wheel gear | 9 | bearing |
| 10 | NO.3 Shaft right cover | 11 | NO.4 shaft | 12 | Oil seal |
| 13 | wheel gear | 14 | NO.3 shaft | 15 | key pin |
| 16 | NO.1 Shaft right cover | 17 | bearing | 18 | bearing |
| 19 | bearing | 20 | NO.1 shaft dual gear | 21 | bearing |
| 22 | NO.1 shaft right cover | 23 | NO.1 shaft | 24 | NO.1 shaft washer |
| 25 | NO. 2 shaft dual gear | 26 | NO. 2 shaft right cover | 27 | Oil seal |
| 28 | NO. 2 shaft | 29 | bearing | 30 | Reverse gear |
| 31 | bearing | 32 | reverse gear shaft | 33 | nut |
| 34 | shifting handle | 35 | shifting handle cover | 36 | Form arm |
| 37 | shifting fork | 38 | NO.2 shaft Triple gear | 39 | bearing |
| 40 | NO.2 shaft left cover | 41 | Clutch half round | 42 | Clutch inner sleeve |
| 43 | clutch gear | 44 | Clutch wrap | 45 | Linkage disk |
| 46 | bearing | 47 | Clutch disc | 48 | Big Pulley |
| 49 | Oil seal | 50 | bearing | 51 | bearing |
| 52 | NO.1 shaft Triple gear | 53 | Movable gasket | 54 | Copper bearing |
| 55 | bearing | 56 | space ring | 57 | Brake clutch gear |
| 58 | friction plate | 59 | NO.1 shaft Triple gear | 60 | Copper space ring |
| 61 | Copper bearing | 62 | NO.4 shaft left cover | 63 | bearing |
| 64 | 09 Gear cap | 65 | gear | 66 | friction plate |
| 67 | gear | 68 | friction disc | 69 | NO.5 shaft left cover |
| 70 | Gear box |
We are China Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Diesel Cable Winch, engine powered winch, wire rope winchSimilar Or Related
-
