DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines

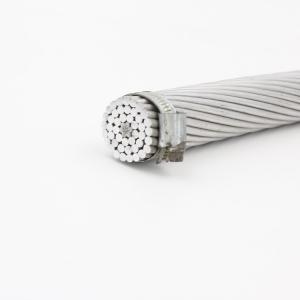

DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines image

Get a Quote Email to us

Brand Name :Suntech Power

Model Number :ACSR

Certification :ISO9001

Place of Origin :Ningbo,China

MOQ :1000m

Price :Negotiation

Payment Terms :L/C, T/T, Western Union

Supply Ability :2000Ton/Month

Delivery Time :15 workdays

Packaging Details :Iro-wooden Drum

Name :ACSR / SCA bare conductor cable

Application :Overhead

Type :LOW VOLTAGE

Conductor :Aluminum

Standard :DIN 48204

DIN 48204 70/12 120/20 ACSR /SCA bare conductor cable overhead transmission lines

Product Description

ACSR (aluminum conductor steel-reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

ACSR Technical Characteristics Based on Standard BS 215

Code name	Nominal aluminum area	Stranding and wire diameter		Sectional area of aluminum	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	Nominal aluminum area	Al	Steel	Sectional area of aluminum	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	mm2	No./mm		mm2	mm2	mm	kg/km	ohm/km	kN
RABBIT	50	6/3.35	1/3.35	52.88	61.7	10.05	214	0.5426	18.35
DOG	100	6/4.72	7/1.57	105	118.5	14.15	394	0.2733	32.7
WOLF	150	30/2.59	7/2.59	158.1	194.9	18.13	726	0.1828	69.2
DINGO	150	18/3.35	1/3.35	158.7	167.5	16.75	506	0.1815	35.7
LYNX	175	30/2.79	7/2.79	183.4	226.2	19.53	842	0.1576	79.8
ZEBRA	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	0.0674	131.9

ACSR Technical Characteristics Based on Standard ASTM B 232

Code name	Nominal AWG/MCM	Stranding and wire diameter		Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	Nominal AWG/MCM	Al	Steel	Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
		No./mm		mm2	mm2	mm	kg/km	Ω/km	kN
Turkey	6	6/1.68	1/1.68	13.29	15.48	5.04	54	2.1586	5.24
Swan	4	6/2.12	1/2.12	21.16	24.71	6.36	85	1.3557	8.32
Sparrow	2	6/2.67	1/2.67	33.61	39.22	8.01	136	0.8535	12.7
Robin	1	6/3.0	1/3.0	42.39	49.49	9.0	171	0.6767	15.85
Raven	1/0	6/3.37	1/3.37	53.48	62.38	10.11	216	0.5364	19.32
Quail	2/0	6/3.78	1/3.78	67.42	78.65	11.34	273	0.4255	23.62

Our Services

Product Service is the key point between the business cooperation ,we have our own special services as below:

1).Free 3-5 Year Product Warranty;

2).We can provide the pre-sale ,sale and after-sale instruction and technical support.

3).We have the standard wooden drum packing and strict product inspect process etc.

Packaging & Shipping

We usually use the standard wooden drum to package as the belowing picture.We also can design the different package types according to the customer's requirements.

Shipping port: Qingdao, Shanghai or other ports as per your requirements

Sea freight: FOB/CFR/CIF etc quotation are all available

We are China DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
