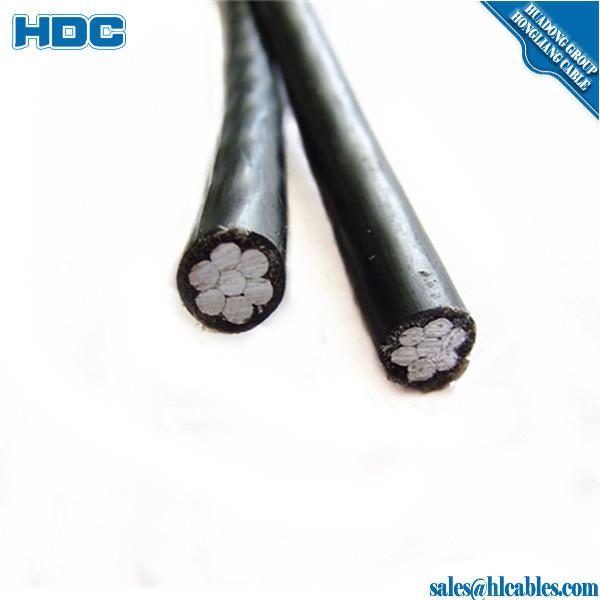

duplex cable SHEPHERD AWG #6/7 AAC for Philippines Duplex Cables
duplex cable SHEPHERD AWG #6/7 AAC for Philippines Duplex Cables image
Brand Name :
huadong cable
Model Number :
power cable
Place of Origin :
china
MOQ :
500m
Price :
usd0.1-100 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350000 Kilometer/Kilometers per Month
Delivery Time :
7days
Packaging Details :
duplex cable: Packaging detail: Sea worthy or Air worthy packaging in Standard wooden drum,steel drum,others as your request. Delivery time:About 5 to 10 working days to our sea port CHINA.
duplex cable SHEPHERD AWG #6/7 AAC for Philippines Duplex Cables.
Item name:duplex cable SHEPHERD AWG #6/7 AAC for Philippines Duplex Cables.
ABC Cable,Insulated Aerial Cable,Aerial Bundled Cable
This series includes: ABC cable, * All aluminum conductors (AAC) * All aluminum alloy conductors (AAAC) * Aluminum conductor steel reinforced (ACSR) * Anti-corrosion type ACSR * All steel conductors Relative manufacturing standards: IEC61089, ASTM B231, B232, BS215, DIN48204
| Place of Origin: Henan China (Mainland) | Brand Name: Huadong | Insulation Material: PVC |
| Type: Low Voltage | Application: Overhead | Conductor Material: Aluminum |
| Jacket: PVC |
| Packaging Detail: | wooden drum |
| Delivery Detail | one month |
ABC Cable(Aerial Bounded Cable), primarily used for 120 volt overhead service applications.
(1).Application
ABC Cable Primarily used for 120 volt overhead service applications such as street lighting,outdoor lighting,and temporary service for construction.To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crosslinked polyethylene(XLP)insulated conductors.
(2).Construction
| Code Word | Phase conductor | Bare Neutral Messenger | Nominal Lay Length | Weight Per 1000ft. (lbs.) | Allowable Ampacities+ | |||||||
|
Size (AWG) |
Stranding |
Insul. Thick. (Mils) |
Size (AWG) |
Stranding |
Rated Strength (lbs.) |
inches | XLP | POLY | XLP | POLY | ||
| AAC Neutral-messenger | ||||||||||||
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 10.36 | 61 | 61 | 85 | 70 | |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 10.36 | 64 | 64 | 85 | 70 | |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 10.36 | 92 | 92 | 115 | 90 | |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 10.36 | 96 | 96 | 115 | 90 | |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 14.88 | 147 | 147 | 150 | 120 | |
| Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 14.88 | 234 | 234 | 205 | 160 | |
Code words for XLP insulated products are formed by adding/XLPto the conventional code words above(e.g.-Chihuahua/XLP)
600/1000v Aerial Bundle Cable
1)Certificate:ISO9001
2)Fast delivery and best price
3)Standard:IEC,ASTM,BIS,etc.
We are China duplex cable SHEPHERD AWG #6/7 AAC for Philippines Duplex Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
