Durable Pole Accessories Ceramic Glass Cap And Pin Type Suspension Insulator

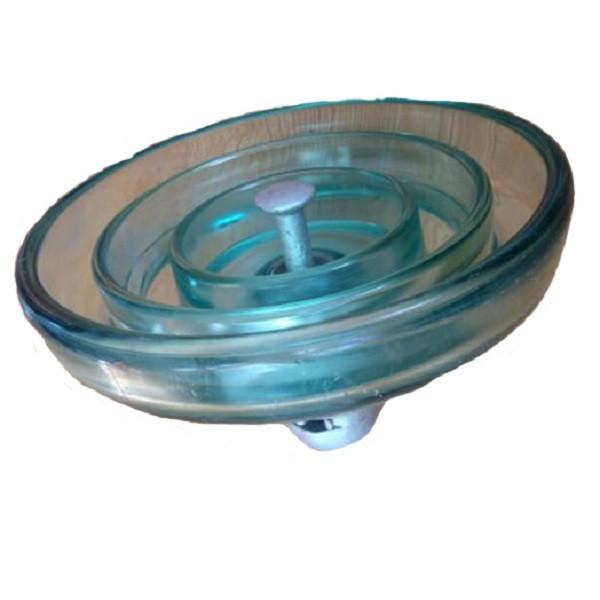

Durable Pole Accessories Ceramic Glass Cap And Pin Type Suspension Insulator image
Brand Name :
FUTAO
Model Number :
FT-PA122
Certification :
ISO 9001
Place of Origin :
Jiangsu China
MOQ :
100 Pieces
Price :
$4-$6
Payment Terms :
L/C, T/T
Supply Ability :
10000 pieces every month
Delivery Time :
30 – 60 workdays
Packaging Details :
40HC or OT, wrap by mat or straw mat
Origin :
Jiangsu China
Certificate :
ISO 9001
Material :
ceramic or glass
Tensile Strength :
70KN
Standard :
ANSI
12kv 35kv 11kv 33kv pole accessories ceramic glass cap and pin type suspension insulator
MAIN DIMENSIONS AND STANDARD PARTICULARS
| Cat. No. | H1101 | H1102 | H1103 | H1104 | H1105 | H1106 | H1107 | H1108 | |||
| Fig | 2 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | |||
| Class Standard |
XP- 70-A |
XP- 70C-A |
XP- 125-A |
XP- 160-A |
XP- 70-Y |
XP- 110-Y |
XP- 160-Y |
XP- 190-Y |
|||
| Main Dimensions mm | D | 254 | 254 | 254 | 254 | 254 | 254 | 254 | 279.4 | ||
| H | 146 | 146 | 146 | 146 | 146 | 146 | 146 | 171 | |||
| Creepage Distance (mm) | 292 | 292 | 292 | 317.2 | 292 | 292 | 317.5 | 368.3 | |||
| Flashover Voltage |
Power frequency |
Dry(kV) | 75 | 75 | 75 | 78 | 75 | 78 | 78 | 80 | |
| Wet (kV) | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 47 | |||
| Electromechanical failing Load (KN) | 70 | 70 | 125 | 160 | 120 | 110 | 110 | 125 | |||
| Power-frequency puncture Voltage(kV) | 120 | 120 | 120 | 160 | 120 | 110 | 110 | 125 | |||
| Lighting Full-Wave Impulse Withstand Voltage (Peak) Minimum (kV) | 100 | 100 | 100 | 110 | 100 | 100 | 100 | 110 | |||
| Weight (kg) | 4.5 | 4.5 | 4.5 | 6.5 | 4.5 | 5.7 | 6.5 | 9 | |||
| Applied Standard | AS | AS | AS | AS | BS | BS | BS | BS | |||
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
We are China Durable Pole Accessories Ceramic Glass Cap And Pin Type Suspension Insulator manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
