Electrical Cable Pulling Machine , Cable Hauling Machine 220V / 380V

 China Electrical Cable Pulling Machine , Cable Hauling Machine 220V / 380V supplier

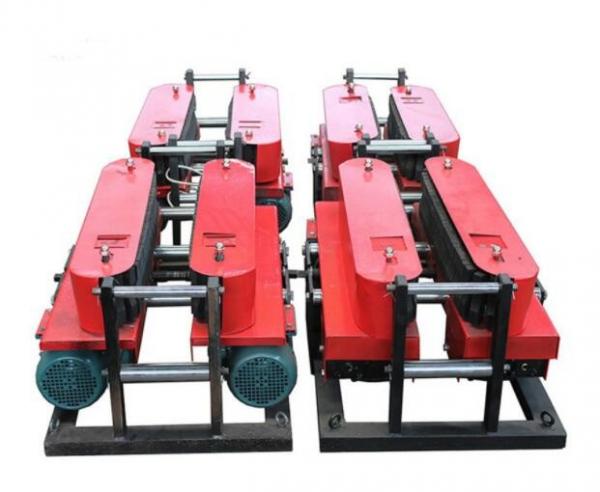

Electrical Cable Pulling Machine , Cable Hauling Machine 220V / 380V image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
DSJ

Certification :
ISO

Place of Origin :
Ningbo,China

MOQ :
1 Set

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union, MoneyGram

Supply Ability :
500pcs per month

Delivery Time :
5-7days after payment

Packaging Details :
Exported Cases

Power Source :
Electric Engine 220V/380V

Pulling Speed(m/min) :
6

Rubber Sheet Thickness :
25mm

Cable Diameter :
30-200mm

Usage :
Cable Push Pull

Name :
Cable Hauling Machine

Application :
Pulling Cable

Warranty :
At least one year

Electrical Cable Pulling Machine , Cable Hauling Machine 220V / 380V

Application

DSJ Cable Laying Equipment , we manufactured, is the ideal machine of cable transmission used in power,

petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.

It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.

Characteristic:

Driven by double caterpillars to make sure that the delivery force and gravitational force will affect at two direction. It’s good to protect the insulation layer of cable.

The delivery force will be transferred by caterpillar which made by high strength DRC. Force uniform and wear well.

Equipped with adjusted barrel, easy to operate.

It will be very convenient to be equipped with a reel at the upper part as a lower power tractor.

Low noise, small temperature rise for and easy maintenance.

We can provide other matching product like DSJ electric control system(control box and branch box, four core sheath cable ) and reel as customer’s requirement.

Feature

1. The two vertical shafts drive the transmission force and gravity respectively in two directions of the cable to protect the insulation of the cable.
2. The transmission force is transmitted through the compound caterpillar, and cater pillar adopts high strength wear-resisting rubber, which make the power force uniform and durable.
3. The machine is equipped with adjustable roller, which is very convenient.
4. The upper part of the machine can be fitted with a hinge wheel, which can be used for small power traction.
5. The machine has low mechanical noise, small temperature rise and easy maintenance.

Technical Data

Model Type DSJ-150 DSJ-180
Line pulling(KGS) 700 900
Pulling Speed(m/min) 8 6
Electric motor 1.1KW *2 1.5KW * 2
Oversize dimension 950*500*400 1020*590*400
Weight(KGS) 150 180-200
Cable diameter Φ30 – 180 mm Φ30 – 200 mm
Transimission I=45 I=60
Rubber sheet thickness 25mm 25mm






We are China Electrical Cable Pulling Machine , Cable Hauling Machine 220V / 380V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
