EPR Cold Resistant Mining 10KV Flat Traveling Cable

 China EPR Cold Resistant Mining 10KV Flat Traveling Cable supplier

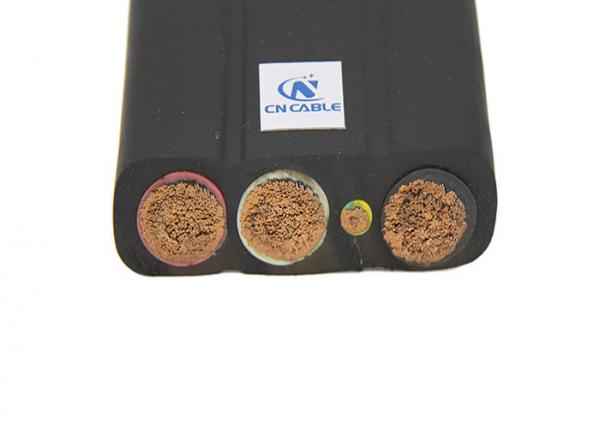

EPR Cold Resistant Mining 10KV Flat Traveling Cable image

Get a Quote Email to us

Model Number :Flat mining trailing cable
Certification :CE
Place of Origin :Henan
MOQ :500meters
Payment Terms :L/C, T/T
Delivery Time :30days after payment
Packaging Details :Iron-wooden drum
Conductor :Annealed tinned coated copper
Screen :Tinned copper wire
Insulation :EPR
Sheath :Rubber
Voltage :10kv
Ground conductor :Tinned copper wire
Ground conductor insulation :Rubber insulated

UGEFBP SHD PG 10KV Heavy Duty Outdoor Cold Resistant High Voltage Mining Flat Traveling Cable



Product Description



Suitable for ethylene-propylene rubber insulated neoprene rubber sheathed high-voltage rubber-sheathed flat flexible cables for outdoor heavy equipment with rated voltages of 8.7/10kV and below. The cable has the characteristics of high temperature resistance, cold resistance, oil resistance, corrosion resistance, soft wear resistance and tensile strength. According to user needs, it can be designed and compiled by adding multi-core control cable and optical fiber communication to make high-voltage power, multi-core control and optical fiber communication combined flat cable. Products are widely used in electric power, metallurgy, petrochemical, mining, cement, shipbuilding, port and mobile equipment manufacturing industries.



  • Rated voltage is 8.7/10kV
  • Long-term working temperature of the cable: -40 ~ +100℃
  • If the cable is used in a harsh environment, it is recommended to use tinned copper wire as the conductor of the cable, which can prevent the conductor from oxidizing.
  • The outer sheath of the cable adopts weather-resistant special rubber sheath, which can ensure the normal use under the conditions of high temperature or low temperature in the field.


Technical parameter




Approx. overall Approx. weight(kg/km) 20℃ Phase Core Insulation Resistance
Copper core Tinned copper core
UGEFBP 3*16+3*16/3 69×28 3450 1.21 1.24
UGEFBP 3*25+3*16/3 89×30 4704 0.780 0.795
UGEFBP 3*35+3*16/3 82×32 5264 0.554 0.565
UGEFBP 3*50+3*16/3 94×36 6720 0.386 0.393
UGEFBP 3*70+3*16/3 98×38 7616 0.272 0.277
UGEFBP 3*95+3*16/3 106×40 9072 0.206 0.210
UGEFBP 4*16 87×28 4435 1.21 1.24
UGEFBP 4*25 103×30 6048 0.780 0.795
UGEFBP 4*35 108×32 6720 0.554 0.565
UGEFBP 4*50 122×36 8512 0.386 0.393
UGEFBP 4*70 130×38 10192 0.272 0.277
UGEFBP 3*16+1*10 88×28 4368 1.21 1.24
UGEFBP 3*25+1*10 93×30 5712 0.780 0.795
UGEFBP 3*35+1*16 95×326 6474 0.554 0.565
UGEFBP 3*50+1*25 117×36 8176 0.386 0.393
UGEFBP 3*70+1*25 125×38 9632 0.272 0.277



LV Related Cables



Packaging & Shipping

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port

Company Information

CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.


The company has passed Quality Management System ISO 9001:2015 and ISO 14001:2015, owned CE certificate and IEC certificate, etc. Advanced production technology and production equipments are also adopted .Some advanced producing and testing equipments are imported from Switzerland, Finland, Germany, the United States and other countries. For example, CCV cross-linked production line from Finland, and VCV cross-linked production line from German Troester, etc.


There are more than 300 workers in the factory; most of them have rich experiences in the field of cable manufacturing, engineering technology, and enterprise management. More than 40 persons are of senior professional and technical personnel, who are the upgraded technology experts and academic technology leaders. Design and production of all of our products are strictly according to the relative standards, such as ASTM, Australian standard, BS, CSA, CCITT, DIN,GB, IEC, JIS, NFC, UL, etc. Our products have been exported to more than 80 countries and regions. Such as Australia, Bangladesh, Brazil, Canada, Chile, Congo, Dominican, Ghana, Indonesia, Iran, Kenya, Nigeria, Peru, Philippines, Rwanda, Saudi Arab, South Africa, Sudan, Togo, Uganda, US, UK, Zambia.


Our Services



Buyer Feedback






Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.


Q3: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q4: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
