Fireproof Solar Photovoltaic Cable With High Current Carrying Capacity

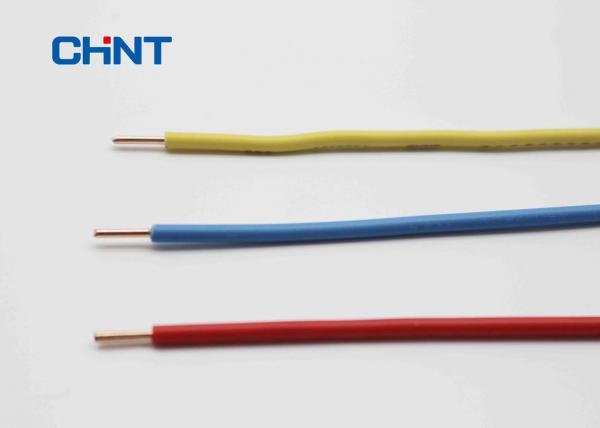

Fireproof Solar Photovoltaic Cable With High Current Carrying Capacity image
Brand Name :
CHINT
Model Number :
PV1-F
Certification :
TUV/UL
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
2000KM/Month
Packaging Details :
100M/Roll Wooden drum/iorn drum
Approvals :
TUV 2pfg 1169/08.2007 PV1-F
Rated Voltage :
1500V
Ambient Temperature :
-40ºC–90ºC
Fireproof :
En60332-1-2
Material Shape :
Round Wire
Conductor Standard :
VDE 0295/IEC 60228, Class5
2.5mm2 4.0mm2 6.0mm2 PV Photovoltaic Cable DC Solar Power Cable
Product Description
Product features:
1. Rated Voltage: DC 1500V
2. Ambient Temperature: -40ºC–90ºC Max. Temperature at Conductor 120ºC:
3. Conductor: Tin-Plated copper, Class5
4. Insulation: 125ºC XLPE
5. Jacket: 125ºC XLPE
6. Color: Black
7. Marking: FRCABLE TÜV EN50618 H1Z2Z2-K DC 1.5KV, 1X4.0mm2 Meter marking
Approvals:
TÜV EN50618 H1Z2Z2-K
Application:
Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations.
General characteristic
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire .
1. Double insulation,electron beam cross-linked
2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering
3. Excellent resistance to abrasion
4. Halogen free,flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. TUV and UL approved
Specification:
|
Cross Section (mm²) |
Conductor Construction (n/mm) |
Conductor Stranded OD.(mm) |
Insulation Min.Wall Thickness(mm) |
Sheath Min.Wall Thickness(mm) |
Cable OD.(mm) |
Conductor Max.Resistance AT20°C (Ω/km) |
Current Araaing Capacity AT 60°C(A) |
| 1.5mm² | 30/0.25 | 1.58 | 0.67 | 0.73 | 4.90 | 13.3 | 30 |
| 2.5mm² | 50/0.25 | 2.02 | 0.67 | 0.73 | 5.45 | 7.98 | 41 |
| 4mm² | 56/0.30 | 2.60 | 0.67 | 0.73 | 6.10 | 4.95 | 55 |
| 6mm² | 84/0.30 | 3.42 | 0.8 | 0.80 | 7.20 | 3.30 | 70 |
| 10mm² | 142/0.30 | 4.56 | 0.9 | 0.90 | 9.00 | 1.91 | 98 |
| 16mm² | 228/0.30 | 5.60 | 1.00 | 0.90 | 10.20 | 1.21 | 132 |
PHOTOFLEX Photovoltaic Cable
Applications
These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
Standards
DIN EN 50618 (H1Z2Z2-K)
Construction
| Conductor | Stranded tinned copper conductor per DIN VDE 0295 and IEC 60228 Class 5. |
| Insulation | Electron beam cross-linked, halogen free and flame retardant compound. |
| Sheath | Electron beam cross-linked, LSZH and flame retardant compound, Black. |
Electrical Properties
| Rated Voltage U0/U | 1/1 kV AC; 1.5/1.5 kV DC |
| Maximum Permitted DC Voltage | 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load) |
| Insulation Resistance | 1000 MΩ-km |
| Spark Test | 6000 Vac (8400 Vdc) |
| Voltage Withstand |
6500 Vac for 5 minElectron |
Thermal Properties
| Maximum Voltage | 1.2KV (AC), 1.8KV (DC) |
| Ambient Temperature | -40ºC ~ +90ºC |
| Maximum Temperature At Conductor | 120ºC (20000h) according to IEC/EN 60216-1 |
| Short Circuit Temperature | 200ºC/5 sec |
| Thermal Endurance Test | According to EN 60216-2 (temperature index +120° C) |
| Damp-Heat Resistance | According to EN 50618, Table 2with 85% humidity(test acc. to EN 60068-2-78) |
