Flame Retardant Cu Conductor Pvc Insulated Multi Core Cable

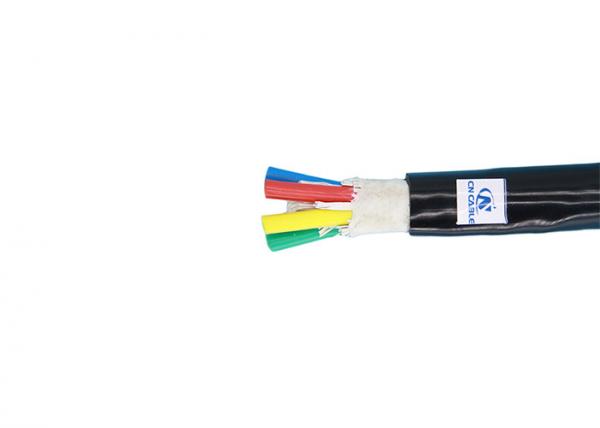

Flame Retardant Cu Conductor Pvc Insulated Multi Core Cable image
PVC INSULATED CABLE MULTI-CORE CABLE H05VV5-F/H05VVH2-F
H05VV5-F/H05VVH2-F CABLE
Application
H05VV5-F/H05VVH2-F cable is suitable in dry and humid locations for connections of electrical appliances submitted to medium level mechanical strength, like washing machines, refrigerators, etc. It is recommended for household installations and can also be used for light mobile services.
Standard
DIN VDE 0281-3
Cable Construction
Conductor: Flexible copper wire , class 5
Insulation: PVC
Sheath: PVC, TM2
Core colour code according to HD 308 S2
Jacket colour: Black , White ,Grey or others as per requirements
Technical Characteristics:
Rated voltage: 300/350V
Temperature Rating: +5°C to +70°C.
Short circuit temperature: 150°C
Minimum Bending Radius: 8 times of overall diameter
Parameter
| Core No. | Conductor Size | Conductor | PVC Insulation Thickness | PVC Sheath Thickness | Approx. Cable Dia. | Approx. Cable Weight | |
| Single wire dia. | Overall Dia.(Approx.) | ||||||
| — | mm2 | mm | mm | mm | mm | mm | kg/km |
| 2 | 0.75 | 0.2 | 1.14 | 0.6 | 0.8 | 63 | 43 |
| 3 | 0.75 | 0.2 | 1.14 | 0.6 | 0.8 | 6.7 | 55 |
| 4 | 0.75 | 0.2 | 1.14 | 0.6 | 0.8 | 7.3 | 71 |
| 5 | 0.75 | 0.2 | 1.14 | 0.6 | 0.9 | 8.2 | 89 |
| 6 | 0.75 | 0.2 | 1.14 | 0.6 | 0.9 | 8.9 | 104 |
| 7 | 0.75 | 0.2 | 1.14 | 0.6 | 0.9 | 8.9 | 111 |
| 14 | 0.75 | 0.2 | 1.14 | 0.6 | 1.2 | 12.8 | 226 |
| 2 | 1 | 0.2 | 1.34 | 0.6 | 0.8 | 6.7 | 51 |
| 3 | 1 | 0.2 | 1.34 | 0.6 | 0.8 | 7.1 | 67 |
| 4 | 1 | 0.2 | 1.34 | 0.6 | 0.9 | 8.0 | 88 |
| 5 | 1 | 0.2 | 1.34 | 0.6 | 0.9 | 8.7 | 106 |
| 2 | 1.5 | 0.25 | 1.6035 | 0.7 | 0.8 | 7.7 | 68 |
| 3 | 1.5 | 0.25 | 1.6035 | 0.7 | 0.8 | 8.1 | 91 |
| 4 | 1.5 | 0.25 | 1.6035 | 0.7 | 1 | 9.3 | 119 |
| 5 | 1.5 | 0.25 | 1.6035 | 0.7 | 1.1 | 10.4 | 149 |
| 2 | 2.5 | 0.25 | 2.1035 | 0.8 | 1 | 9.5 | 103 |
| 3 | 2.5 | 0.25 | 2.1035 | 0.8 | 1.2 | 10.4 | 148 |
| 4 | 2.5 | 0.25 | 2.1035 | 0.8 | 1.2 | 11.4 | 187 |
| 5 | 2.5 | 0.25 | 2.1035 | 0.8 | 1.2 | 12.5 | 226 |
| 2 | 4 | 0.3 | 2.61 | 0.8 | 1.2 | 10.9 | 152 |
| 3 | 4 | 0.3 | 2.61 | 0.8 | 1.2 | 11.5 | 204 |
| 4 | 4 | 0.3 | 2.61 | 0.8 | 1.2 | 12.6 | 260 |
| 5 | 4 | 0.3 | 2.61 | 0.8 | 1.4 | 14.2 | 329 |
| 5 | 6 | 0.3 | 3.9726 | 0.8 | 1.4 | 17.9 | 475 |
| 5 | 5.26 | 3.9 | 0.8 | 1.4 | 17.7 | 436 | |
