Flexible Flame Retardant Electric PV Wire 1.5MM 2.5MM Environmental Protection

 China Flexible Flame Retardant Electric PV Wire 1.5MM 2.5MM Environmental Protection supplier

Flexible Flame Retardant Electric PV Wire 1.5MM 2.5MM Environmental Protection image

Get a Quote Email to us

Brand Name :
SHANCABLE

Model Number :
PV 1.5mm2 2.5mm2

Certification :
TUV,ISO,CE,IEC

Place of Origin :
SHANGHAI, CHINA

MOQ :
2500meter

Price :
US$0.27~1.59 per meter

Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability :
25000Kilometer per Month

Delivery Time :
14 days

Packaging Details :
10meter /rolls or customization

Model name :
PV wire

Conductor Type :
TCU

Size :
1.5mm2 2.5mm2

Nos.of core :
Single core

Free sample :
Avaliable

Warranty :
2 years

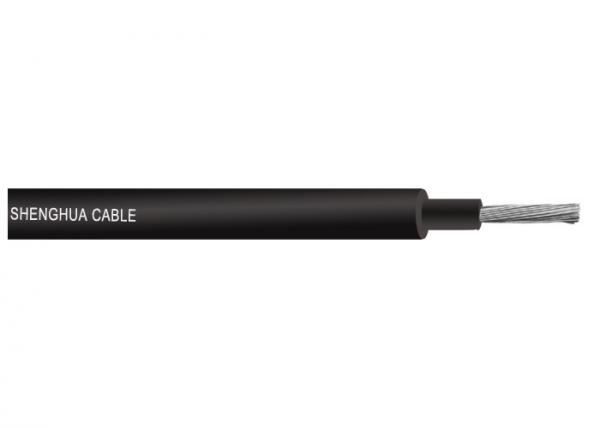

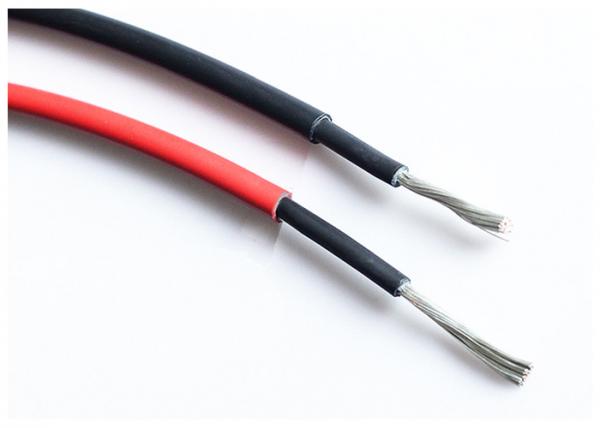

Flexible Flame Retardant Electric PV Wire 1.5MM 2.5MM Environmental Protection

Application

Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment

Structure

Core Conductor Tinned annealed copper (stranded core)
Popular sizes 1 core x 1.5mm2 2.5mm2
Cable conductor Stranded tinned annealed copper
Insulation Electron-beam cross-linked Polyolefin(XLPO)
Jacket XLPO/ PE (black, red)
Other specs a) Temperature rating: -40C up to +120C
b) Fire performance: IEC 60332-1, UL1581 VW-1
c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2
d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e) Voltage suitable: 600-1000V

Advantage:

With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc

Future:

Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc

Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing

Technical Parameter

Section Area
(mm2)
External Diameter
(mm)
Current Carring Capacity
(A)
1.5 4.9 30
2.5 5.5 41

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ

Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: What warranties do your products carry?

A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?

A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.

We are China Flexible Flame Retardant Electric PV Wire 1.5MM 2.5MM Environmental Protection manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
