Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable

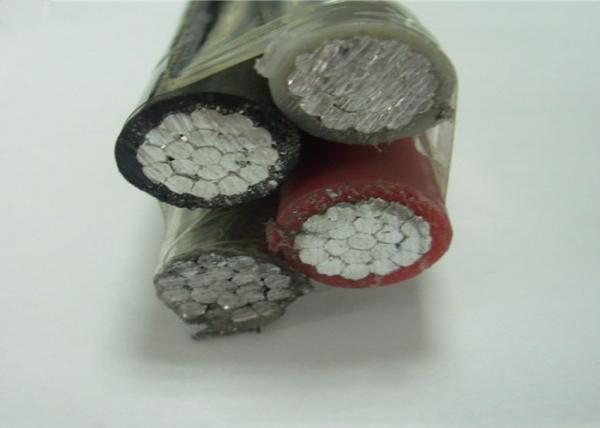

Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable image

Get a Quote Email to us

Model Number :SAC SPACED AERIAL CABLE

Certification :ISO9001, CE

Place of Origin :Henan, China

MOQ :1000m

Payment Terms :L/C, T/T, Western Union

Supply Ability :50000 Meter/Meters per Month SAC space aerial cable

Delivery Time :1-4 weeks

Packaging Details :Roll/Wooden Reel/Iron-wooden Reel/Steel Reel

Name :AAC Conductor Aerial Bundle Cable

Conductor :AAC Conductor

Insulation :XLPE

Jacket :PE

Sample :Freely supplied

Core :1, 2, 3

Voltage :33KV

Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable

1. ABC Power Cable Application

2. ABC Power Cable Applicable Standard

ASTM B230,ICEA S 66-524 , IEC 60228, IEC60502-2

3. ABC Power Cable Structure:

20KV SPACER CABLE

Cable Size	Conductor Construction		Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
Cable Size	Stranding No.	Overall dia.	Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
mm2	mm	mm	mm	mm	mm	mm	Ω/km
50	≥6	7.7-8.6	0.4	3.2	3.2	21.8	0.641
70	≥12	9.3-10.2	0.4	3.2	3.2	23.5	0.443
95	≥15	11.0-12.0	0.4	3.2	3.2	25.2	0.32
120	≥15	12.3-13.5	0.4	3.2	3.2	26.6	0.253
150	≥18	13.7-15.0	0.4	3.2	3.2	28	0.206
185	≥30	15.3-16.8	0.4	3.2	3.2	29.8	0.164

33KV SPACER CABLE

Cable Size	Conductor Construction		Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
Cable Size	Stranding No.	Overall dia.	Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
mm2	mm	mm	mm	mm	mm	mm	Ω/km
50	≥6	7.7-8.6	0.4	4.5	3.2	24.4	0.641
70	≥12	9.3-10.2	0.4	4.5	3.2	26.1	0.443
95	≥15	11.0-12.0	0.4	4.5	3.2	27.8	0.32
120	≥15	12.3-13.5	0.4	4.5	3.2	29.2	0.253
150	≥18	13.7-15.0	0.4	4.5	3.2	30.6	0.206
185	≥30	15.3-16.8	0.4	4.5	3.2	32.4	0.164

Packing&Shipping

Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.

Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.

We are China Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable
