FRC Heat Resistant Cable , Fireproof Electrical Cable 1.5mm – 800mm 90℃ Temperature

 China FRC Heat Resistant Cable , Fireproof Electrical Cable 1.5mm – 800mm 90℃ Temperature supplier

FRC Heat Resistant Cable , Fireproof Electrical Cable 1.5mm – 800mm 90℃ Temperature image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
CE/KEMA/ISO/PCCC

Place of Origin :
China

MOQ :
1000m

Price :
USD0.03-5.0

Supply Ability :
10KM per Week

Delivery Time :
As per schedule

Packaging Details :
100m/roll or customized

Color :
Customized

Size :
1.5mm2 -800mm2

Rated Voltage :
0.6/1kV

Insulation :
PVC

Sample :
Optional

Number of cores :
1,2,3,4,5

Temperature :
90℃

Electrical FRC 4 Core Heat Resistant Cable 1.5mm – 800mm 90℃ Temperature

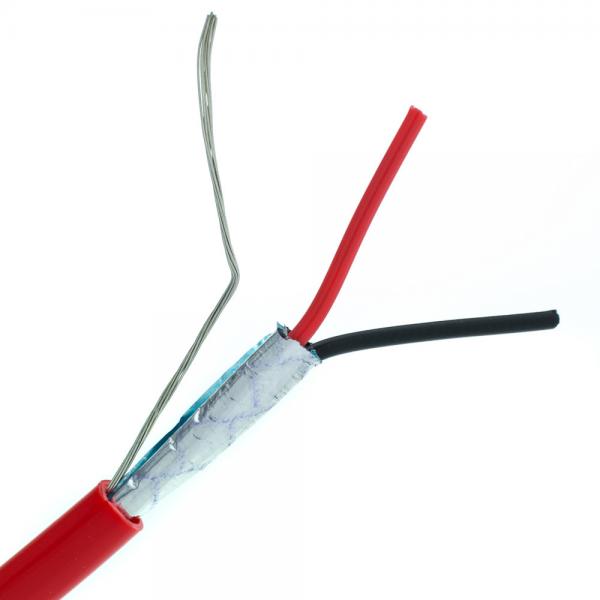

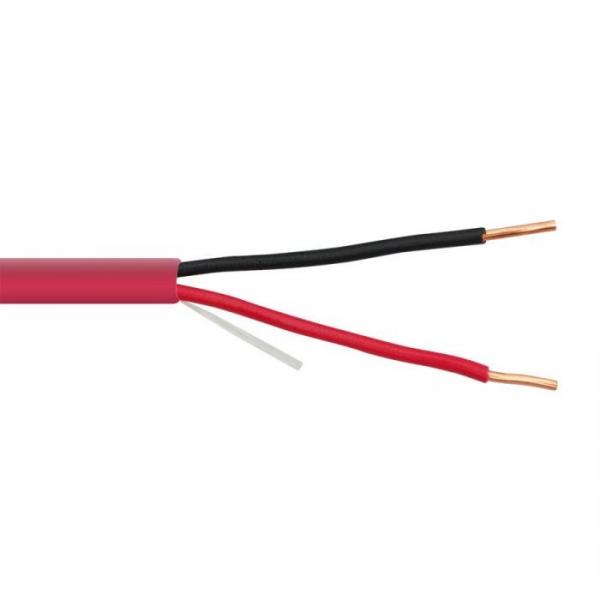

Cable Structure

Conductor : Class 1,2,5 Flexible Copper Conductor
Screen: Mica tape
Insulation: PVC or LSZH PO
Sheath:PVC: (Optional)
Rated Voltage : 450/750V

Standard :

IEC 60502,60331 IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

CE, CCC, KEMA

Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: XLPE/A

Inner Covering: LSOH

Sheath: LSOH , black

Applications

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Certificates

CE, RoHS, CCC, KEMA and more others at request

Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C
mm mm kg/km kV/5min In air(A) In soil(A)
1×1.5 0.7 1.8 7.7 81 12.1 3.5 22 33
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
4×2.5+1×1.5 0.7 1.8 16.5 313 7.41 26 35
4×4+1×2.5 0.7 1.8 17.7 424 4.61 34 45
4×6+1×4 0.7 1.8 19.1 535 3.08 43 57
4×10+1×6 0.7 1.8 22.1 760 1.83 60 77
4×16+1×10 0.7 1.8 25.1 1071 1.15 83 105
4×25+1×16 0.7 1.8 29 1556 0.727 105 125
4×35+1×16 0.9 1.9 31.4 1976 0.524 125 155
4×50+1×25 1 2.1 36 2689 0.387 160 185
4×70+1×35 1.1 2.2 41.1 3719 0.268 200 225
4×95+1×50 1.1 2.4 46.3 4903 0.193 245 270
4×120+1×70 1.2 2.5 51 6165 0.153 285 310
4×150+1×70 1.4 2.7 55.8 7431 0.124 325 345
4×185+1×95 1.6 2.9 62.1 9192 0.0991 375 390
4×240+1×120 1.7 3.1 68.8 11860 0.0754 440 450

Operating characteristics

1, Long-term allowable operating temperature of cable conductor ≤70°C
2, Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s):≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.
3, The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of it’s outer diameter ; for multi-core unarmored cable, should be no less than 15 times of it’s outer diameter
4, With flame-retardant property,ZA,ZB,ZC,ZD are 4 types
5, The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
