Galvanized Anti Twist Weave Steel Non Rotating Wire Rope

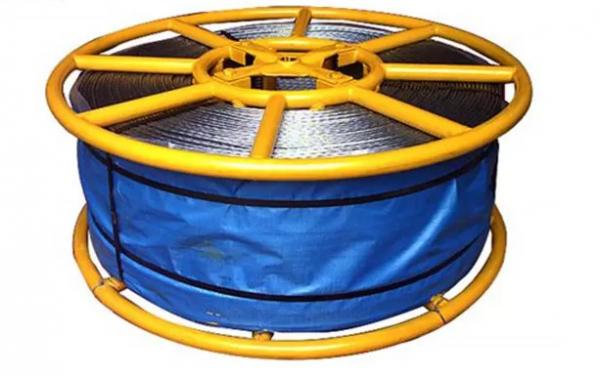

Galvanized Anti Twist Weave Steel Non Rotating Wire Rope image
Brand Name :
Suntech
Model Number :
Wire Rope
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
100m
Price :
Get newest price
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 meter per month
Delivery Time :
7-15 days after payment
Packaging Details :
Steel Drums and Containers
Name :
steel wire cable
Function :
Tension Stringing
Surface Treatment :
Galvanised with Oiled
Usage :
Construction Site
Item :
Anti Twist Wire Rope
Wire Material :
Steel Wire Rope
Galvanized Anti Twist Wire Rope Weave Steel Non Rotating Wire Rope
High Strength Pilot Wire are braided with fine-quality zinc-plated wires (8*19; 8*19W; 12*19W; 8*25Fi; 12*29Fi; 18*29Fi, etc), which is also called pilot wire, pilot rope, Anti-twisting Braided Wire Rope, High Strength Pilot Wire Rope or Anti-twisting Pilot Wire. It is coupled with hydraulic puller, hydraulic tensioner or engine tractor to pull conductor over the steel tower or concrete pole. It is very efficient and fast. It has different features as follows.
Features: Square or hexagon is braided with four-strand, six-strand or nine-strand twisting with each other leftwards or rightwards. It is relative on the section. The twisting force on the section can be released each other whether it receives a force or not. The moment of twisting is naught for the wire rope.
Applications:
The special non-rotating braided steel wire rope is widely used in power line stringing operations, for pulling conductors, OPGW cable, ADSS,500kv traction rope, etc.
Structural forms for wire ropes (in cross section)
1 Four-sided eight strands
2 Four-sided twelve strands
3 Six-sided twelve strands
Technical Data
| Product No. | Structure | Diameter(mm) | Single bundle diameter(mm) | Breaking Force(KN) |
| 80237 | Four Square eight shares | 7 | 2.0 | 28.6 |
| 80238 | 9 | 2.5 | 45.3 | |
| 80239 | 11 | 3.0 | 65.2 | |
| 80240 | 13 | 3.5 | 88.1 | |
| 80241 | 15 | 4.0 | 116.6 | |
| 80242 |
Six Square twelve shares |
9 | 2.0 | 20.27 |
| 80243 | 11 | 2.5 | 92.27 | |
| 80244 | 13 | 3.0 | 110.26 | |
| 80245 | 15 | 3.2 | 130.52 | |
| 80246 | 17 | 3.5 | 151.20 | |
| 80247 | 20 | 4.2 | 224.4 | |
| 80248 | 22 | 4.8 | 307.2 | |
| 80249 | 24 | 5.1 | 343.34 | |
| 80250 | 26 | 5.6 | 382.26 |
We are China Galvanized Anti Twist Weave Steel Non Rotating Wire Rope manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
