Galvanized Steel Core Wire for ACSR Conductor from 1.0-5.5mm with Different Tensile Strength

 China Galvanized Steel Core Wire for ACSR Conductor from 1.0-5.5mm with Different Tensile Strength supplier

Galvanized Steel Core Wire for ACSR Conductor from 1.0-5.5mm with Different Tensile Strength image

Get a Quote Email to us

Brand Name :
Litong Global

Model Number :
LT-025

Certification :
ISO9001-2008

Place of Origin :
Anhui,China

MOQ :
Negotiable

Price :
Negotiable

Supply Ability :
400tons/day

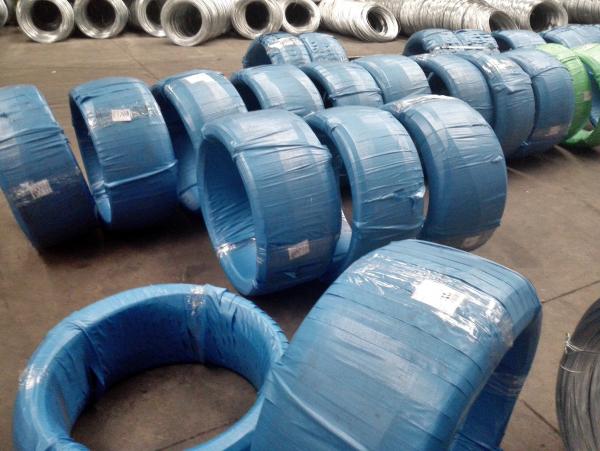

Packaging Details :
Standard export packing in coil

Material :
Carbon Steel 45# 60# 70#80#

Standard :
AISI, ASTM, BS, DIN, GB, JIS

Type :
Galvanized

Wire Gauge :
1.24-5.5mm

Main Structure :
1*7,1*19

Alloy Or Not :
Non-alloy

Certificate :
ISO9001:2008

Galvanized Steel Core Wire for ACSR Conductor with different Grade:Tensile Strength

(1)Production capacity:400ton/day
(2)MOQ:1000kg
(3)Delivery:5~15 Working days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.

GSW (Galvanized Steel Wire)
1. Standards
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors

JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead

2.Technical Data
Hot-Dipped Galvanized steel wire

Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Construction:1×3,1×7,1×19.

Grade

Dia.

(mm)

Tensile Strength

Not less

(Mpa)

Stress at elongation of 1%

Not less

(Mpa)

Elongation

L0=250mm

Not less

Torsion

Not less

Times/360°

Mandrel

Dia

≥1.24-2.25 1340 1170 3.0 16 1

Normal

≥2.25-2.75 1310 1140 3.0 16 1
≥2.75-3.00 1310 1140 3.5 16 1
≥3.00-3.50 1290 1100 3.5 14 1
≥3.5-4.25 1290 1100 4.0 12 1
≥4.25-4.75 1290 1100 4.0 12 1
≥4.75-5.5 1290 1100 4.0 12 1

High

≥1.24-2.25 1450 1310 2.5 16 1
≥2.25-2.75 1410 1280 2.5 16 1
≥2.75-3.00 1410 1280 3.0 16 1
≥3.00-3.50 1410 1280 3.0 14 1
≥3.5-4.25 1380 1240 3.0 12 1
≥4.25-4.75 1380 1170 3.0 12 1
≥4.75-5.5 1380 1170 3.0 12 1

Extra-

High

≥1.24-2.25 1620 1450 2.0 14 1
≥2.25-2.75 1590 1410 2.0 14 1
≥2.75-3.00 1590 1410 2.5 12 1
≥3.00-3.50 1550 1380 2.5 12 1
≥3.5-4.25 1520 1340 2.5 10 1
≥4.25-4.75 1520 1340 2.5 10 1
≥4.75-5.5 1520 1270 2.5 10 1
Galvanized Steel Wire Strand ASTM A-475
Number of Wire(Dia.)

Approx.Strand

Dia.

Siemem Martin Grade High Strength Grade

Extra-high

Strength Grade

Approx.Weight

Inch mm KN KN KN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.4 209.066 325.61 464.839 2384
37/3.63 1 25.4 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262 407.457 581.827 4006
37/4.55 11/4 31.75 324.72 505.318 721.502 4833
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
3. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
4.Production process:
5.Trade Terms:
Min Order Qty: 1FCL / 25T
Delivery Time: 10-15 days
Price Terms: FOB CFR CIF
Payment Terms: TT / LC

6.FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.

Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.

Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.

If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.

7.Contact us:

We are China Galvanized Steel Core Wire for ACSR Conductor from 1.0-5.5mm with Different Tensile Strength manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
