GJPFH Indoor Breakout 96 Cores LSZH Fiber Optic Cable , Fiber Breakout Cable
GJPFH Indoor Breakout 96 Cores LSZH Fiber Optic Cable , Fiber Breakout Cable image
Brand Name :
Geto Telecom
Model Number :
GJPFH
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
Indoor Multi Core Mini Breakout Optical Fiber Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-96 Cores
Application :
vertical and horizontal wiring of buildings.
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
GJPFH Indoor breakout fiber optic cable
Description

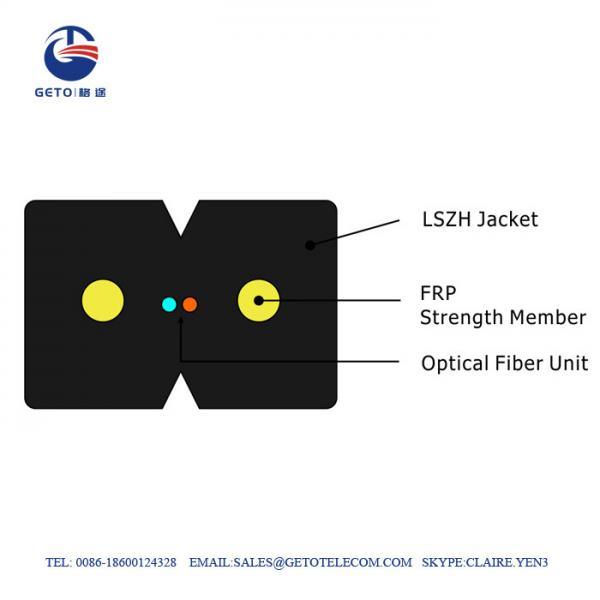

GJPFH fiber optic cable The fiber cores is in the central of micro loose tube, the micro tube is make of low-smoke zero halogen(LSZH) material. Two FRP tubes are used as tensile elements at the two side of the cable. The cable outer sheath is made of white low-smoke halogen-free polyolefin, and two protruding lines are added on the surface of the cable sheath which is used for cable positioning identification when branching the core.
Features:
- Accurate process control ensuring good mechanical and temperature performances
- Good structure design, easy for branching and splicing
- Small size and light weight, easy for installation
- LSZH sheath ensuring good flame-retardant performance
- Especially applicable to vertical wiring in buildings
Technical Parameters(Typical Value):
| No. of cable | 36 | 72 | ||||
| Fiber Model | G.657A2 | |||||
| Module | Material | LSZH | ||||
| Thickness | 0.17(±0.02)mm | |||||
| Diameter | 0.9(±0.05)mm | |||||
| Strength Member | Material | FRP | ||||
| Diameter | 1.0(±0.05)mm | |||||
| No. | 2 | |||||
| Outer Sheath | Material | LSZH-FR | ||||
| Color | White | |||||
| Cable Diameter | 10.5±0.5 | 11.5±0.5 | ||||
|
Max. allowable tension (Short-term) |
600N | |||||
|
Max. allowable tension (Long-term) |
200N | |||||
| Crush resistance test | 1000N/10cm | |||||
| Min. bending radius | Static | 105mm | 115mm | |||
| dynamic | 210mm | 230mm | ||||
|
Temperature range (℃) |
Installation | -5~+60 | ||||
| Transport&Storage | -40~+70 | |||||
| Operation | -5~+60 | |||||
Fibre Colours
| No. | 1 | 2 | 3 | 4 |
| Color | Red | Blue | Green | yellow |
Module Colours
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
| No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
| No. | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | Aqua | Pink |
Note:Othertypes of fiber can be provided according to the customer’s demands.
