GJYXFCH/GJYXCH FTTH Optic Fiber Cable FTTH Fiber Optic Cable
GJYXFCH/GJYXCH FTTH Optic Fiber Cable FTTH Fiber Optic Cable image
Brand Name :
Geto Telecom
Model Number :
GJYXFCH/GJYXCH
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
FTTH Optic Fiber Cable FTTH Fiber Optic Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
Description
GJYXFCH/GJYXCH FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.

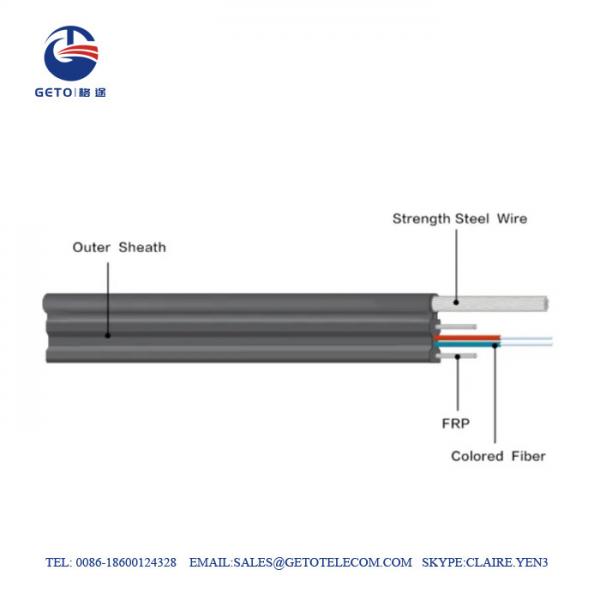

The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) or Steel Wire strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.
Characteristics
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meet the requirements of relevant standards;
· The mechanical characteristics of jacket meet the requirements of relevant standards;
· Soft, flexible, easy to lay and splice, and with big capacity data transmission;
· Meet various requirements of market and clients.
Specification
| Item | Parameters | |||
| Fiber | Color | Natural color | All colors display | |
| Number of cores | 1 | 2 | 4 | |
|
Strength member |
Material | Phosphating steel wire | ||
| Diameter (mm) | 0.45 | |||
| Outer jacket | Material | LSZH Oxygen index≥25%) | ||
| Color | White | |||
| Cable diameter(mm) | 2.0±0.1*3.0±0.1 | |||
|
Min. bending radius |
Static | 15mm | ||
| Dynamic | 30mm | |||
| Tensile performance | Short term | 200N | ||
|
Crush |
Short term | 2200N/100mm | ||
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
Contact us
Email: [email protected]
Whatsapp/Tel: 86-18600124328
Web: www.getotelecom.com
Company
We are China GJYXFCH/GJYXCH FTTH Optic Fiber Cable FTTH Fiber Optic Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
