GYTC8S self supporting Outdoor Aerial Fiber Optic Cable

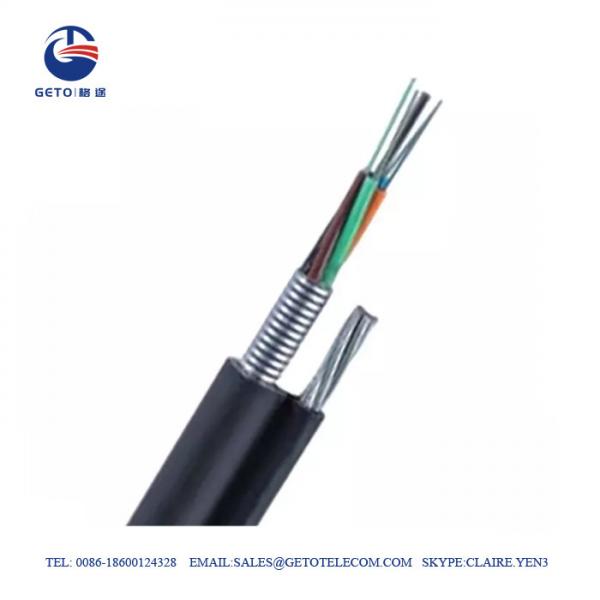

GYTC8S self supporting Outdoor Aerial Fiber Optic Cable image
Brand Name :
Geto Telecom
Model Number :
GYTC8S
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
Fiber Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
Description
GYTC8S optical fibre (aerial fiber) is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.
The stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath provide crush resistance and gun shot resistance features. The steel-wire as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Specification
GYTC8S aerial fiber cable (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive sheath,)
Standards: YD/T 1155-2011 ‘8’ layer self-supporting optical cable for telecommunications
| Fiber Count | Structure | Fibers/ tube | Loose tube diameter (mm) | CSM diameter / pad diameter (mm) | Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable Weight (kg/km) |
| 4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 147 |
| 36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 9.4 ±0.5/16.3 ±0.8 | 162 |
| 48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6±0.1 | 9.7 ±0.5/16.6 ±0.8 | 162 |
| 72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.6±0.1 | 10.4 ±0.5/17.3 ±0.8 | 185 |
| 96 | 1+8 | 12 | 2.0±0.1 | 2.2/3.5 | 1.6±0.1 | 12.0 ±0.5/19.2 ±0.8 | 223 |
