H05V-U / H07V-U/R / H05V-K / H07V-K PVC Insulated Non-sheathed Single Core Cables with Flexible Copper Conductor

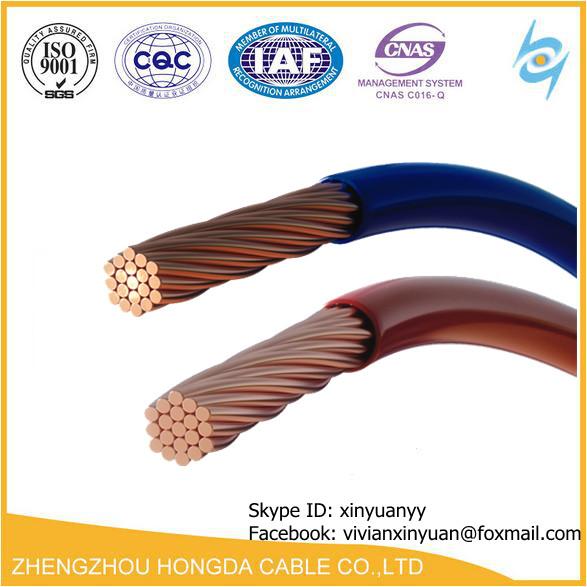

H05V-U / H07V-U/R / H05V-K / H07V-K PVC Insulated Non-sheathed Single Core Cables with Flexible Copper Conductor image
Brand Name :
Hongda
Model Number :
BV / BVR / ZR-BV / ZR-BVR / NH-BV
Certification :
ISO, CCC
Place of Origin :
Henan China
MOQ :
100 meters
Price :
USD0.5~15 per meter
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000km per month
Delivery Time :
10-15 days
Packaging Details :
100m/coil, 200m/coil, 500m/drum, 1000m/drum
Conductor material :
Copper
Insulation Color :
Black, Blue, Green, Red, Green/Yellow
Insulation Material :
PVC
Rated voltage :
300/300V, 300/500V, 450/750V
Packing :
100m/coil, 200m/coil, 500m/drum, 1000m/drum
H05V-U / H07V-U/R / H05V-K / H07V-K PVC Insulated Non-sheathed Single Core Cables with Flexible Copper Conductor
Single Core Flexible Cables
Features
- Higher safety factors
- Compact construction
- Choice of superior insulation systems for meeting IEC classification Temp, Protection etc.
Technical Specification
Insulation : PVC insulation upto 4sq. mm. 6sq. mm. and above generally available with HRPVC insulation or as per customer order.
Standard colours : Grey, Red, Blue, Black, other colours as per order.
Standard Packing : Upto 10sq. mm. -100 mtr. Coils 116-130sq. mm. We can provide Longer lengths on order.
PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z – Length to the client's requirement.
AVAILABLE COLORS:
Cables (Sizes 20 to 10 AWG): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 8 to 2 AWG): Black, White, Blue and Red.
Cables (Sizes 1 to 1000 MCM): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT
an style="mso-spacerun:'yes';font-family:Arial;color:rgb(0,0,0);font-size:10.5000pt;mso-font-kerning:0.0000pt;" >B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z – Length to the client's requirement.
AVAILABLE COLORS:
Cables (Sizes 20 to 10 AWG): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
| SIZE AWG O MCM |
CROSS SECTION AL mm2 |
STRANDING Number of wire x diameter mm. |
INSULATION THICKNESS mm. |
EXTERNAL DIAMETER mm |
TOTAL WEIGHT Kg/Km |
AMPACITY for 1 conductor in free air Amp. |
AMPACITY for 3 conductors in conduit Amp. |
PACKAGING |
| 14 | 2,08 | 1 x 1,63 | 1,14 | 3,91 | 31,60 | 30 | 20 | A,B |
| 12 | 3,31 | 1 x 2,05 | 1,14 | 4,33 | 44,50 | 35 | 25 | A,C |
| 10 | 5,26 | 1 x 2,59 | 1,14 | 4,87 | 64,40 | 50 | 35 | A,D |
| 8 | 8,34 | 1 x 3,26 | 1,52 | 6,30 | 104,50 | 70 | 50 | A,B |
| 14 | 2,08 | 7 x 0,62 | 1,14 | 4,14 | 33,20 | 30 | 20 | A,B |
| 12 | 3,31 | 7 x 0,78 | 1,14 | 4,62 | 46,90 | 35 | 25 | A,C |
| 10 | 5,26 | 7 x 0,98 | 1,14 | 5,22 | 67,50 | 50 | 35 | A,D |
| 8 | 8,37 | 7 x 1,23 | 1,52 | 6,73 | 116,60 | 70 | 50 | A,B,E |
| 6 | 13,30 | 7 x 1,55 | 1,52 | 7,69 | 170,40 | 95 | 65 | A,E |
| 4 | 21,15 | 7 x 1,96 | 1,52 | 8,92 | 255,50 | 125 | 85 | A,E |
| 3 | 7×2.2 | 1,52 | ||||||
| 2 | 33,62 | 7 x 2,47 | 1,52 | 10,45 | 388,90 | 170 | 115 | A,E |
| 1 | 42,36 | 7 x 2,78 | 2,03 | 12.4 | 482,90 | 195 | 130 | A,D,E |
| 1/0 | 53,49 | 19 x 1,89 | 2,03 | 13,51 | 621,00 | 230 | 150 | D,E,Z |
| 2/0 | 67,43 | 19 x 2,12 | 2,03 | 14,66 | 778,00 | 265 | 175 | D,E,Z |
| 3/0 | 85,01 | 19 x 2,39 | 2,03 | 16,01 | 934,00 | 310 | 200 | D,E,Z |
| 4/0 | 107,20 | 19 x 2,68 | 2,03 | 17,46 | 1159,00 | 360 | 230 | D,E,Z |
| 250 | 127,00 | 37 x 2,09 | 2,41 | 19,45 | 1368,00 | 405 | 255 | Z |
| 300 | 152,00 | 37 x 2,29 | 2,41 | 20,85 | 1623,00 | 445 | 285 | Z |
| 350 | 177,00 | 37 x 2,47 | 2,41 | 22,11 | 1876,00 | 505 | 310 | Z |
| 400 | 203,00 | 37 x 2,64 | 2,41 | 23,30 | 2128,00 | 545 | 335 | Z |
| 500 | 253,00 | 37 x 2,95 | 2,41 | 25,47 | 2631,00 | 620 | 380 | Z |
| 600 | 304,00 | 37 x 3,23 | 2,79 | 28,19 | 3174,00 | 690 | 420 | Z |
| 650 | 329,00 | 37 x 3,37 | 2,79 | 29,17 | 3345,00 | 725 | 440 | Z |
| 700 | 355,00 | 37 x 3,49 | 2,79 | 30,01 | 3609,00 | 755 | 460 | Z |
Electric Cable Markings
All 4 core armoured Cable will carry the following items on the surface print:
Manufacturers Name
Electric Cable
Voltage Designation
British Standard Number
Cross Sectional Area
No. of Cores
Type of Cable
Date
NOTE: Items 1 to 4 will also be embossed on the Oversheath of the cable
Some special cable marking accept customized.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below:
Any other information of pls contact with me:
Vivian Yuan | Sales Director
Zhengzhou Hongda Cable CO., LTD.
Landline: +86-371-6097 5616 | Fax: +86-371-6097 5616
Email: xinyuanyy92(at)gmail.com | Skype ID: xinyuanyy
Cellphone/WhatsApp/Wechat/ICQ: +86 158 3829 0725
Address: Houzhai Industrial Park, Erqi Zone, Zhengzhou, China,450000
We are China H05V-U / H07V-U/R / H05V-K / H07V-K PVC Insulated Non-sheathed Single Core Cables with Flexible Copper Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
