High Carbon Galvanized Steel Wire
High Carbon Galvanized Steel Wire image
Brand Name :
Litong Global
Model Number :
LT-1611301
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
20tons
Price :
US$1-1000/ton
Supply Ability :
400tons/day
Packaging Details :
Standard export seaworthy packing
Steel Grade :
#55,#60,#65,#70,#72A,#72B,#80
Standard :
AISI|ASTM|BS|DIN
Type :
Galvanized
Alloy Or Not :
Non-alloy
Special Use :
Cold Heading Steel
Application :
ACSR Conductor/guy wire/stay wire/overhead transmission line/messenger
Supply ability :
400tons/day
Loading capacity :
25tons/20″
Packing :
Standard export seaworthy packing
Certificate :
ISO9001-2008
High Carbon Galvanized Steel Wire
Technical Parameters
Galvanized Steel Wire as per ASTM B 498
| Wire Diamater(mm) | Diamater Tolerance(mm) | Weight of Zinc-coating(g/m2) | Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
| 1.57-1.90 | +0.04,-0.03 | 210 | 1310 | 1450 | 3.0 |
| Over 1.9-2.3 | +0.04,-0.03 | 220 | 1310 | 1450 | 3.0 |
| Over 2.3-2.7 | +0.05,-0.05 | 230 | 1280 | 1410 | 3.5 |
| Over 2.7-3.1 | +0.05,-0.05 | 240 | 1280 | 1410 | 3.5 |
| Over3.1-3.5 | +0.08,-0.05 | 260 | 1240 | 1410 | 4.0 |
| Over 3.5-3.9 | +0.08,-0.05 | 270 | 1240 | 1410 | 4.0 |
| Over 3.9-4.5 | +0.1,-0.08 | 275 | 1170 | 1380 | 4.0 |
| Over 4.5-4.8 | +0.1,-0.08 | 300 | 1170 | 1380 | 4.0 |
Galvanized Steel Wire Strand as per ASTM A 475
| Norminal Diamater of Strand | No. of Wires | Diamater of Wire | Tolerance of Wire | Weight | Zinc-coating | Breaking Loading |
| mm | – | mm | mm | Kg/Km | g/m2 | KN |
| 3.18 | 7 | 1.04 | ±0.05 | 48 | 122 | 8.14 |
| 3.97 | 7 | 1.32 | ±0.05 | 76 | 122 | 13.078 |
| 4.76 | 7 | 1.57 | ±0.08 | 109 | 153 | 17.748 |
| 5.56 | 7 | 1.83 | ±0.08 | 146 | 153 | 24.02 |
| 6.35 | 7 | 2.03 | ±0.08 | 180 | 183 | 29.581 |
| 7.14 | 7 | 2.36 | ±0.10 | 244 | 214 | 39.812 |
| 7.94 | 7 | 2.64 | ±0.10 | 305 | 244 | 49.82 |
| 9.52 | 7 | 3.05 | ±0.10 | 407 | 259 | 68.503 |
| 11.11 | 7 | 3.68 | ±0.13 | 595 | 275 | 92.523 |
| 12.7 | 7 | 4.19 | ±0.13 | 770 | 275 | 119.657 |
Projects for our Galvanized steel wire/Strand
Overhead Transmission Lines
One of our core focusareas is high voltage and extra high voltage transmission line projects.
Our technical capabilities,financial viability and superior execution skills ensures cutting-edge project development and implementation.

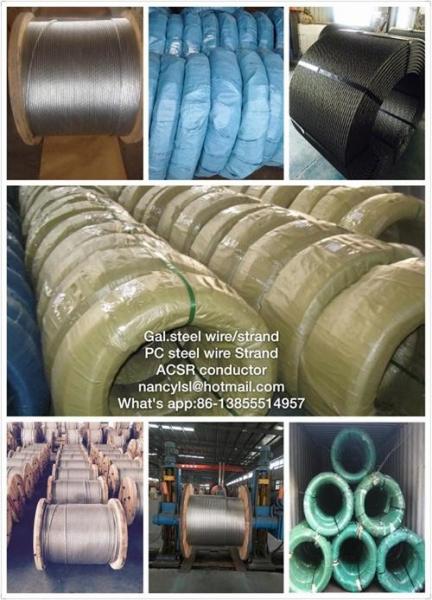

Packing&Loading
Welcome to enquiry our high carbon galvanized steel wire
Attn:Ms Nancy
What'app:0086-13855514957
E-mail:[email protected]
We are China High Carbon Galvanized Steel Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
