High Speed Network Cable , Cat5e SFTP LAN Cable 550Mbps Copper Conductor

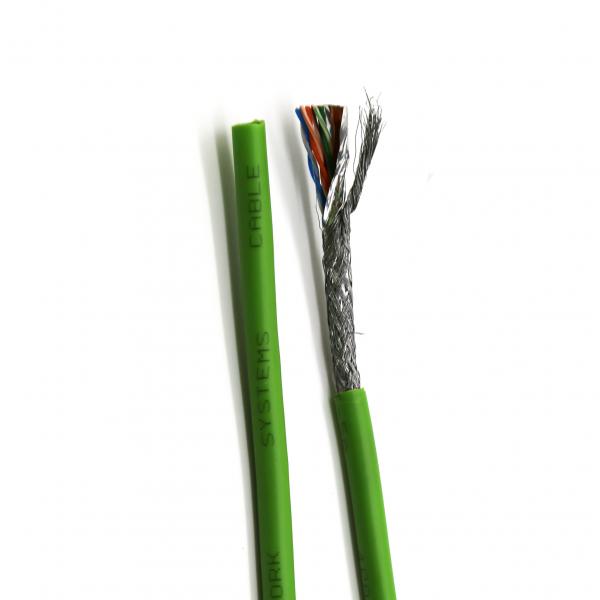

High Speed Network Cable , Cat5e SFTP LAN Cable 550Mbps Copper Conductor image
Brand Name :
JINHUANYU CABLE
Model Number :
Cat5e SFTP
Certification :
CE,CB,ROHS
Place of Origin :
SHENZHEN, CHINA
MOQ :
10 boxs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 kilometer/day
Delivery Time :
5-7days
Packaging Details :
305m/Box
Product name :
High speed networking cable 550Mbps copper conductor Cat5e SFTP LAN Cable
Conductor :
bare copper
AWG :
24
Conductor Dia(mm) :
0.517+-0.02
Insulation :
HDPE
Jacket :
PVC
Application :
Networking,Telecommunication,Computer,CCTV,outdoor
OEM order :
YES
High speed networking cable 550Mbps copper conductor Cat5e SFTP LAN Cable
1. Application:
Product compatibility and application. It can be used for circuit conversion and connection of communication equipment and other electronic equipment.Suitable for wired connection devices such as computers, switches, notebooks, routers, TVs, monitors, etc. Also suitable for a variety of green projects, such as office, home improvement and hotels.
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
3. Construction
|
SFTP, Aluminum Foil |
|||
4. Characteristics
- The network cable uses a high-purity oxygen-free copper conductor. The signal transmission is stable and the attenuation is reduced.
-
Imported ultra low dielectric constant polyethylene insulation.
-
The jacket is made of flame retardant, environmentally friendly, corrosion and oil resistant polyethylene.
-
The unique soft, antioxidant design gives the appearance a crystal clear look.
-
Using a precision inkjet printer, the length is very accurate.
Reference Standard: EIA/TIA 568B & ISO/IEC 11801.
Remark: The cable can be of flame retardant, fire resistance and waterproof.
5. Electrical Performance
-
Spark test : 850Vac
-
Dielectric Strength: 2500v DC/3second
-
Insulation Resistance Test: Min.150Mohm/km
-
Conductor Resistance: Max9.38ohm/100m at 20 °c
-
Resistance Unbalance: Max.5%
-
Capacitance Unbalance: Max330PF/100M
-
Mutual Capacitance: Max5600PF/100M
-
Impedance: 722KHZ 102ohm+-15%
1~123MHZ 100ohm+-15%
6. Product Describe
