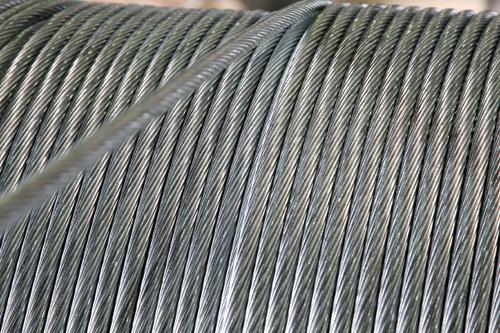

High Strength Galvanized Steel Overhead Ground Wire Strand 1000 Mpa-1650 Mpa
High Strength Galvanized Steel Overhead Ground Wire Strand 1000 Mpa-1650 Mpa image
Place of Origin :
Anhui
Brand Name :
Litong
Model Number :
LT-1301
Certification :
ISO9001
Price :
Negotiable

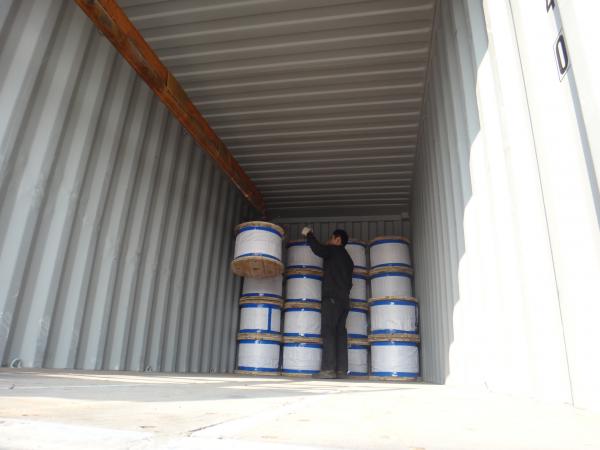

Packaging Details :
Packed on wooden reel with proof paper
Delivery Time :
15days after confirmed order
Payment Terms :
TT,,LC,DDU
Supply Ability :
12000tons/year
MOQ :
Negotiable
Quick Details
· Steel Grade: 45#; 55#, 60#, 70#
· Standard: ASTM, BS,GB/T
· Wire Gauge: 1.57mm-4.0mm
· Place of Origin: Shanghai, China (Mainland)
· Type: Drawn Wire
· Application: Manufacturing
· Alloy Or Not: Non-alloy
· Special Use: Free Cutting Steel
· Model Number: 1.57mm-4.0mm
· Brand Name: Litong Global
· Coating of Galvanized Steel Core Wire:100g/m2~320g/m2
· Tensile Strength of Steel Core Wire: 1000 Mpa-1750 Mpa
· Stess at 1% Extension: 1000 Mpa-1650 Mpa
· Standard of Galvanized Steel Core Wire:ASTM B 498; ASTM A 475;
· Packing of Galvanized Steel Core Wire:Coil; Spool
· Departure Port of Steel Core Wire:Wuhu Port,China or Shanghai Port of China
· Structure of Galvanized Steel Core Wire:1*7; 1*19;
· Application of Steel Core Wire: Cable
· Number of Processing line: 15 pieces
|
Type |
1×7 |
Type |
1×19 |
||||||||||
|
Nominal Diameter |
Nominal Area |
Min.Breaking Strength(MPA) |
Nominal Diameter |
Nominal Area |
Min.Breaking Strength(MPA) |
||||||||
|
Single Wire Dia. |
Strand Wire Dia. |
1270 |
1370 |
1470 |
1570 |
Single Wire Dia. |
Strand Wire Dia. |
1270 |
1370 |
1470 |
1570 |
||
|
mm |
Mm2 |
Min. Breaking Load(KN) |
mm |
Mm2 |
Min. Breaking Load(KN) |
||||||||
|
1.6 |
4.8 |
14.07 |
16.40 |
17.70 |
19.00 |
20.80 |
1.6 |
8.0 |
38.20 |
43.6 |
47.10 |
50.50 |
53.90 |
|
1.7 |
5.1 |
15.89 |
18.00 |
20.00 |
21.40 |
22.90 |
1.8 |
9.0 |
48.35 |
55.20 |
59.60 |
63.90 |
68.30 |
|
1.8 |
5.4 |
17.81 |
20.80 |
22.40 |
24.00 |
25.70 |
2.0 |
10.0 |
59.69 |
68.20 |
73.60 |
78.90 |
84.30 |
|
2.0 |
6.0 |
21.99 |
25.60 |
27.70 |
29.70 |
31.70 |
2.2 |
11.0 |
72.22 |
82.50 |
89.00 |
95.50 |
102.00 |
|
2.2 |
6.6 |
26.61 |
31.00 |
33.50 |
35.90 |
38.40 |
2.4 |
12.0 |
85.95 |
98.20 |
105.00 |
113.00 |
121.00 |
|
2.4 |
7.2 |
31.67 |
37.00 |
39.90 |
42.80 |
45.70 |
2.5 |
12.5 |
93.27 |
106 |
114.00 |
123.00 |
131.00 |
|
2.6 |
7.8 |
37.16 |
43.40 |
46.80 |
50.20 |
53.60 |
2.6 |
13.0 |
100.88 |
115 |
124.00 |
133.00 |
142.00 |
|
2.8 |
8.4 |
43.10 |
50.30 |
54.30 |
58.20 |
62.20 |
2.8 |
14 |
116.99 |
133 |
144.00 |
154.00 |
165.00 |
|
3.0 |
9.0 |
49.48 |
57.80 |
62.30 |
66.90 |
71.40 |
3.0 |
15 |
134.30 |
153 |
165.00 |
177.00 |
189.00 |
Contact us:
We are China High Strength Galvanized Steel Overhead Ground Wire Strand 1000 Mpa-1650 Mpa manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
