Hot Dip Galvanized 3 Or 4 Legs Tubular Steel Tower Telecom Antenna Tower

 China Hot Dip Galvanized 3 Or 4 Legs Tubular Steel Tower Telecom Antenna Tower supplier

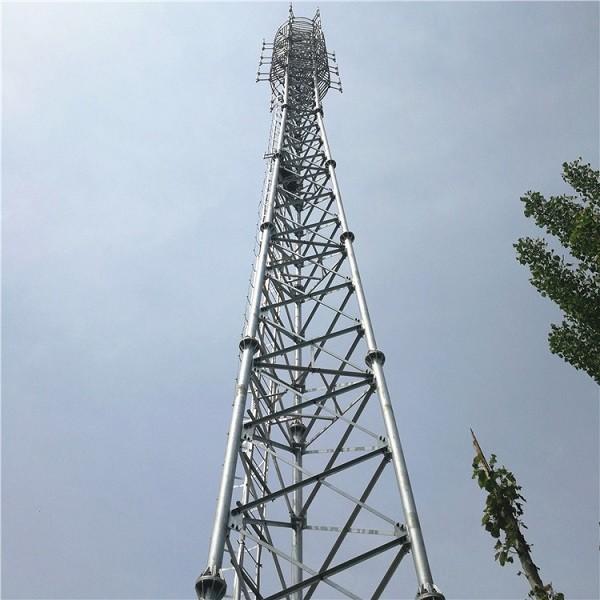

Hot Dip Galvanized 3 Or 4 Legs Tubular Steel Tower Telecom Antenna Tower image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
Antenna Tower

Certification :
ISO

Place of Origin :
China

MOQ :
1 Tower

Price :
Get the newest prices

Payment Terms :
L/C, T/T

Supply Ability :
50000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after deposit

Packaging Details :
Exported Containers

Product Name :
Telecom Antenna Tower

Material :
Steel Q235B/Q345B/Q420

Application :
Telecommunication Steel Tower

Usage :
Telecom Tower

Surface Treatment :
Hot Dip Galvanised

Wind Speed :
120KM/H

Hot Dip Galvanized 3 Or 4 Legs Tubular Steel Tower Telecom Antenna Tower

Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.

Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple structure, and clear force transmission, which can give full play to the material's bearing performance. On the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand, it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure body shape coefficient can significantly reduce the wind load on the tower body.

Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.

Height From 10M-100M or according to client’s requirement
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material Normally Q235B/A36,Yeild Strength≥235MPa
Q345B/A572,Yeild Strength≥345MPa
As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity 10kV to 500kV
Tolerance of the dimension According to client’s requirement
Surface treatment Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles Slip joint, flanged connected
Standard ISO9001:2008
Length of per section Within 13M once forming
Welding Standard AWS(American Welding Society)D 1.1
Production Process Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages Packing with plastic paper or according to client’s requirement
Life Period More than 30 years

We are China Hot Dip Galvanized 3 Or 4 Legs Tubular Steel Tower Telecom Antenna Tower manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
