Hot Dip Galvanized Traffic Signal Pole 4M 6M 8M For Traffic Control System

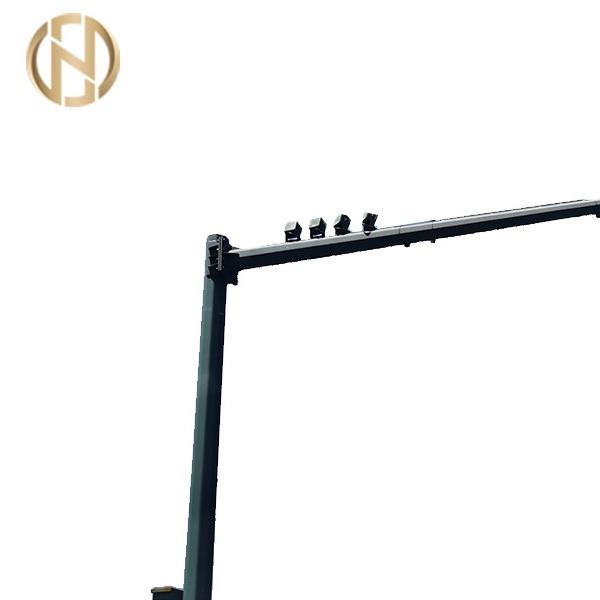

Hot Dip Galvanized Traffic Signal Pole 4M 6M 8M For Traffic Control System image
Brand Name :
FUTAO
Model Number :
4 – 8m Traffic and Signal Lighting Poles
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2 pieces
Price :
$80 – $1000 / piece
Payment Terms :
L/C, T/T
Supply Ability :
1200 pieces every month
Delivery Time :
30-60 workdays
Packaging Details :
40 HC or OT, wrap by mat or straw mat
Height :
6.5m – 8.5m
Arm Length :
4m – 18m
Pole Shaft Thickness :
5 – 12 mm
Mounting Arm Thickness :
4 – 10 mm
Surface Treatment :
Hot Dip Galvanized
Material :
Aluminum, Stainless Steel, Galvanized Steel
Type :
With Single, Double, Tripe, Four Outreach Arms
Application :
Street, Road, Highway, Commercial Areas, Seaport, Airport and etc.
Color :
White, Sliver and many more
Hot Dip Galvanized Traffic Signal Pole 4M 6M 8M For Traffic Control System
Product Description
Traffic lights are an important aspect of any traffic control system. A dependable and sturdy pole is required to support these traffic lights. At Futao Metal, we produce various types of traffic and signal poles including octagonal, cylindrical, and conical shaped poles.
Going one step further, our poles can be designed to have multiple mounting arms if required. All traffic and signal poles shall consist of a single vertical pole, connecting flanges, mounting arms, and anchor bolts. Straight or seamless steel pipes shall be used for the vertical pole and transverse arms. The connection ends of the vertical pole and the transverse arm shall adopt the same steel pipe as the transverse arm and will be protected by stiffeners. The vertical pole and foundation will be connected by a flange and anchor bolts. Horizontal mounting arms are connected to the main vertical pole using a flange and further reinforced using stiffeners.
All welding processes of the vertical pole and its main components shall meet industry standards.
Main Specification Details
|
Protect Name |
4-8m Traffic and Signal Lighting Steel Poles |
|---|---|
|
Max to Min of Height |
6.5m – 8.5m |
|
Max to MIn of Arm length |
4m – 18m |
|
Pole Shaft Thickness |
5mm – 12mm |
|
Mounting Arm Thickness |
4mm – 10mm |
|
Type of Arm |
With Single, Double, Tripe, Four OUtreach Arms |
|
Shape |
Tubular, Polygonal or Conical |
|
Material |
Aluminum, Stainless Steel, Galvanized Steel |
|
Surface Treatment |
Hot Dip Galvanized |
|
Tolerance of Dimensions |
+- 2% |
|
Power |
10kv – 550kv |
|
Standard |
ISO9001 |
|
Application |
Street, Road, Highway, Commerical Areas, Seaport, Airport and etc. |
|
Wind Resistance |
160km/h |
|
Design of Pole |
Against earthquake of 8 grade |
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or mat straw in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
We are China Hot Dip Galvanized Traffic Signal Pole 4M 6M 8M For Traffic Control System manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
