Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod

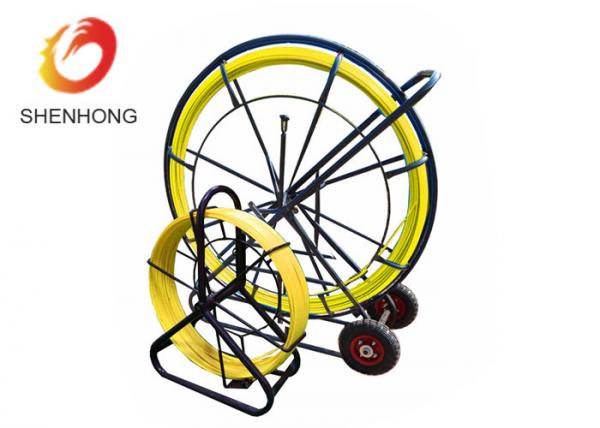

Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod image
Brand Name :
SHENGHONG
Model Number :
BCD
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs/day
Delivery Time :
10 workdays after payment
Packaging Details :
Carton
Product Name :
Continous tracing duct rodder
Type :
Fiberglass Duct Rod
Diameter :
6mm-14mm
Length :
50M-500M
Frame material :
powder coating or hot-dipped galvanized
Material :
ABS surface,Fiberglass,Copper
Continous tracing duct rodder Cable push rod Fiberglass cable conduit rod
Fiberglass duct rod description:
Fiberglass duct rod, sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables or wires inside the duct. what's more, it can be used to located the duct block or damage positions.
It has high safety aspects to be applied to underground applications because of its non-conductivity of
electricity, thus sets a major safety to site workers.
It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in
the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
Fiberglass duct rod features:
1>. Non-alkali fiberglass-durable working life time.
2>. ABS coating–smooth surface,non-conductivity
3>. Inside copper wire–detachable
4>. Tilting handle and rubble wheels–easy to carry and move
Fiberglass duct rod detailed pictures show:
Sizes and Parameters
| Fiberglass reinforced composite core | |
| Rod inside core | E-glassfiber(Content 75%-80%) |
| Rod outside finishing | ABS coating with electrostatic spray painting |
| Density | >1.9g/cm3 |
| Working temperature | -40℃ to +80℃ |
| Minimum pulling strength | 4000N±5% |
| Tensile moujulus | >46.50Mpa |
| Consistency of rod | 137g/m |
| Flexural modulus | >46.50Mpa |
| Elongation at break | 2.5-3% |
| Minmum bending radius | 380mm |
| Polyethylene cover | |
| Tensile strength | >15N/mm2 |
| Environmental stress & crack resistance | >1000hr. |
| Heat stability | ok |
| Carbon black | ok |
| Sizes | |
| Rod diameter | 4mm; 4.5mm; 6mm; 8mm; 9mm; 10mm; 11mm;12mm;13mm;14mm;16mm |
| Rod length | 50m; 60m; 100m; 120m; 150m; 200m; 250m; 300m; 350m |
| Frame size |
No.1: 1.5*1.4*0.5m; No.2: 1.3*1.2*0.5m; No.3: 1.1*1*0.5m; |
Production line:
Packaging and delivery:
We are China Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
