Hot Dipped Galvanized Steel Wire For Aluminium Conductor Steel Reinforced Cable

 China Hot Dipped Galvanized Steel Wire For Aluminium Conductor Steel Reinforced Cable supplier

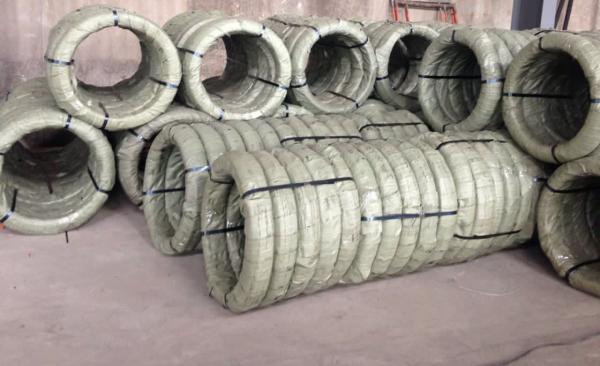

Hot Dipped Galvanized Steel Wire For Aluminium Conductor Steel Reinforced Cable image

Get a Quote Email to us

Brand Name :
Litong Global

Model Number :
LT-003

Certification :
ISO9001-2008

Place of Origin :
Anhui,China

MOQ :
Negotiable

Price :
Negotiable

Packaging Details :
Standard export packing with weight from 100-300kg/coil

Material :
High Carbon Wire Rod

Surface treatment :
Hot-dipped Galvanized

Metal Wire Drawing :
Cold Drawing

Service :
OEM acceptable

Size :
1.57mm-4.8mm

Production Standard :
ASTM B 498

Tensile Strength :
1000-1750MPA

Weight of zinc-coating :
100-300g/m2

Packing :
100-300kg/coil

Loading capacity :
25tons/20″

Galvanized Steel Wire for ACSR Conductor

Product Description
Galvanized Steel Wire,Zinc coated,Guy Wire, Stay Wire,GSW
(1)Production capacity:400ton/day
(2)MOQ:1000kg
(3)Delivery:5~15 Working days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.
GSW (Galvanized Steel Wire)
1. Standards
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
2.Technical Data
Hot-Dipped Galvanized steel wire
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Construction:1×3,1×7,1×19.

Galvanized Steel Wire as per ASTM B 498

Grade

Dia.

(mm)

Tensile Strength

Not less

(Mpa)

Stress at elongation of 1%

Not less

(Mpa)

Elongation

L0=250mm

Not less

Torsion

Not less

Times/360°

Mandrel

Dia

≥1.24-2.25 1340 1170 3.0 16 1

Normal

≥2.25-2.75 1310 1140 3.0 16 1
≥2.75-3.00 1310 1140 3.5 16 1
≥3.00-3.50 1290 1100 3.5 14 1
≥3.5-4.25 1290 1100 4.0 12 1
≥4.25-4.75 1290 1100 4.0 12 1
≥4.75-5.5 1290 1100 4.0 12 1

High

≥1.24-2.25 1450 1310 2.5 16 1
≥2.25-2.75 1410 1280 2.5 16 1
≥2.75-3.00 1410 1280 3.0 16 1
≥3.00-3.50 1410 1280 3.0 14 1
≥3.5-4.25 1380 1240 3.0 12 1
≥4.25-4.75 1380 1170 3.0 12 1
≥4.75-5.5 1380 1170 3.0 12 1

Extra-

High

≥1.24-2.25 1620 1450 2.0 14 1
≥2.25-2.75 1590 1410 2.0 14 1
≥2.75-3.00 1590 1410 2.5 12 1
≥3.00-3.50 1550 1380 2.5 12 1
≥3.5-4.25 1520 1340 2.5 10 1
≥4.25-4.75 1520 1340 2.5 10 1
≥4.75-5.5 1520 1270 2.5 10 1

3. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.

FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.

Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.

Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.

If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.

Competitive Advantage:

1) Short and timely delivery

2) Considerate after-sales service

3) Professional manufacture for Galvanized steel wire strand more than 15years

4) Full set of testing equipment to ensure products’ performance

5) Strict quality control process

6)We are factory and our price is competitive

Contact us:

We are China Hot Dipped Galvanized Steel Wire For Aluminium Conductor Steel Reinforced Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
