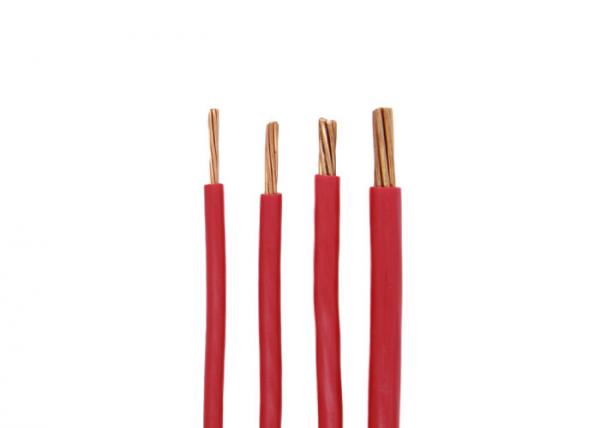

PVC INSULATED CABLE SNGLE CORE CABLEH05V-R/H07V-R
H05V-R/H07V-R CABLE
Application
These cables are used for installation indoors, in cable tubes, exposed or buried in plaster, and in industrial plants or switching stations, underground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.
Standard
BS 6004, VDE 0281-3
Cable Construction
Conductor: Stranded bare copper wire , class 2
Insulation: PVC
Color available: Black/Brown/Blue/Green/Grey/Orange/Red/Yellow ,etc
Technical Characteristics:
Rated voltage: 300/500v (H05V-R)/ 450/750v (H07V-R)
Test voltage: 2000V(H05V-R)/2500V (H07V-R)
Flexing bending radius: 15 x D
Static bending radius: 15 x D
Temperature range: -5℃ to +70℃
Short circuit temperature: 160 ℃
Flame retardant: IEC 60332.1
Parameter
| Conductor size | Conductor | PVC Insulation | Cable overall Dia. | Weight | |||
| AWG | MM2 | Stranding no. | Single Wire dia. | Dia. | Thickness | mm | kg/km |
| 20 | 0.5189 | 7 | 0.31 | 0.93 | 0.6 | 2.1 | 9 |
| 18 | 0.8107 | 7 | 0.39 | 1.17 | 0.6 | 2.4 | 13 |
| 16 | 1.318 | 7 | 0.49 | 1.47 | 0.7 | 2.9 | 19 |
| 14 | 2.075 | 7 | 0.62 | 1.86 | 0.8 | 3.5 | 29 |
| 12 | 3.332 | 7 | 0.78 | 2.34 | 0.8 | 3.9 | 42 |
| 10 | 5.26 | 7 | 0.98 | 2.94 | 0.8 | 4.5 | 61 |
| 8 | 8.37 | 7 | 1.23 | 3.69 | 1 | 5.7 | 98 |
| 6 | 13.3 | 7 | 1.56 | 4.68 | 1 | 6.7 | 147 |
| 4 | 21.15 | 19 | 1.19 | 5.95 | 1.2 | 8.4 | 231 |
| 3 | 26.67 | 19 | 1.34 | 6.7 | 1.2 | 9.1 | 287 |
| 2 | 33.62 | 19 | 1.5 | 7.5 | 1.2 | 9.9 | 352 |
| 1 | 42.41 | 19 | 1.69 | 8.45 | 1.4 | 11.3 | 449 |
| 2/0 | 67.43 | 19 | 2.13 | 10.65 | 1.4 | 13.5 | 690 |
| 4/0 | 107.2 | 19 | 2.68 | 13.4 | 1.6 | 16.6 | 1078 |
| — | 1.5 | 7 | 0.52 | 1.56 | 0.7 | 3 | 21 |
| — | 2.5 | 7 | 0.67 | 2.01 | 0.8 | 3.6 | 33 |
| — | 4 | 7 | 0.85 | 2.55 | 0.8 | 4.2 | 49 |
| — | 6 | 7 | 1.04 | 3.12 | 0.8 | 4.7 | 68 |
| — | 10 | 7 | 1.35 | 4.05 | 1.0 | 6.1 | 114 |
| — | 16 | 7 | 1.71 | 5.13 | 1.0 | 7.1 | 175 |
| — | 25 | 7 | / | 6.0 | 1.2 | 8.8 | 268 |
| — | 35 | 7 | / | 7.0 | 1.2 | 10 | 365 |
| — | 50 | 19 | / | 8.2 | 1.4 | 12 | 520 |
| — | 70 | 19 | / | 9.9 | 1.4 | 13.7 | 714 |
| — | 95 | 19 | / | 11.6 | 1.6 | 15.8 | 961 |
| — | 120 | 37 | / | 13.0 | 1.6 | 17.4 | 1190 |
| — | 150 | 37 | / | 14.4 | 1.8 | 19.5 | 1488 |
