IEC60228 Underground PVC Insulation Armored Power Cable

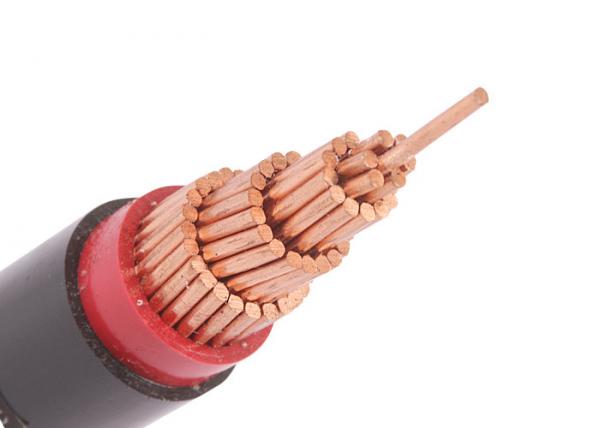

IEC60228 Underground PVC Insulation Armored Power Cable image

Get a Quote Email to us

Brand Name :
SHANCABLE

Model Number :
VV22-0.6-1V

Certification :
ISO,CE,IEC,TUV,KEMA

Place of Origin :
Shanghai, China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
100KM/Week

Delivery Time :
10 Days

Packaging Details :
Wooden Drum

Inner sheath :
PVC

Armored :
Double Steel Tape

Sheath :
PVC or FR-PVC type ST2 to IEC 60502, black

Insulation :
PVC(polyvinyl chloride) rated at 90 OC

Conductor :
Compact stranded copper conductor

Application :
Underground,Industrial

Steel Tape Armored Power Cable CU/PVC/DSTA/PVC 0.6/1KV

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : PVC(polyvinyl chloride) rated at 90 OC

Inner sheath : PVC

Armored : Double Steel Tape.

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Applications

Apply to shafts, water and soil, able to bear the larger positive pressure

Standards

International: IEC 60502, IEC 60228,

China: GB/T 12706, (GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1KV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D for multi core

Certificates

CE, RoHS,KEMA and more others at request

Commercial Items: MOQ: 500m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum

Specifications

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Steel Tape Thickness	Sheath Thickness	Approx. O.D.		Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)Ω /km	Testing Voltage A.C
mm2	pc/mm	mm	mm	mm	mm	Lower Limit (mm)	Upper Limit (mm)	kg/km	Ω /km	kV/5min
1 × 25	7/2.14	0.9	1.0	2×0.2	1.8	14.1	16.2	442.0	0.727	3.5
1 × 35	7/2.52	0.9	1.0	2×0.2	1.8	15.0	17.1	547.0	0.524	3.5
1 × 50	10/2.52	1.0	1.0	2×0.2	1.8	17.1	19.2	688.0	0.387	3.5
1 × 70	14/2.52	1.1	1.0	2×0.2	1.8	18.2	20.5	895.0	0.268	3.5
1 × 95	19/2.52	1.1	1.0	2×0.2	1.8	20.0	22.3	1125.0	0.193	3.5
1 × 120	24/2.52	1.2	1.0	2×0.2	1.8	22.3	24.5	1358.0	0.153	3.5
1 × 150	30/2.52	1.4	1.0	2×0.2	1.8	23.0	25.1	1649.0	0.124	3.5
1 × 185	37/2.52	1.6	1.0	2×0.5	1.8	25.3	27.1	1984.0	0.0991	3.5
1 × 240	48/2.52	1.7	1.0	2×0.5	1.9	28.0	29.8	2489.0	0.0754	3.5
1 × 300	61/2.52	1.8	1.0	2×0.5	1.9	30.0	32.6	3036.0	0.0601	3.5
1 × 400	61/2.97	2.0	1.2	2×0.5	2.1	35.0	37.4	4230.0	0.0470	3.5
1 × 500	61/3.23	2.2	1.2	2×0.5	2.2	39.8	42.1	5194.0	0.0366	3.5
1 × 630	61/3.50	2.4	1.2	2×0.5	2.4	45.0	47.6	6504.0	0.0283	3.5
2 × 4	1/2.25	0.7	1.2	2 × 0.2	1.8	15	17.6	424.0	4.61	3.5
2 × 6	1/2.76	0.7	1.2	2 × 0.2	1.8	16.1	18.4	493.0	3.08	3.5
2 × 10	7/1.38	0.7	2 × 0.4	2 × 0.2	1.8	18.8	20.5	663.0	1.83	3.5
2 × 16	7/1.78	0.7	2 × 0.4	2 × 0.2	1.8	20.9	22.6	844.0	1.15	3.5
2 × 25	7/2.14	0.9	2 × 0.4	2 × 0.2	1.8	23.6	25.3	1154.0	0.727	3.5
2 × 35	7/2.52	0.9	2 × 0.4	2 × 0.2	1.8	25.5	27.2	1431.0	0.524	3.5
2 × 50	10/2.52	1.0	4 × 0.4	2 × 0.2	1.8	25.0	26.7	1589.0	0.387	3.5
2 × 70	14/2.52	1.1	4 × 0.4	2 × 0.2	1.8	26.4	28.1	2243.0	0.268	3.5
2 × 95	19/2.52	1.1	4 × 0.4	2 × 0.2	1.9	29.8	31.5	2909.0	0.193	3.5
2 × 120	24/2.52	1.1	4 × 0.4	2 × 0.2	2	32.2	33.9	3475.0	0.153	3.5
2 × 150	30/2.52	1.4	4 × 0.4	2 × 0.2	2.1	35.4	37.1	4250.0	0.124	3.5
2 × 185	37/2.52	2.0	4 × 0.4	2 × 0.5	2.2	38.8	40.5	5010.0	0.0991	3.5
3 × 4	1/2.25	1.0	1.2	2 × 0.2	1.5	15.2	17.6	489.0	4.61	3.5
3 × 6	1/2.76	1.0	1.2	2 × 0.2	1.5	16.2	18.7	577.0	3.08	3.5
3 × 10	7/1.38	1.0	2 × 0.4	2 × 0.2	1.8	19.7	21.4	800.0	1.83	3.5
3 × 16	7/1.78	1.0	2 × 0.4	2 × 0.2	1.8	22.0	23.7	1050.0	1.15	3.5
3 × 25	7/2.14	1.2	2 × 0.4	2 × 0.2	1.7	24.8	26.5	1465.0	0.727	3.5
3 × 35	7/2.52	1.2	4 × 0.4	2 × 0.2	1.8	27.1	28.8	2149.0	0.524	3.5
3 × 50	10/2.52	1.4	4 × 0.4	2 × 0.2	1.9	29.0	30.7	2453.0	0.387	3.5
3 × 70	14/2.52	1.4	4 × 0.4	2 × 0.2	2.0	32.2	33.9	3116.0	0.268	3.5
3 × 95	19/2.52	1.6	4 × 0.4	2 × 0.5	2.2	37.9	39.6	4053.0	0.193	3.5
3 × 120	24/2.52	1.6	4 × 0.4	2 × 0.5	2.2	39.7	41.4	4930.0	0.153	3.5
3 × 150	30/2.52	1.8	4 × 0.4	2 × 0.5	2.4	44.8	46.5	6075.0	0.124	3.5
3 × 185	37/2.52	2.0	4 × 0.4	2 × 0.5	2.5	48.3	50.0	7299.0	0.0991	3.5
3 × 240	48/2.52	2.2	4 × 0.4	2 × 0.5	2.7	53.6	55.3	9213.0	0.0754	3.5
3 × 300	61/2.52	2.4	4 × 0.4	2 × 0.5	2.9	59.1	60.8	11185.0	0.0601	3.5
3 × 400	61/2.97	2.6	4 × 0.4	2 × 0.5	3.3	72.2	73.9	13330.0	0.0470	3.5
4 × 4	1/2.25	1.0	1.0	2 × 0.2	1.5	16.2	18.4	565.0	4.61	3.5
4 × 6	1/2.76	1.0	1.0	2 × 0.2	1.5	17.4	19.6	685.0	3.08	3.5
4 × 10	7/1.38	1.0	2 × 0.4	2 × 0.2	1.8	21.3	23.0	960.0	1.83	3.5
4 × 16	7/1.78	1.0	2 × 0.4	2 × 0.2	1.8	23.8	25.5	1273.0	1.15	3.5
4 × 25	7/2.14	1.2	2 × 0.4	2 × 0.2	1.8	27.1	28.8	1998.0	0.727	3.5
4 × 35	7/2.52	1.2	2 × 0.4	2 × 0.2	1.9	29.7	31.4	2505.0	0.524	3.5
4 × 50	10/2.52	1.4	4 × 0.4	2 × 0.2	2.0	31.5	33.2	3122.0	0.387	3.5
4 × 70	14/2.52	1.4	4 × 0.4	2 × 0.2	2.0	32.7	34.4	4025.0	0.268	3.5
4 × 95	19/2.52	1.6	4 × 0.4	2 × 0.5	2.2	38.5	40.2	5291.0	0.193	3.5
4 × 120	24/2.52	1.6	4 × 0.4	2 × 0.5	2.3	40.4	42.1	6464.0	0.153	3.5
4 × 150	30/2.52	1.8	4 × 0.4	2 × 0.5	2.4	45.6	47.3	7866.0	0.124	3.5
4 × 185	37/2.52	2.0	4 × 0.4	2 × 0.5	2.5	49.1	50.8	9542.0	0.0991	3.5
4 × 240	48/2.52	2.2	4 × 0.4	2 × 0.5	2.7	54.5	56.2	11916.0	0.0754	3.5
4 × 300	61/2.52	2.4	4 × 0.4	2 × 0.5	2.9	60.2	61.9	14118.0	0.0601	3.5
4 × 400	61/2.97	2.6	4 × 0.4	2 × 0.5	3.4	74.5	76.2	19950.0	0.0470	3.5
5× 10	7/1.38	1.0	2 × 0.4	2 × 0.2	1.8	23.0	24.7	1110.0	1.83	3.5
5 × 16	7/1.78	1.0	2 × 0.4	2 × 0.2	1.8	25.8	27.5	1485.0	1.15	3.5
5 × 25	7/2.14	1.2	2 × 0.4	2 × 0.2	1.9	29.7	31.4	2339.0	0.727	3.5
5 × 35	7/2.52	1.2	2 × 0.4	2 × 0.2	2.0	32.6	34.3	2953.0	0.524	3.5
5× 50	10/2.52	1.4	4 × 0.4	2 × 0.5	2.2	39.2	40.9	3975.0	0.387	3.5
5× 70	14/2.52	1.4	4 × 0.4	2 × 0.5	2.3	43.2	44.9	5125.0	0.268	3.5
5× 95	19/2.52	1.6	4 × 0.4	2 × 0.5	2.5	47.8	49.5	6798.0	0.193	3.5
5 × 120	24/2.52	1.6	4 × 0.4	2 × 0.5	2.6	52.3	54.0	8217.0	0.153	3.5
5 × 150	30/2.52	1.8	4 × 0.4	2 × 0.5	2.8	56.8	58.5	10030.0	0.124	3.5
5 × 185	37/2.52	2.0	4 × 0.4	2 × 0.5	3.0	62.9	64.6	12275.0	0.0991	3.5
5 × 240	48/2.52	2.2	4 × 0.4	2 × 0.5	3.3	72.1	73.8	15077.0	0.0754	3.5
5 × 300	61/2.52	2.4	4 × 0.4	2 × 0.5	3.5	79.1	80.8	18214.0	0.0601	3.5
3 × 10+ 1 × 6	7/1.38+1/2.8	1.0+1.0	2 × 0.4	2 × 0.2	1.8	20.5	22.2	894	1.83	3.5
3 × 16+ 1 × 10	7/1.78+7/1.38	1.0+1.0	2 × 0.4	2 × 0.2	1.8	23.1	24.8	1194	1.15	3.5
3 × 25+ 1 × 16	7/2.14+7/1.78	1.2+1.0	2 × 0.4	2 × 0.2	1.8	26.2	27.9	1668	0.727	3.5
3 × 35+ 1 × 16	7/2.52+7/1.78	1.2+1.0	2 × 0.4	2 × 0.2	1.9	28.1	29.8	2243	0.524	3.5
3 × 50+ 1 × 25	10/2.52+7/2.14	1.4+1.2	4 × 0.4	2 × 0.2	1.9	31.0	32.7	2852	0.387	3.5
3 × 70+ 1 × 35	14/2.52+7/2.52	1.4+1.2	4 × 0.4	2 × 0.2	2.1	34.4	26.1	3657	0.268	3.5
3 × 95+ 1 × 50	19/2.52+10/2.52	1.6+1.4	4 × 0.4	2 × 0.5	2.2	40.2	41.9	4796	0.193	3.5
3 × 120+ 1 × 70	24/2.52+14/2.52	1.6+1.4	4 × 0.4	2 × 0.5	2.3	42.8	44.5	5912	0.153	3.5
3 × 150+ 1 × 70	30/2.52+14/2.52	1.8+1.4	4 × 0.4	2 × 0.5	2.5	47.1	48.8	7025	0.124	3.5
3 × 185+ 1 × 95	37/2.52+19/2.52	2.0+1.6	4 × 0.4	2 × 0.5	2.6	51.1	52.8	8598	0.0991	3.5
3 × 240+ 1 × 120	48/2.52+24/2.52	2.2+1.6	4 × 0.4	2 × 0.5	2.8	56.4	58.1	10631	0.0754	3.5
3 × 300+ 1 × 150	61/2.52+30/2.52	2.4+1.8	4 × 0.4	2 × 0.5	3.0	62.2	63.9	12913	0.0601	3.5
3 × 400+ 1 × 240	61/2.97+37/2.52	2.6+1.8	4 × 0.4	2 × 0.5	3.4	74.2	75.9	15410	0.0470	3.5
3 × 10+ 2 × 6	7/1.38+1/2.8	1.0+1.0	2 × 0.4	2 × 0.2	1.8	21.8	23.5	973	1.83	3.5
3 × 16+ 2 × 10	7/1.78+7/1.38	1.0+1.0	2 × 0.4	2 × 0.2	1.8	24.7	26.4	1323	1.15	3.5
3 × 25+ 2 × 16	7/2.14+7/1.78	1.2+1.0	2 × 0.4	2 × 0.2	1.9	28.2	29.9	2053	0.727	3.5
3 × 35+ 2 × 16	7/2.52+7/1.78	1.2+1.0	2 × 0.4	2 × 0.2	1.9	30.0	31.7	2406	0.524	3.5
3 × 50+ 2 × 25	10/2.52+7/2.14	1.4+1.2	4 × 0.4	2 × 0.2	2.1	35.8	37.5	3371	0.387	3.5
3 × 70+ 2 × 35	14/2.52+7/2.52	1.4+1.2	4 × 0.4	2 × 0.5	2.2	39.9	41.6	4350	0.268	3.5
3 × 95+ 2 × 50	19/2.52+10/2.52	1.6+1.4	4 × 0.4	2 × 0.5	2.4	44.2	45.9	5736	0.193	3.5
3 × 120+ 2 × 70	24/2.52+14/2.52	1.6+1.4	4 × 0.4	2 × 0.5	2.5	49.0	50.7	7126	0.153	3.5
3 × 150+ 2 × 70	30/2.52+14/2.52	1.8+1.4	4 × 0.4	2 × 0.5	2.6	51.5	53.2	8249	0.124	3.5
3 × 185+ 2 × 95	37/2.52+19/2.52	2.0+1.6	4 × 0.4	2 × 0.5	2.8	57.4	59.1	10254	0.0991	3.5
3 × 240+ 2 × 120	48/2.52+24/2.52	2.2+1.6	4 × 0.4	2 × 0.5	3.0	62.8	64.5	12888	0.0754	3.5
3 × 300+ 2 × 150	61/2.52+30/2.52	2.4+1.8	4 × 0.4	2 × 0.5	3.3	70.9	72.6	15483	0.0601	3.5
4 × 10+ 1 × 6	7/1.38+1/2.8	1.0+1.0	2 × 0.4	0.2 × 2	1.8	22.4	24.1		1.83	3.5
4 × 16+ 1 × 10	7/1.78+7/1.38	1.0+1.0	2 × 0.4	0.2 × 2	1.8	25.1	26.8	1482	1.15	3.5
4 × 25+ 1 × 16	7/2.14+7/1.78	1.2+1.0	2 × 0.4	0.2 × 2	1.9	28.9	30.6	2312	0.727	3.5
4 × 35+ 1 × 16	7/2.52+7/1.78	1.2+1.0	2 × 0.4	0.2 × 2	2.0	31.3	33.0	2756	0.524	3.5
4 × 50+ 1 × 25	10/2.52+7/2.14	1.4+1.2	4 × 0.4	0.2 × 2	2.1	35.8	37.5	3680	0.387	3.5
4 × 70+ 1 × 35	14/2.52+7/2.52	1.4+1.2	4 × 0.4	2 × 0.5	2.2	39.9	41.6	4768	0.268	3.5
4 × 95+ 1 × 50	19/2.52+10/2.52	1.6+1.4	4 × 0.4	2 × 0.5	2.4	44.2	45.9	6267	0.193	3.5
4 × 120+ 1 × 70	24/2.52+14/2.52	1.6+1.4	4 × 0.4	2 × 0.5	2.5	49.0	50.7	7698	0.153	3.5
4 × 150+ 1 × 70	30/2.52+14/2.52	1.8+1.4	4 × 0.4	2 × 0.5	2.6	51.5	53.2	6216	0.124	3.5
4 × 185+ 1 × 95	37/2.52+19/2.52	2.0+1.6	4 × 0.4	2 × 0.5	2.8	57.4	59.1	11293	0.0991	3.5
4 × 240+ 1 × 120	48/2.52+24/2.52	2.2+1.6	4 × 0.4	2 × 0.5	3.0	62.8	64.5	14371	0.0754	3.5
4 × 300+ 1 × 150	61/2.52+30/2.52	2.4+1.8	4 × 0.4	2 × 0.5	3.4	75.1	76.8	17449	0.0601	3.5

We are China IEC60228 Underground PVC Insulation Armored Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
