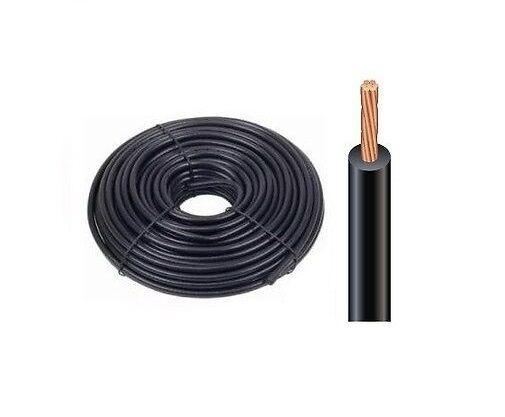

Industrial Solar PV Cable 600V – 1000V Cross Linked Polyolefin Insulation

Industrial Solar PV Cable 600V – 1000V Cross Linked Polyolefin Insulation image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
TUV,ISO,CE,IEC

Place of Origin :
China

MOQ :
3000meter

Price :
US$0.3~5.7 per meter

Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability :
35000Kilometer per Month

Delivery Time :
7 days

Packaging Details :
Rolls

Model name :
PV solar cable

Conductor Type :
Tinned copper

Size :
4mm2 6mm2 10mm2 16mm2

Nos.of core :
Single core

Insulation color :
Any color

Warranty :
2 years

Industrial Solar Panel 600V – 1000V PV Wire Electron Beam Cross Linked Polyolefin Insulation

Application

Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment

Construction

Core Conductor	Tinned annealed copper (stranded core)
Popular sizes	1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm2
Cable conductor	Stranded tinned annealed copper
Insulation	Electron-beam cross-linked Polyolefin(XLPO)
Jacket	XLPO/ PE (black, red)
Other specs	a) Temperature rating: -40C up to +120C
	b) Fire performance: IEC 60332-1, UL1581 VW-1
	c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2
	d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
	e) Voltage suitable: 600-1000V

Advantage:

With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!

About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.

We are China Industrial Solar PV Cable 600V – 1000V Cross Linked Polyolefin Insulation manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Tags: solar cable wire, solar PV cable, solar pv wire
