Insulated Aluminum Branch Earthing Clamp/Ground Clamp J10BD-50-240 to J10DL-50-300 pole accessories

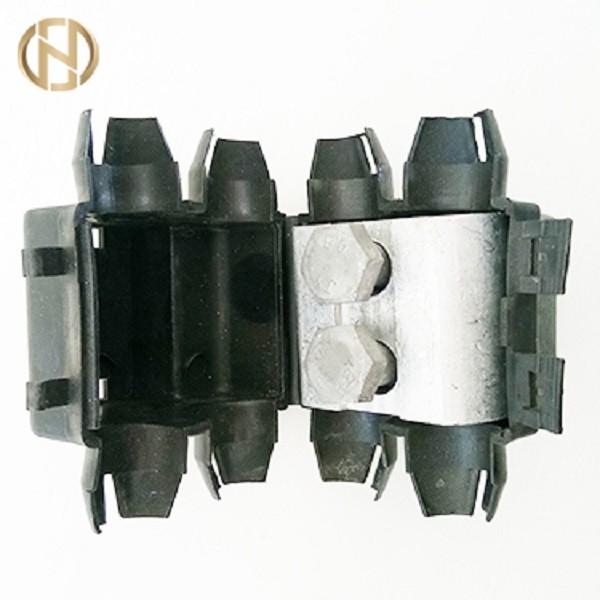

Insulated Aluminum Branch Earthing Clamp/Ground Clamp J10BD-50-240 to J10DL-50-300 pole accessories image
Brand Name :
FUTAO
Model Number :
J10BD-50-240 to J10DL-50-300
Certification :
ISO 9001
Place of Origin :
Jiangsu China
MOQ :
10 pieces
Price :
$1 – $7
Payment Terms :
L/C, T/T
Supply Ability :
6000pcs one month
Delivery Time :
30 workdays
Packaging Details :
Package by the box
Type :
J10BD-50-240 to J10DL-50-300
Material :
Hot dip galvanized steel，Plastic, Aluminium
Operation :
Convenient
Color :
Silver，black，yellow，red
Usage :
Cable appliances
Insulated Aluminum Branch Earthing Clamp/Ground Clamp J10BD-50-240 to
J10DL-50-300 pole accessories
J10DL-50-300 series insulated earthing clamp is suitable for earthing connection on less than or equivalent 10KV overhead insulation cable transmission line as well as discharge connection on high voltage line. The conductor section matched are composed of 50-300mm2. J10BD-50-240 series insulated earthing clamp is equipped with inserted function of branch wire, similar to earthing clamp & parallel groove clamp in usage.
| Type | Applicable Conductor Section (mm) | Wire-Peeled Breadth (mm) | Remark |
| J10BD-50-240 | 50-240 | 80 | Two pieces of earthing branch wire incorporated into one piece of wire |
| J10BD-16-120 | 16-120 | 80 | |
| J10DL-50-300 | 50-300 | 75 | For earthing |
We are China Insulated Aluminum Branch Earthing Clamp/Ground Clamp J10BD-50-240 to J10DL-50-300 pole accessories manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
