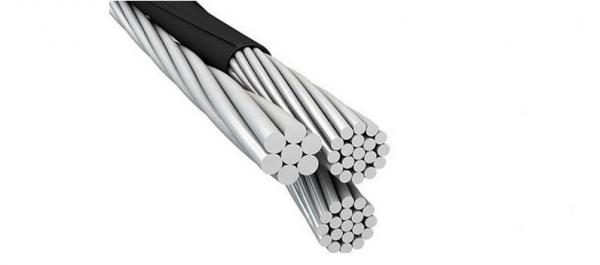

ISO14001 Aerial Bundle Cable LSOH Sheath Triplex Overhead Service Drop Cable

 China ISO14001 Aerial Bundle Cable LSOH Sheath Triplex Overhead Service Drop Cable supplier

ISO14001 Aerial Bundle Cable LSOH Sheath Triplex Overhead Service Drop Cable image

Get a Quote Email to us

Brand Name :
Nuoxing

Model Number :
ABC

Place of Origin :
Hebei, China

MOQ :
100 Meters

Price :
$0.20 – $3.00/Meters

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
10000 Kilometer/Kilometers per Month

Delivery Time :
10-20 days

Packaging Details :
Standard export packing with wooden drum or steel wooden drum

Product Name :
Triplex Service Drop Aerial Bundle Cable

Insulation Material :
XLPE

Type :
Low Votage

Application :
Construction

Conductor Material :
Aluminum

Sheath :
LSOH

Size :
Customizable

Certificate :
ISO9001/ISO14001

Overhead Aluminum Conductor Triplex Service Drop Aerial Bundle Cable

Applications:

Used as overhead cable to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for cross-linked polyethylene (XLPE) insulated conductors.

Specifications:

Triplex service drop cable meets or exceeds the following ASTM specifications:

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

B-231 Aluminum Conductors, Concentric-Lay-Stranded.

B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR).

B-399 Stranded 6201-T81 Aluminum Alloy Conductors.

B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

triplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Construction:

The aluminum conductor is concentric stranded and compressed 1350-H19 aluminum. Insulated with polyethylene or crosslinked polyethylene (XLPE).
Neutral messengers were concentric stranded 6201, AAC or ACSR.

Product parameter:

Product name Aerial Bundle Cable
Certifications ISO9001/ISO14001 /OHSAS18001/CCC
Standard GB, IEC, BS, ASTM
Rated voltage 0.6/1KV
Test voltage 4 KV
Phase Conductor Stranded Aluminum Wires
Insulation Cross-linked polyethylene (XLPE)
Neutral AAC AAAC ASCR
Laying temperature min. -20
Operating temperature -30 to +80
OEM Available

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.

Aerial Bundled Cable

We are China ISO14001 Aerial Bundle Cable LSOH Sheath Triplex Overhead Service Drop Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
