JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller

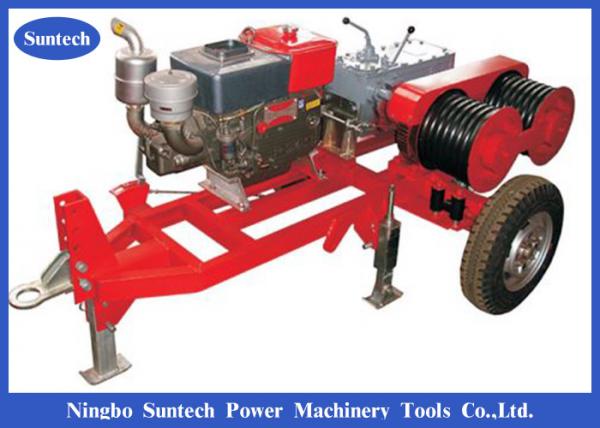

JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller image
Brand Name :
Suntech
Model Number :
9152
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
800 sets per month
Delivery Time :
3-5 workdays
Packaging Details :
Exported Plywood Case
Name :
Diesel Engine Cable Winch Puller
Type :
Double Drum
Power :
9 HP
Traction Speed :
3600 M/MIN
Moderate speed :
19.2/11.8 M/MIN
Drum bottom of groove diamete :
Φ230
Diesel Engine Powered Cable Winch Puller For For Tower Erection 9 HP
Cable Winch Puller with compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes
Cable Winch Puller Specifications:
| Item number | 09151 | 09152 | 09162 | |
| Model | JJCS-30 | JJQS-30 | JJCS-50 | |
| Engine | Model |
R175A Diesel Engine |
GX270 Gasoline Engine |
S195G Diesel Engine |
| (HP)Power | 6 | 9 | 9 | |
| (RPM)Speed | 2600 | 3600 | 2000 | |
|
(KN) Pull force/ (M/MIN) speed |
Slow | 30/5.7 | 30/7.43 | 50/3.1,40/9.6 |
| Moderate | 18.9/9.1 | 19.2/11.8 | 45/7.1,17/22.3 | |
| Fast | 7.6/22.7 | 7.2/31.4 | 33/11.3,10/35.6 | |
| Reverse | -/6.5 | -/8.4 | -/7.35 | |
|
(MM) Drum bottom of groove diamete |
Φ230 | Φ230 | Φ300 | |
| (MM)outline size | 1000x670x600 | 1000x670x600 | 2230x1210x1135 | |
| (KG)Weight | 305 | 270 | 700 | |
Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
Cable Winch Puller Pictures
We are China JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
