KPLC 600/1000V S/C 10 sq mm AL PVC Insulated Single Phase Concentric Aluminum Cable

 China KPLC 600/1000V S/C 10 sq mm AL PVC Insulated Single Phase Concentric Aluminum Cable supplier

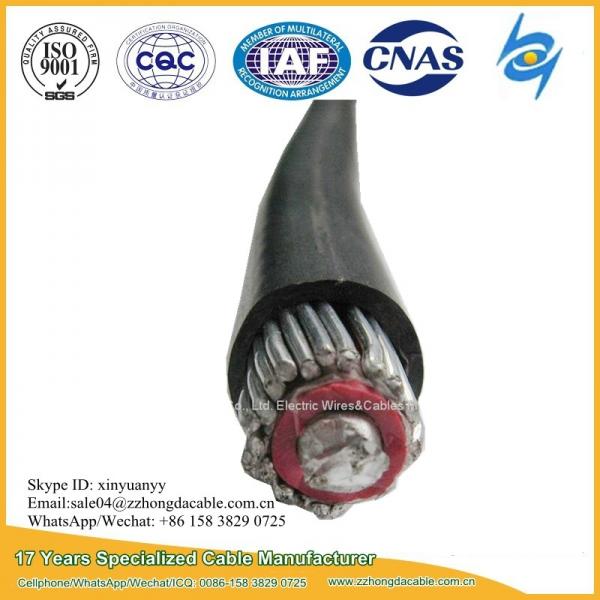

KPLC 600/1000V S/C 10 sq mm AL PVC Insulated Single Phase Concentric Aluminum Cable image

Get a Quote Email to us

Brand Name :
OEM

Model Number :
Concentric Cable

Certification :
CCC, ISO

Place of Origin :
China

MOQ :
1000m

Price :
0.1-16.2USD/m

Payment Terms :
T/T, L/C, Western Union, MoneyGram

Supply Ability :
30km/day Concentric Cable

Delivery Time :
7-10 working days

Packaging Details :
1000m per Wooden Drum

Specification :
6mm2 10mm2 16mm2

Range of Application :
Underground

Material :
Copper

HS Code :
8544492100

KPLC 600/1000V S/C 10 sq mm AL PVC Insulated Single Phase Concentric Aluminum Cable
Please contact me as follows:
Vivian Yuan
Henan (Zhengzhou) Hongda Cable Co., Ltd.
Address: No.3 Changping Road, East Development Zone, Zhandian, Jiaozuo 454950, China.
Tel: 86-0371-60975619
Fax: 86-0371-60975616
Mobile: 86-15838290725 (WhatsApp / Wechat)
Skype: xinyuanyy
Facebook: xin.yuan.73307
Website: www.zzhongdacable.com

0.6/1kv Split Concentric Cables APPLIICATION

  • These cables are used when the power supply has separate PE & N conductors and are only combined as PEN near the power source. The Protective Earth and Neutral are not connected after the building entry point.
Aluminium split concentric Copper split concentric
Conductor Solid aluminium (Class 1) Stranded copper (Class 2)
Insulation XLPE PVC Type TI1
Neutral conductor Plain copper wires (Class 1) covered with blue polymeric insulation Plain copper wires (Class 1) covered with blue polymeric insulation
Earth continuity conductor Plain copper conductor (Class 1) Plain copper conductor (Class 1)
String separator Non-hygroscopic string separator Non-hygroscopic string separator
Outersheath PVC TM1 or LSZH PVC TM1

Aluminium Split Concentric BS 7870 PVC Cable

NO. OF CORES

NOMINAL CROSS SECTIONAL AREA

mm2

NOMINAL OVERALL DIAMETER

mm

NOMINAL WEIGHT

kg/km

1 25 15 490
1 35 16 610
3 25 23.5 830
3 35 26 1030

Copper Split Concentric BS 7870 PVC Cable

NO. OF CORES

NOMINAL CROSS SECTIONAL AREA

mm2

NOMINAL OVERALL DIAMETER

mm

NOMINAL WEIGHT

kg/km

1 4 10 190
1 16 14 530
1 25 16 710
3 35 28.5 1900

Product Description

Standard: LV and MV polymeric insulated cables for use by distribution and generation utilities. Specification for distribution cables of rated voltage 0.6/1 kV. XLPE insulated combined neutral and earth copper wire concentric cables with copper or aluminium conductors

Conductors: Stranded Annealed Copper

Insulation: XLPE/PE/PVC(Cross-linked Polyethylene)
Concentric layer: Single layer of plain annealed copper wires

Sheath/Jacket: XLPE /PVC(Cross-linked Polyethylene)

Voltage: 0.6/1kv.

Operating temperature: Maximum 90°C, minimum -30°C

Common Used Colours:

For insulation: White, Black and Red.

For external jacket: Black

PACKAGING:

Wooden Drum

Or length to the client's requirement.

Available Size: MM2, AWG or MCM

MM2 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2
AWG or MCM

2 x 8, 2 x 6, 2 x 4, 2 x 2, 2 x 1/0 , 2 x 2/0, 2×8, 2×10

3 x 8, 3 x 6, 3 x 4, 3 x 2

3 x 1/0, 3 x 2/0, 4 x 8, 4 x 6, 4 x 4, 4 x 2

250MCM, 300MCM and so on

Application

Power cables for energy supply are used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test data. Overall, where increased electrical and also mechanical protection are required. Those cables are installed in open air, in underground, in water, indoors and in cable ducts. The concentric conductor (C) is allowed to use as PE-, PEN-conductor or as shield. due to the typical construction of concentric conductors it is possible to obtain many more cable joints, without cutting any conductor. In that way the operating reliability is guaranteed.

We are China KPLC 600/1000V S/C 10 sq mm AL PVC Insulated Single Phase Concentric Aluminum Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
