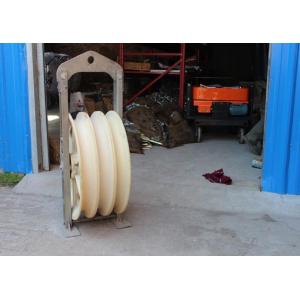

Large Diameter Conductor Stringing Blocks Bundled Half Lined Steel Wire Rope image
10T MC Nylon Sheave Large Diameter Bundled Conductor Stringing Block
Large Diameter Bundled Conductor Stringing Block Introduction:
10T MC Nylon Sheave Large Diameter Bundled Conductor Stringing Block
Our 916mm OPGW stringing pulley block, sometimes it names nylon Sheave Pulley block, or conductor Nylon Pulley Block, which has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting wire can possess the largest cross section of up to 720 square millimeters, and the dimension of cable stringing pulley block (outside diameter*root diameter*sheave width) is Φ916× Φ 800× 110 (mm).
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Feature |
| 10151 | SHDN916 | 1 | 50 | 51 | MC nylon sheave |
| 10152 | SHSQN916 | 3 | 75 | 120 | |
| 10153 | SHWQN916 | 5 | 150 | 200 |
This 1040mm bundled conductor stringing pulley block has the conductor diameter of no more than LGJ1120. That is to say, the aluminum of this conducting wire can possess the maximum cross section of 1120 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ1040×Φ900× 125 (mm).
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10165 | SHDN1040 | 1 | 50 | 60 | MC nylon sheave |
| 10166 | SHSQN1040 | 3 | 105 | 200 | Middle: MC nylon sheave Conductor: rubber coated nylon sheave |
| 10167 | SHWQN1040 | 5 | 180 | 330 |
| Item number | Model | Number of sheave | Rated load (kN) | Weight (kg) | Feature |
| 10168-1 | SHDN1160 | 1 | 60 | 65 | Middle :MC nylon sheave |
| 10168-2 | SHSQNK1160 | 3 | 120 | 220 | Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave |
Overhead transmission block is the pay off pulley block, this pulley block with three wheels, also can be one ~five wheels, they are useful in power construction.
1. Maximum suitable conductor ACSR1250
2. Dimension of block for conductor (outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).
3. Dimension of block for Steel Wire Rope (outside diameter× root diameter × sheave width) Φ1160×Φ1000×130(mm).
4. The rubber lined MC nylon sheave is half lined.
10T MC Nylon Sheave Large Diameter Bundled Conductor Stringing Block
